Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
45120-010030-7700/20-G-12CABLE ASSY 20 POS 12" PINOUT-G |
4,781 |
|
Datasheet | 451 | Bulk | Discontinued at Digi-Key | Socket to Socket | 20 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 1.00' (304.80mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
45120-010030-7700/20-A-24CABLE ASSY 20 POS 24" PINOUT-A |
4,144 |
|
Datasheet | 451 | Bulk | Discontinued at Digi-Key | Socket to Cable | 20 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 2.00' (609.60mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
45120-010030-7700/20-B-24CABLE ASSY 20 POS 24" PINOUT-B |
1,376 |
|
Datasheet | 451 | Bulk | Discontinued at Digi-Key | Socket to Cable | 20 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 2.00' (609.60mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
45120-010030-7700/20-C-24CABLE ASSY 20 POS 24" PINOUT-C |
1,447 |
|
Datasheet | 451 | Bulk | Discontinued at Digi-Key | Socket to Socket | 20 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 2.00' (609.60mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

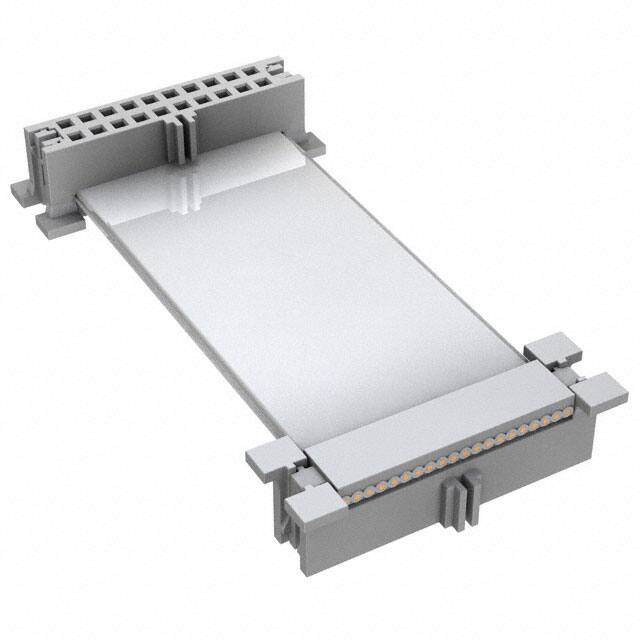

45120-010030-7700/20-D-24CABLE ASSY 20 POS 24" PINOUT-D |
2,111 |
|
Datasheet | 451 | Bulk | Discontinued at Digi-Key | Socket to Socket, Reversed | 20 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 2.00' (609.60mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
45120-010030-7700/20-E-24CABLE ASSY 20 POS 24" PINOUT-E |
1,215 |
|
Datasheet | 451 | Bulk | Discontinued at Digi-Key | Socket to Socket, Reversed | 20 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 2.00' (609.60mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
45120-010030-7700/20-F-24CABLE ASSY 20 POS 24" PINOUT-F |
2,741 |
|
Datasheet | 451 | Bulk | Discontinued at Digi-Key | Socket to Socket, Reversed | 20 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 2.00' (609.60mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
45120-010030-7700/20-G-24CABLE ASSY 20 POS 24" PINOUT-G |
1,063 |
|
Datasheet | 451 | Bulk | Discontinued at Digi-Key | Socket to Socket | 20 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 2.00' (609.60mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
45120-010030-7700/20-H-24CABLE ASSY 20 POS 24" PINOUT-H |
4,089 |
|
Datasheet | 451 | Bulk | Discontinued at Digi-Key | Socket to Socket | 20 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 2.00' (609.60mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
45120-010030-7700/20-A-36CABLE ASSY 20 POS 36" PINOUT-A |
4,259 |
|
Datasheet | 451 | Bulk | Discontinued at Digi-Key | Socket to Cable | 20 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
