Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M3DDK-2020KIDC CABLE - MKR20K/MC20F/MKR20K |
3,234 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.67' (508.00mm) | Polarizing Key, Strain Relief | Multiple, Twisted Pair (Flat) | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3BBK-2020KIDC CABLE - MSR20K/MC20F/MSR20K |
4,784 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.67' (508.00mm) | Strain Relief | Multiple, Twisted Pair (Flat) | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M1RXK-2036JIDC CABLE - MPR20K/MC20G/X |
3,798 |
|
Datasheet | - | Bulk | Active | Plug to Cable | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

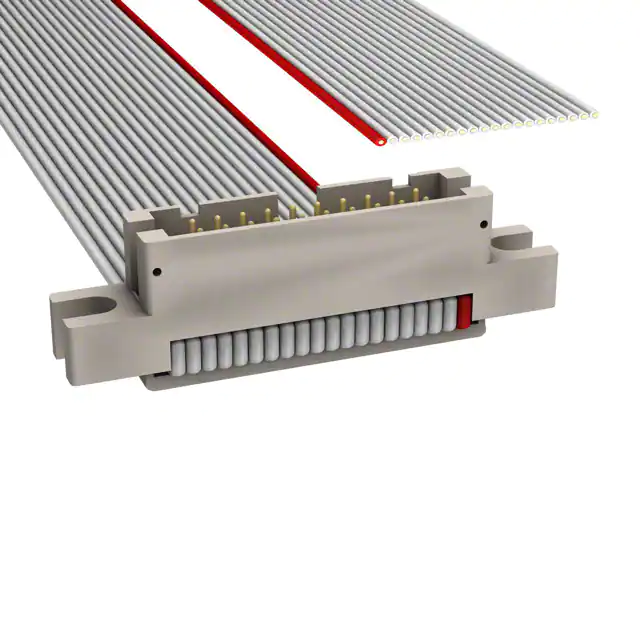

M1YXK-2036JIDC CABLE - MPD20K/MC20G/X |
3,467 |
|
Datasheet | - | Bulk | Active | Plug to Cable | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Flange, Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3CCK-3006JIDC CABLE - MKC30K/MC34G/MKC30K |
4,233 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3AAK-3006JIDC CABLE - MSC30K/MC34G/MSC30K |
4,022 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3AAK-1640KIDC CABLE - MSC16K/MC16F/MSC16K |
2,175 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.34' (1.02m) | - | Multiple, Twisted Pair (Flat) | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3CCK-1640KIDC CABLE - MKC16K/MC16F/MKC16K |
2,666 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.34' (1.02m) | Polarizing Key | Multiple, Twisted Pair (Flat) | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

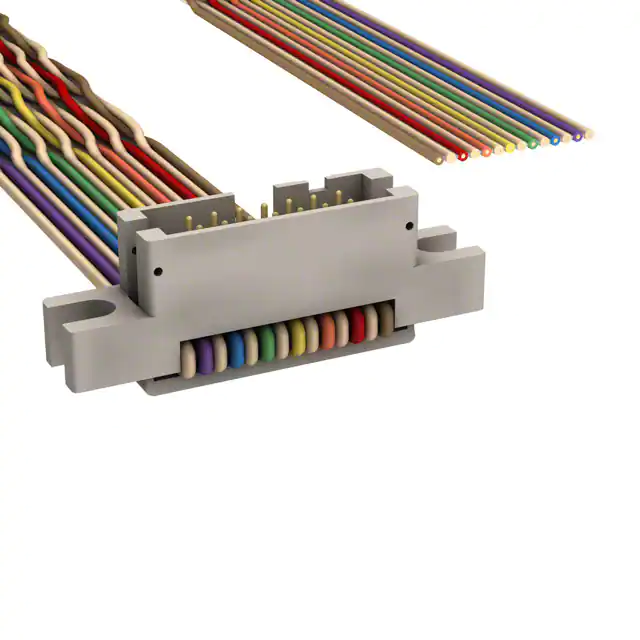

M1YXK-1440KIDC CABLE - MPD14K/MC14F/X |
3,903 |
|
Datasheet | - | Bulk | Active | Plug to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.34' (1.02m) | Flange, Polarizing Key, Strain Relief | Multiple, Twisted Pair (Flat) | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M1RXK-1440KIDC CABLE - MPR14K/MC14F/X |
3,633 |
|
Datasheet | - | Bulk | Active | Plug to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.34' (1.02m) | Polarizing Key, Strain Relief | Multiple, Twisted Pair (Flat) | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
