Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2160101023SUPER SABER RR 600MM 2CKT SN |
174 |
|
Datasheet | Super Sabre 216010 | Bag | Active | Socket to Socket | 2 | 1 | 0.295" (7.50mm) | - | 1.97' (600.00mm) | - | Black, Individual | Unshielded | - | Crimp | Silver | - |
|
M50-911204220+20 IDC SKT TO SKT 300 LONG |
104 |
|
Datasheet | Archer M50 | Bulk | Active | Socket to Socket | 40 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 0.984' (300.00mm, 11.81") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
FFSD-20-D-04.00-01-N.050 X .050 C.L. FEMALE IDC ASSE |
317 |
|
Datasheet | Tiger Eye™ FFSD | Bulk | Active | Socket to Socket | 40 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 0.333' (101.60mm, 4.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
FFSD-10-D-10.00-01-N.050 X .050 C.L. FEMALE IDC ASSY |
4,992 |
|
Datasheet | Tiger Eye™ FFSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 0.833' (254.00mm, 10.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
TCSD-15-D-12.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,010 |
|
Datasheet | Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 30 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.00' (304.80mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
2451350805MINIFIT JR 8 CIRCUIT BLACK 500M |
744 |
|
Datasheet | Mini-Fit Jr 245135 | Bag | Active | Socket to Socket | 8 | 2 | - | - | 1.64' (500.00mm) | - | Black, Individual (Round) | Unshielded | - | Crimp | Tin | - |
|
FFSD-17-D-12.00-01-NCABLE ASSEM .05" 34POS 12" |
201 |
|
Datasheet | Tiger Eye™ FFSD | Bulk | Active | Socket to Socket | 34 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 1.00' (304.80mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
2451350610MINIFIT JR 6 CIRCUIT BLACK 1M |
1,776 |
|
Datasheet | Mini-Fit Jr 245135 | Bag | Active | Socket to Socket | 6 | 2 | - | - | 3.28' (1.00m) | - | Black, Individual (Round) | Unshielded | - | Crimp | Tin | - |
|
|
81787-100B-01-DCBL ASSY PLUG - PLUG 10POS 300MM |
104 |
|
Datasheet | CABLINE®-UY | Bag | Active | Plug to Plug | 10 | 1 | 0.014" (0.35mm) | - | 0.984' (300.00mm, 11.81") | - | Blue, Individual | Shielded | - | Solder | Gold | Flash |
|

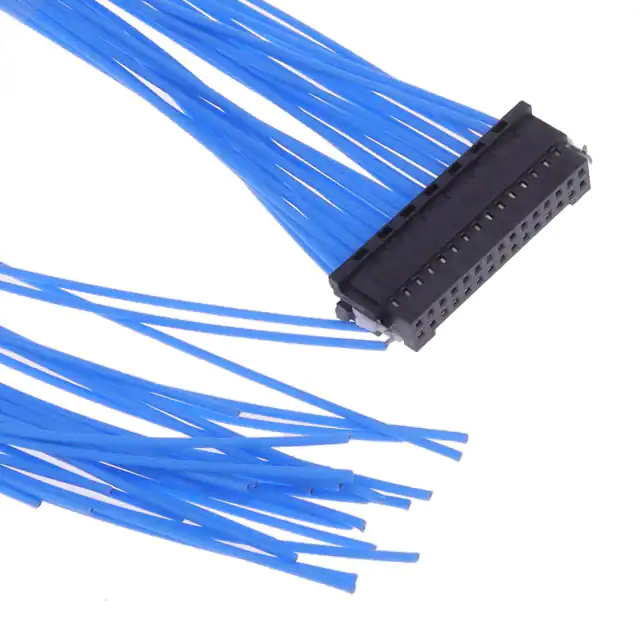

S2SDT-15-24-L-12.00-SRCABLE ASSY SOCKET 30POS 24AWG |
149 |
|
Datasheet | Tiger Eye™ S2SDT | Bulk | Active | Socket to Individual Wire Leads | 30 | 2 | 0.079" (2.00mm) | - | 1.00' (304.80mm) | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
FFSD-17-D-06.00-01-N.050 X .050 C.L. FEMALE IDC ASSY |
128 |
|
Datasheet | Tiger Eye™ FFSD | Bulk | Active | Socket to Socket | 34 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|

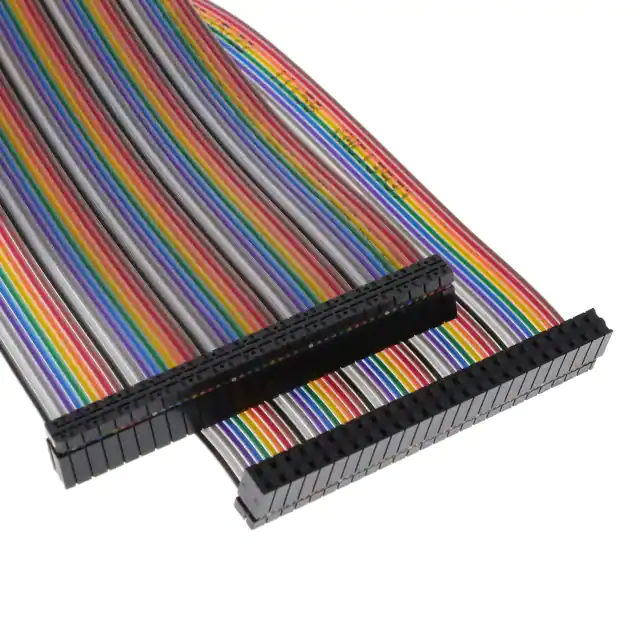

IDSD-25-D-12.00INSULATION DISPLACEMENT TERMINAL |
209 |
|
Datasheet | IDSD | Bulk | Active | Socket to Socket | 50 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.00' (304.80mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
2451320810MICROFIT 8 CIRCUIT BLACK 1M OM |
743 |
|
Datasheet | Micro-Fit 3.0 245132 | Bag | Active | Socket to Socket | 8 | 2 | 0.118" (3.00mm) | - | 3.28' (1.00m) | Latch Lock | Black, Individual (Round) | Unshielded | - | Crimp | Tin | 40.0µin (1.02µm) |
|

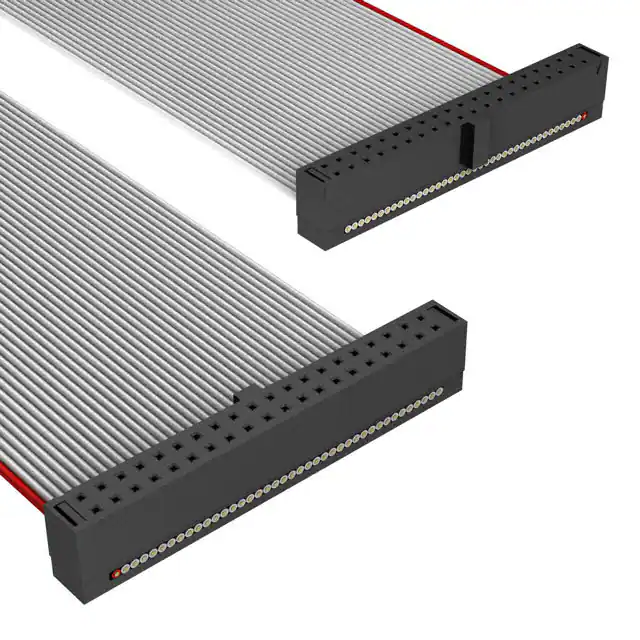

TCSD-20-D-12.00-01-NCABLE ASSEM 2MM 40POS F-F 12" |
1,010 |
|
Datasheet | Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 40 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.00' (304.80mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
FFSD-25-D-14.00-01-NCABLE ASSY .05" 50POS F-F 14" |
395 |
|
Datasheet | Tiger Eye™ FFSD | Bulk | Active | Socket to Socket | 50 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 1.17' (355.60mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
FFTP-10-D-18.00-01-N.050 X .050 C/L TWISTED PAIR FEM |
104 |
|
Datasheet | Tiger Eye™ FFTP | Bulk | Active | Socket to Socket | 20 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 1.50' (457.20mm) | Polarizing Key | Multiple, Twisted Pair (Round) | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
FFTP-25-D-08.77-01-N.050 X .050 C/L TWISTED PAIR FEM |
475 |
|
Datasheet | Tiger Eye™ FFTP | Bulk | Active | Socket to Socket | 50 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 0.731' (222.76mm, 8.77") | Polarizing Key | Multiple, Twisted Pair (Round) | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
FFSD-25-D-03.00-01-N.050 X .050 C.L. FEMALE IDC ASSY |
186 |
|
Datasheet | Tiger Eye™ FFSD | Bulk | Active | Socket to Socket | 50 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 0.250' (76.20mm, 3.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
2451321020MICROFIT 10 CIRCUIT BLACK 2M OVE |
305 |
|
Datasheet | Micro-Fit 3.0 245132 | Bag | Active | Socket to Socket | 10 | 2 | 0.118" (3.00mm) | - | 6.56' (2.00m) | Latch Lock | Black, Individual (Round) | Unshielded | - | Crimp | Tin | 40.0µin (1.02µm) |
|
G125-FC10605L0-0150F1.25MM F/F 6POS 26AWG 150MM |
347 |
|
Datasheet | Gecko G125 | Bag | Active | Socket to Socket | 6 | 2 | 0.049" (1.25mm) | - | 0.492' (150.00mm, 5.91") | Latch Holder, Polarizing Key | White, Individual | Unshielded | - | Crimp | Gold | - |
