Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

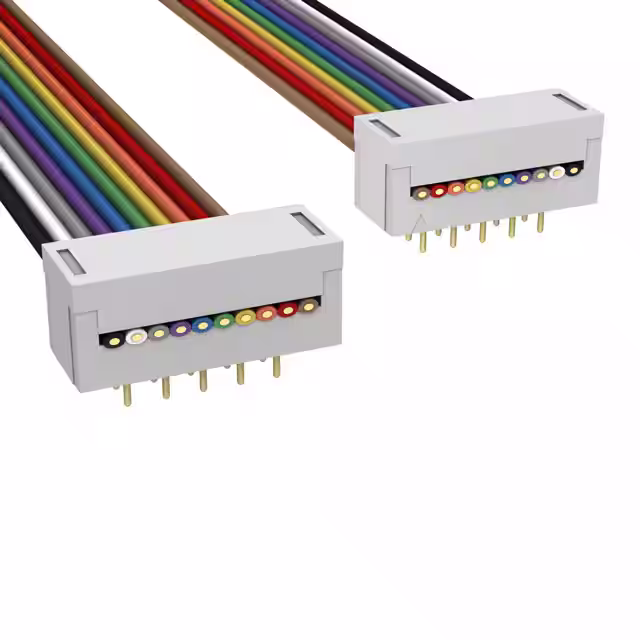

H6MMH-1006MDIP CABLE - HDM10H/AE10M/HDM10H |
2,690 |
|
Datasheet | - | Bulk | Active | DIP to DIP | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|

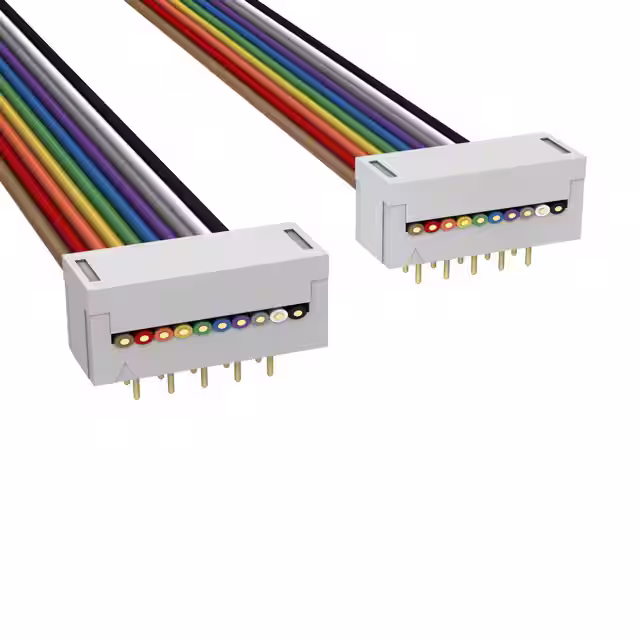

H8MMH-1006MDIP CABLE - HDM10H/AE10M/HDM10H |
2,343 |
|
Datasheet | - | Bulk | Active | DIP to DIP, Reversed | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
H3AAS-4006GIDC CABLE - HSC40S/AE40G/HSC40S |
2,642 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Socket to Socket | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|

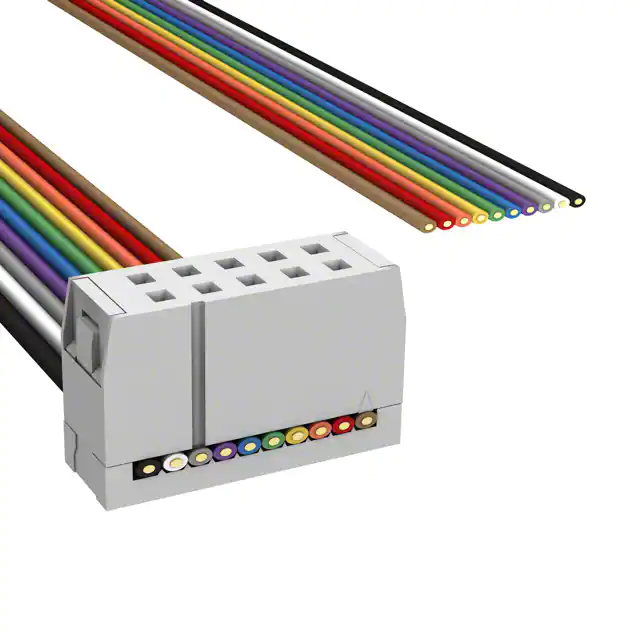

H1AXS-1036MIDC CBL - HHSC10S/AE10M/X |
4,989 |
|
Datasheet | - | Bulk | Active | Socket to Cable | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|

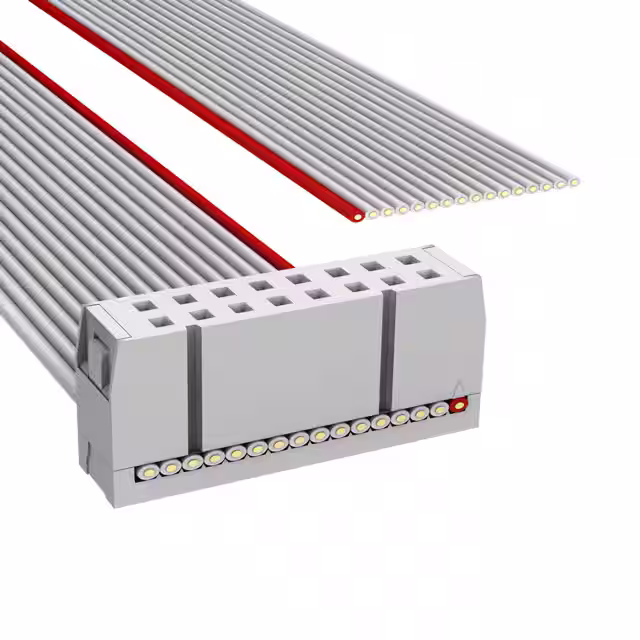

H1AXS-1636GIDC CBL - HHSC16S/AE16G/X |
4,398 |
|
Datasheet | - | Bulk | Active | Socket to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
H1CXS-1036MIDC CBL - HHKC10S/AE10M/X |
2,022 |
|
Datasheet | - | Bulk | Active | Socket to Cable | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
H2MXS-1636GDIP CBL - HHDM16S/AE16G/X |
3,918 |
|
Datasheet | - | Bulk | Active | DIP to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
|
H2MXS-2618GDIP CABLE - HDM26S/AE26G/X |
1,868 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | DIP to Cable | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
H3AAH-3006MIDC CBL - HHSC30H/AE30M/HHSC30H |
4,617 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
H2MXS-2406MDIP CABLE - HDM24S/AE24M/X |
3,441 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | DIP to Cable | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
