Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H3KKH-1018GIDC CBL - HHPK10H/AE10G/HHPK10H |
1,925 |
|
Datasheet | - | Bulk | Active | Plug to Plug | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

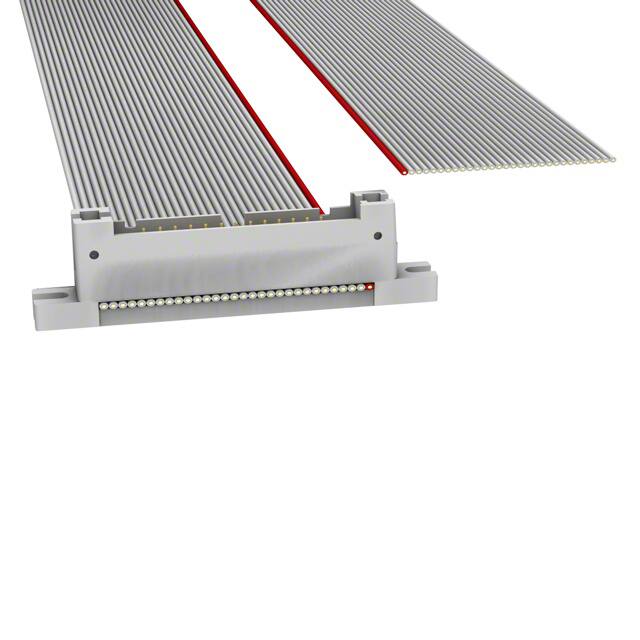

H1WXH-3036GIDC CBL - HHPL30H/AE30G/X |
1,332 |
|
Datasheet | - | Bulk | Active | Plug to Cable | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Flange, Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

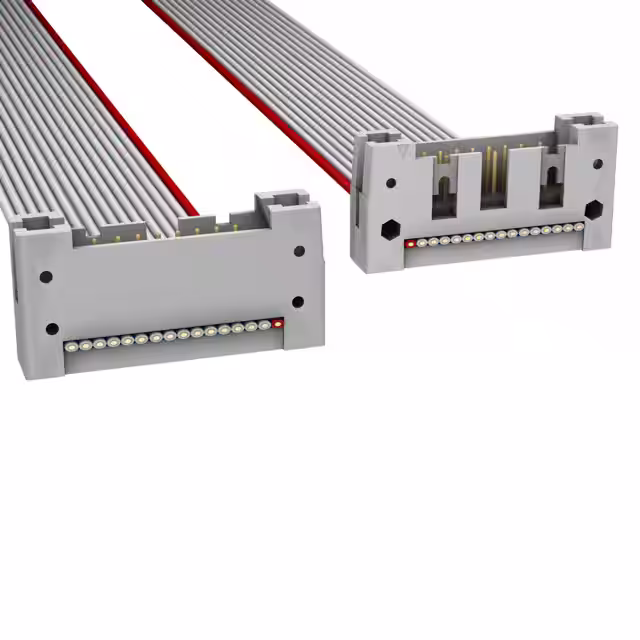

H3KKH-1636GIDC CBL - HHPK16H/AE16G/HHPK16H |
3,050 |
|
Datasheet | - | Bulk | Active | Plug to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

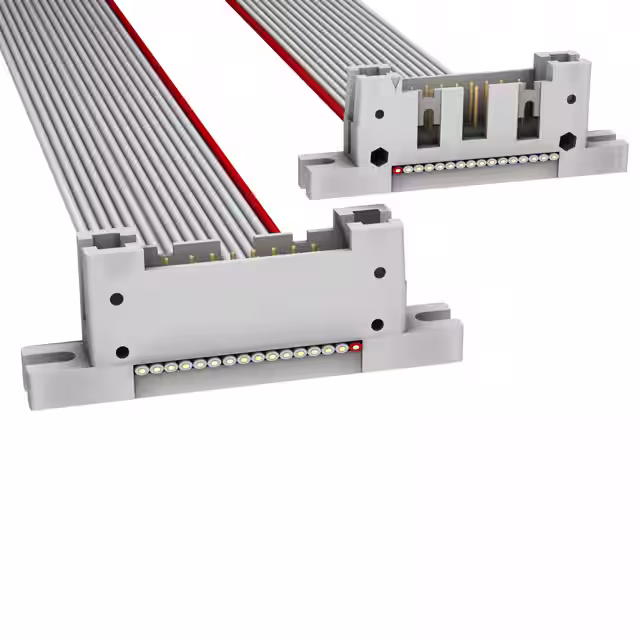

H3WWH-1636GIDC CBL - HHPL16H/AE16G/HHPL16H |
4,573 |
|
Datasheet | - | Bulk | Active | Plug to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Flange, Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H6PPS-4018MDIP CABLE - HDP40S/AE40M/HDP40S |
2,905 |
|
Datasheet | - | Bulk | Active | DIP to DIP | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.6"), Board In | IDC | Tin | - |
|
|
H8PPS-4018MDIP CABLE - HDP40S/AE40M/HDP40S |
2,023 |
|
Datasheet | - | Bulk | Active | DIP to DIP, Reversed | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.6"), Board In | IDC | Tin | - |
|
|
H0PPS-4018MDIP CABLE - HDP40S/AE40M/HDP40S |
4,402 |
|
Datasheet | - | Bulk | Active | DIP to DIP, Reversed | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.6"), Board In | IDC | Tin | - |
|
H3BBH-6406MIDC CBL - HHSR64H/AE64M/HHSR64H |
2,941 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 64 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H1BXH-3036MIDC CABLE - HSR30H/AE30M/X |
4,971 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Socket to Cable | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
H3DDH-3036MIDC CABLE- HHKR30H/AE30M/HHKR30H |
4,303 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
