Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H1AXS-2436MIDC CABLE - HSC24S/AE24M/X |
2,559 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Socket to Cable | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|

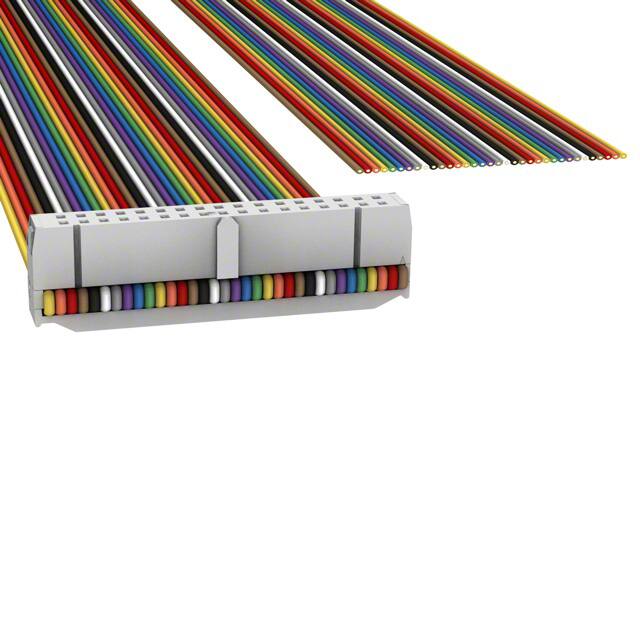

H1DXS-3436MIDC CBL - HHKR34S/AE34M/X |
4,067 |
|
Datasheet | - | Bulk | Active | Socket to Cable | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|

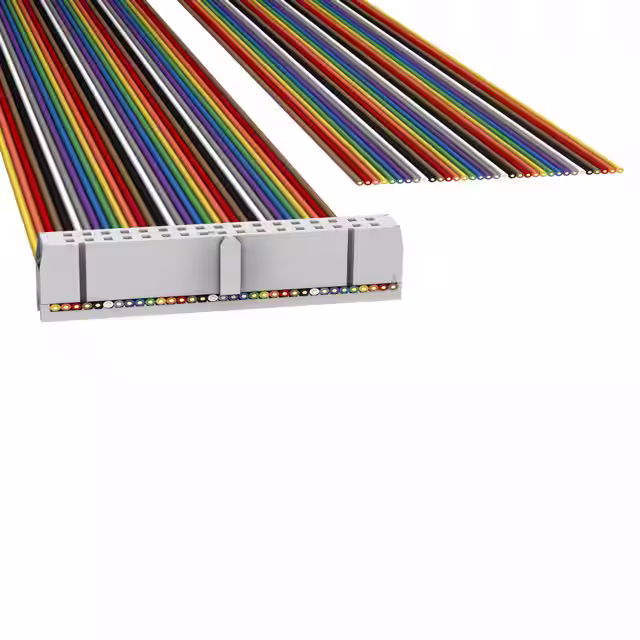

H1CXH-3436MIDC CBL - HHKC34H/AE34M/X |
1,420 |
|
Datasheet | - | Bulk | Active | Socket to Cable | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
H3BKH-3418GIDC CBL - HHSR34H/AE34G/HHPK34H |
2,393 |
|
Datasheet | - | Bulk | Active | Socket to Plug | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Strain Relief (Socket); Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3BWH-3418GIDC CBL - HHSR34H/AE34G/HHPL34H |
2,703 |
|
Datasheet | - | Bulk | Active | Socket to Plug | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Strain Relief (Socket); Flange, Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3BWH-4018GIDC CBL - HHSR40H/AE40G/HHPL40H |
1,336 |
|
Datasheet | - | Bulk | Active | Socket to Plug | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Strain Relief (Socket); Flange, Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3DKH-3418GIDC CBL - HHKR34H/AE34G/HHPK34H |
3,806 |
|
Datasheet | - | Bulk | Active | Socket to Plug | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief (Socket); Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3DWH-3418GIDC CBL - HHKR34H/AE34G/HHPL34H |
2,111 |
|
Datasheet | - | Bulk | Active | Socket to Plug | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief (Socket); Flange, Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

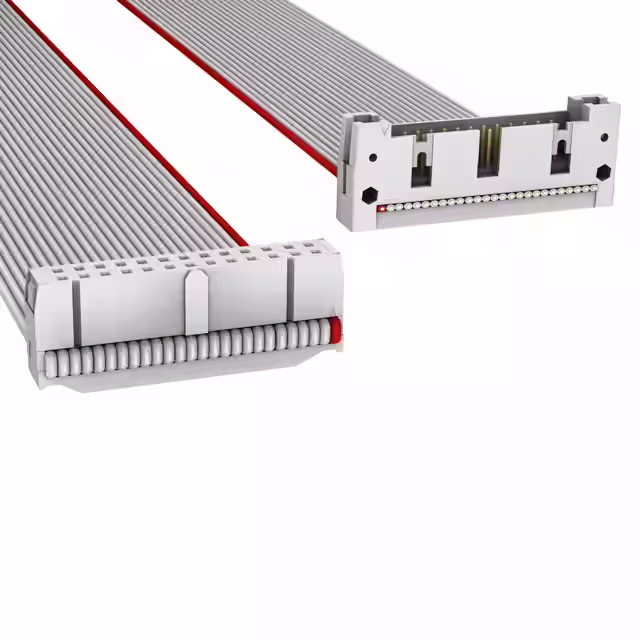

H3DKH-2636GIDC CBL - HHKR26H/AE26G/HHPK26H |
2,145 |
|
Datasheet | - | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief (Socket); Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

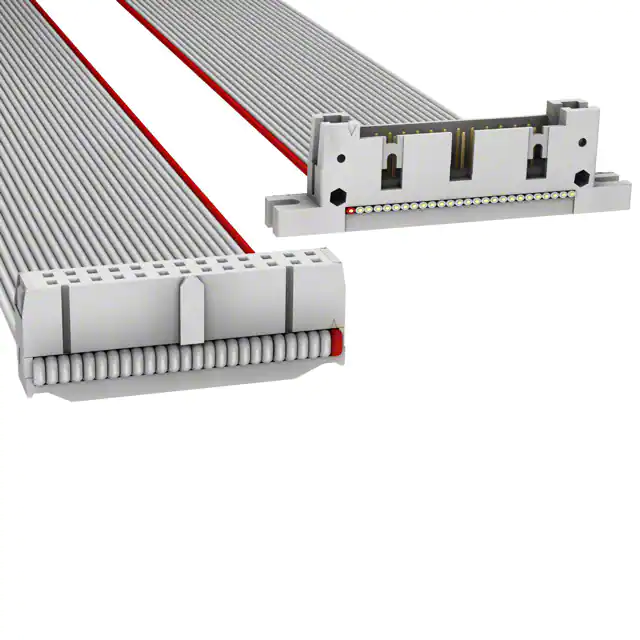

H3DWH-2636GIDC CBL - HHKR26H/AE26G/HHPL26H |
3,630 |
|
Datasheet | - | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief (Socket); Flange, Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
