Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A3DDG-1036GIDC CABLE-AKR10G/ AE10G / AKR10G |
4,425 |
|
Datasheet | - | Bulk | Obsolete | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
A2MXT-2018MADM20T/AE20M/X |
2,316 |
|
Datasheet | - | Bulk | Obsolete | DIP to Cable | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin-Lead | 100.0µin (2.54µm) |
|
|
A3AAA-2018GIDC CABLE-ASN20A/ AE20G / ASN20A |
2,229 |
|
Datasheet | - | Bulk | Obsolete | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
A3BBA-2018GIDC CABLE-ASS20A/ AE20G / ASS20A |
4,174 |
|
Datasheet | - | Bulk | Obsolete | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
A3AAA-2006MIDC CABLE- ASN20A/ AE20M / ASN20 |
3,441 |
|
Datasheet | - | Bulk | Obsolete | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
A3BBA-2006MIDC CABLE- ASS20A/ AE20M / ASS20 |
2,173 |
|
Datasheet | - | Bulk | Obsolete | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
A2MXT-4006GADM40T/AE40G/X |
1,623 |
|
Datasheet | - | Bulk | Obsolete | DIP to Cable | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin-Lead | 100.0µin (2.54µm) |
|
A1CXB-1036GIDC CABLE- AKC10B/AE10G/X |
4,386 |
|
Datasheet | - | Bulk | Active | Socket to Cable | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

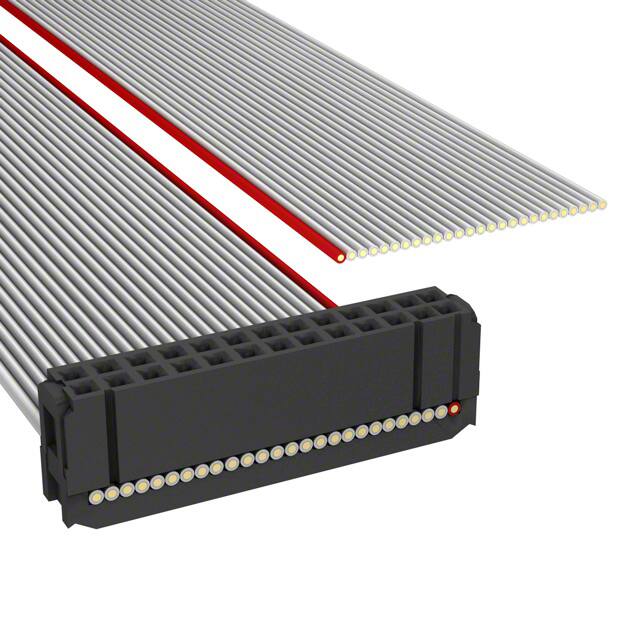

A1AXG-2636GIDC CABLE-ASC26G/ AE26G / X |
1,261 |
|
Datasheet | - | Bulk | Obsolete | Socket to Cable | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
A1BXA-1436MIDC CABLE- ASS14A/ AE14M / X |
4,250 |
|
Datasheet | - | Bulk | Obsolete | Socket to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
