Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A3DDH-1406MIDC CABLE - AKR14H/AE14M/AKR14H |
1,042 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

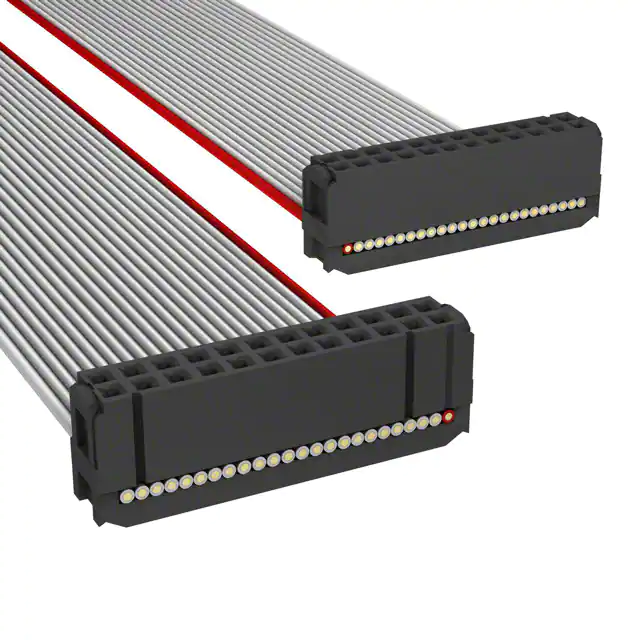

A3AAH-2406GIDC CABLE - ASC24H/AE24G/ASC24H |
3,501 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
A8MMS-1418MADM14S/AE14M/ADM14S |
1,762 |
|
Datasheet | - | Bulk | Active | DIP to DIP, Reversed | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|

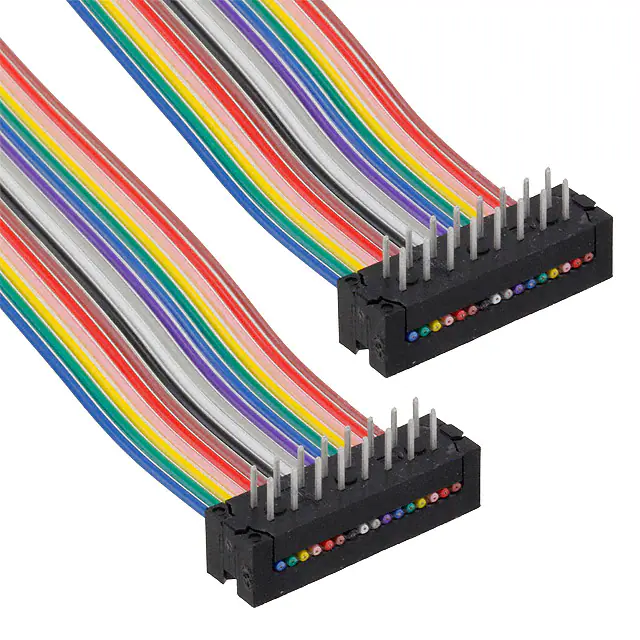

A8MMS-1618MADM16S/AE16M/ADM16S |
2,100 |
|
Datasheet | - | Bulk | Active | DIP to DIP, Reversed | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|

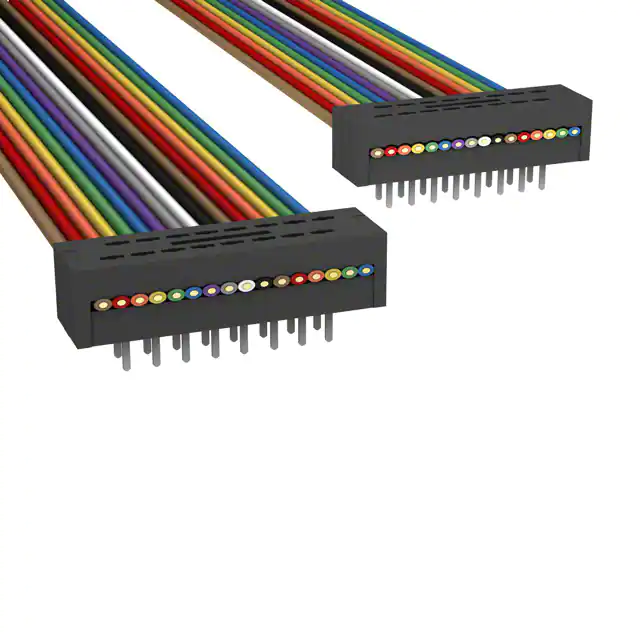

A6MMS-1618MIDC CABLE - ADM16S/AE16M/ADM16S |
3,891 |
|
Datasheet | - | Bulk | Active | DIP to DIP | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|
2354173-1CA ELCON MICRO 2X8 |
4,527 |
|
Datasheet | ELCON Micro | Bag | Active | Socket to Socket | 16 (Power) | 2 | 0.118" (3.00mm) | - | 0.328' (100.00mm, 3.94") | Latch Lock | Black, Individual | Unshielded | - | Crimp | Tin | - |
|
A3CCB-3006MIDC CABLE- AKC30B/AE30M/AKC30B |
3,169 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
1-765362-4CABLE PLUG & SIG MOD 22AWG 72" |
2,229 |
|
Datasheet | Ampower | Bag | Active | Plug to Individual Wire Leads | 8 | 2 | 0.100" (2.54mm) | - | 6.00' (1.83m) | - | Multiple, Individual | Unshielded | - | Crimp | - | - |
|

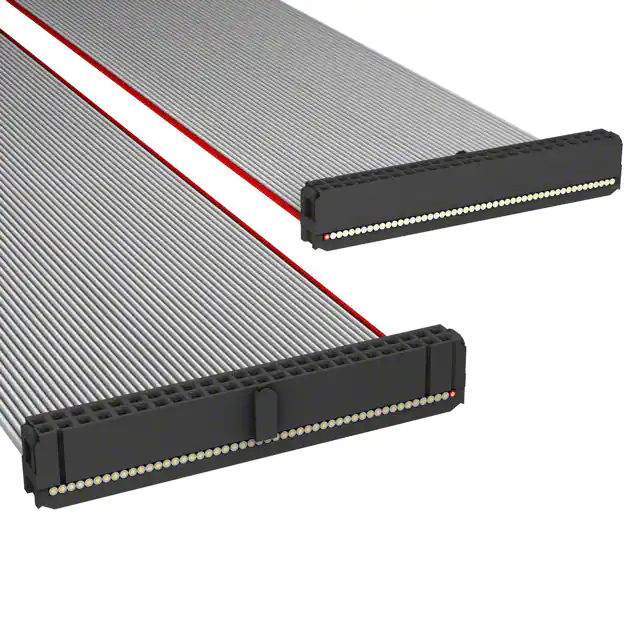

A3CCB-5018GIDC CABLE- AKC50B/AE50G/AKC50B |
3,497 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 50 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
1587902-1PLUG PIG TAIL ASSY, HV, HVA280 2 |
1,174 |
|
- |
- | Bulk | Obsolete | Plug to Individual Wire Leads | 2 | 1 | - | - | 3.28' (1.00m) | - | - | Shielded | - | Crimp | - | - |
