Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A8MMS-1636GADM16S/AE16G/ADM16S |
1,100 |
|
Datasheet | - | Bulk | Active | DIP to DIP, Reversed | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|
A6MMS-4006GIDC CABLE - ADM40S/AE40G/ADM40S |
2,645 |
|
Datasheet | - | Bulk | Active | DIP to DIP | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|
|
A8MMS-4006GADM40S/AE40G/ADM40S |
1,480 |
|
Datasheet | - | Bulk | Active | DIP to DIP, Reversed | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|

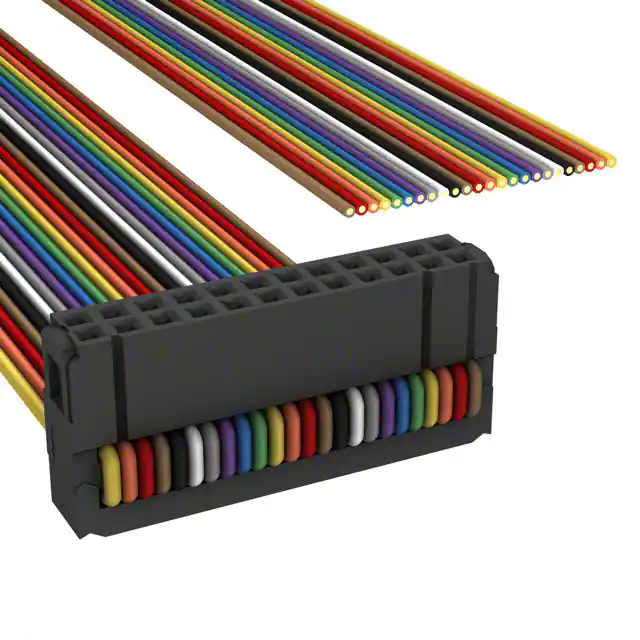

A1BXB-2436MIDC CABLE- ASR24B/AE24M/X |
2,467 |
|
Datasheet | - | Bulk | Active | Socket to Cable | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
A1BXB-4036GIDC CABLE- ASR40B/AE40G/X |
2,896 |
|
Datasheet | - | Bulk | Active | Socket to Cable | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
A2MXT-6418GADM64T/AE64G/X |
4,174 |
|
Datasheet | - | Bulk | Obsolete | DIP to Cable | 64 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin-Lead | 100.0µin (2.54µm) |
|
|
A3CKA-1618MIDC CABLE- AKN16A/ AE16M / APK16 |
3,903 |
|
Datasheet | - | Bulk | Obsolete | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
A3CCB-3006GIDC CABLE- AKC30B/AE30G/AKC30B |
3,693 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
A2MXS-2436MADM24S/AE24M/X |
2,215 |
|
Datasheet | - | Bulk | Active | DIP to Cable | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|
|
A1DXG-5036GIDC CABLE-AKR50G/ AE50G / X |
2,811 |
|
Datasheet | - | Bulk | Obsolete | Socket to Cable | 50 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
