Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A3AKA-1636GIDC CABLE - ASN16A/AE16G/APK16A |
3,691 |
|
Datasheet | - | Bulk | Obsolete | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
A3CKA-1618GIDC CABLE - AKN16A/AE16G/APK16A |
3,260 |
|
Datasheet | - | Bulk | Obsolete | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
A3BBG-3006MIDC CABLE- ASR30G/ AE34M / ASR30 |
2,336 |
|
Datasheet | - | Bulk | Obsolete | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
A3AAH-2618MIDC CABLE - ASC26H/AE26M/ASC26H |
1,648 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
A3CCH-2618MIDC CABLE - AKC26H/AE26M/AKC26H |
4,233 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

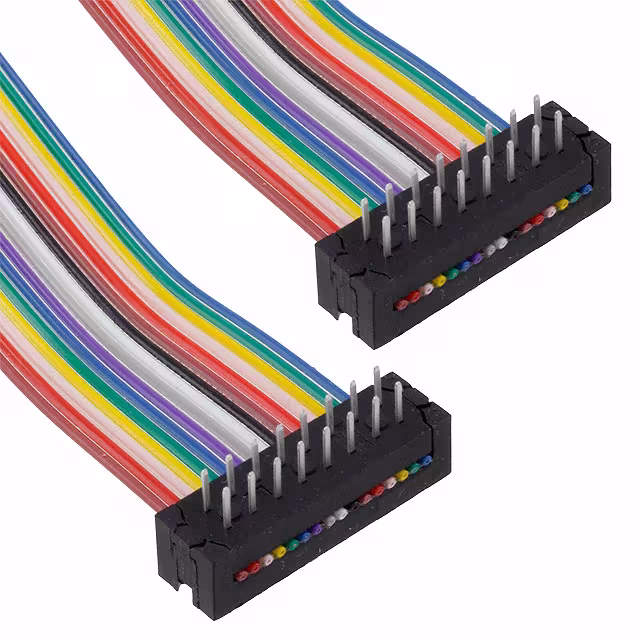

A6MMS-1606MIDC CABLE - ADM16S/AE16M/ADM16S |
3,220 |
|
Datasheet | - | Bulk | Active | DIP to DIP | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|
A8MMS-1606MADM16S/AE16M/ADM16S |
2,403 |
|
Datasheet | - | Bulk | Active | DIP to DIP, Reversed | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|
|
A3CKA-1606MIDC CABLE- AKN16A/ AE16M / APK16 |
3,338 |
|
Datasheet | - | Bulk | Obsolete | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
A1AXH-2436MIDC CABLE - ASC24H/AE24M/X |
3,604 |
|
Datasheet | - | Bulk | Active | Socket to Cable | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
A1CXH-2436MIDC CABLE - AKC24H/AE24M/X |
3,009 |
|
Datasheet | - | Bulk | Active | Socket to Cable | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
