Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2262061084MICRO-FIT3.0 R-R 8CKT 600MM DISC |
1,272 |
|
- |
Micro-Fit 3.0 226206 | Bulk | Active | Socket to Socket | 8 | 1 | 0.118" (3.00mm) | - | 1.97' (600.00mm) | - | Black, Individual | Unshielded | - | Crimp | Tin | 40.0µin (1.02µm) |
|
2153252101MINIFIT JR DR R-R 10 CIRCUIT 150 |
3,823 |
|
Datasheet | Mini-Fit Jr 215327 | Bag | Active | Socket to Socket | 10 | 2 | 0.165" (4.19mm) | - | 0.492' (150.00mm, 5.91") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
0511100650-10-A-6-Z6 CIRC CABLE ASSY 10" Z |
3,337 |
|
Datasheet | Milli-Grid 51110 | Bulk | Active | Socket to Socket | 6 | 2 | 0.079" (2.00mm) | - | 0.833' (254.00mm, 10.00") | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 15.0µin (0.38µm) |
|
|
2153251102MINIFIT JR DR R-R 10 CIRCUIT 300 |
3,225 |
|
Datasheet | Mini-Fit Jr 215325 | Bag | Active | Socket to Socket | 10 | 2 | 0.165" (4.19mm) | - | 0.984' (300.00mm, 11.81") | - | Black, Individual | Unshielded | - | Crimp | Tin | 35.0µin (0.89µm) |
|
2162921043STANDARD .093 4 CIRCUIT P TO P 6 |
3,610 |
|
Datasheet | Standard .093" 216292 | Bag | Active | Socket to Socket | 4 | 1 | 0.264" (6.70mm) | - | 1.97' (600.00mm) | - | Black, Individual | Unshielded | - | Crimp | Tin | 20.0µin (0.51µm) |
|
|
2196581143CGRID III R-R 14CKT 300MM DISC S |
3,820 |
|
Datasheet | C-Grid III 219658 | Bulk | Active | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | - | 0.984' (300.00mm, 11.81") | - | Black, Individual | Unshielded | - | Crimp | Tin | - |
|
|
0369231801IGRID 18 CIRCUIT 100MM |
4,471 |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
2153262083MINIFIT JR DR R-S 8 CIRCUIT 600M |
4,962 |
|
Datasheet | Mini-Fit Jr 215327 | Bag | Active | Socket to Cable | 8 | 2 | 0.165" (4.19mm) | - | 1.97' (600.00mm) | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
2162871042MX150 P-P DR 4CKT 300MM SN SEALE |
2,155 |
|
Datasheet | MX150 216287 | Bag | Active | Plug to Plug | 4 | 2 | 0.138" (3.50mm) | - | 0.984' (300.00mm, 11.81") | Locking Ramp | Black, Individual | - | - | Crimp | Tin | - |
|

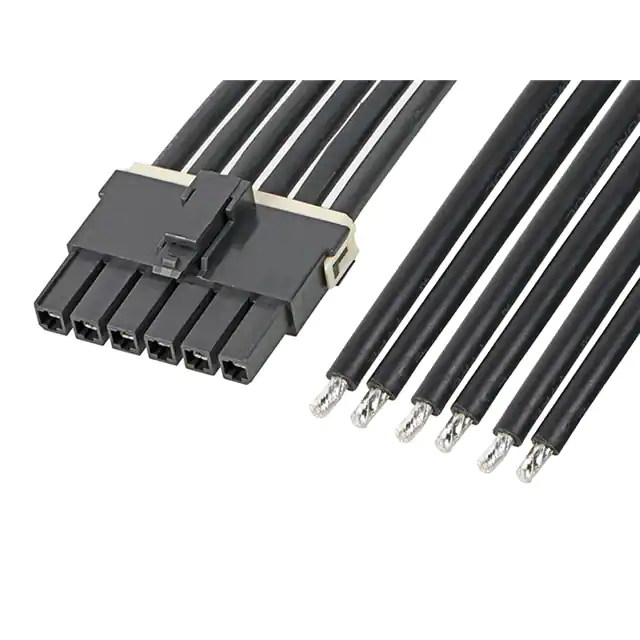

2164011062MEGAFIT SR R-S 6 CKT 300 MM CABL |
3,520 |
|
Datasheet | Mega-Fit | Bulk | Active | Socket to Cable | 6 | 1 | 0.224" (5.70mm) | - | 0.984' (300.00mm, 11.81") | Latch Lock | Black, Individual | Unshielded | - | Crimp | Tin | 40.0µin (1.02µm) |
