Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

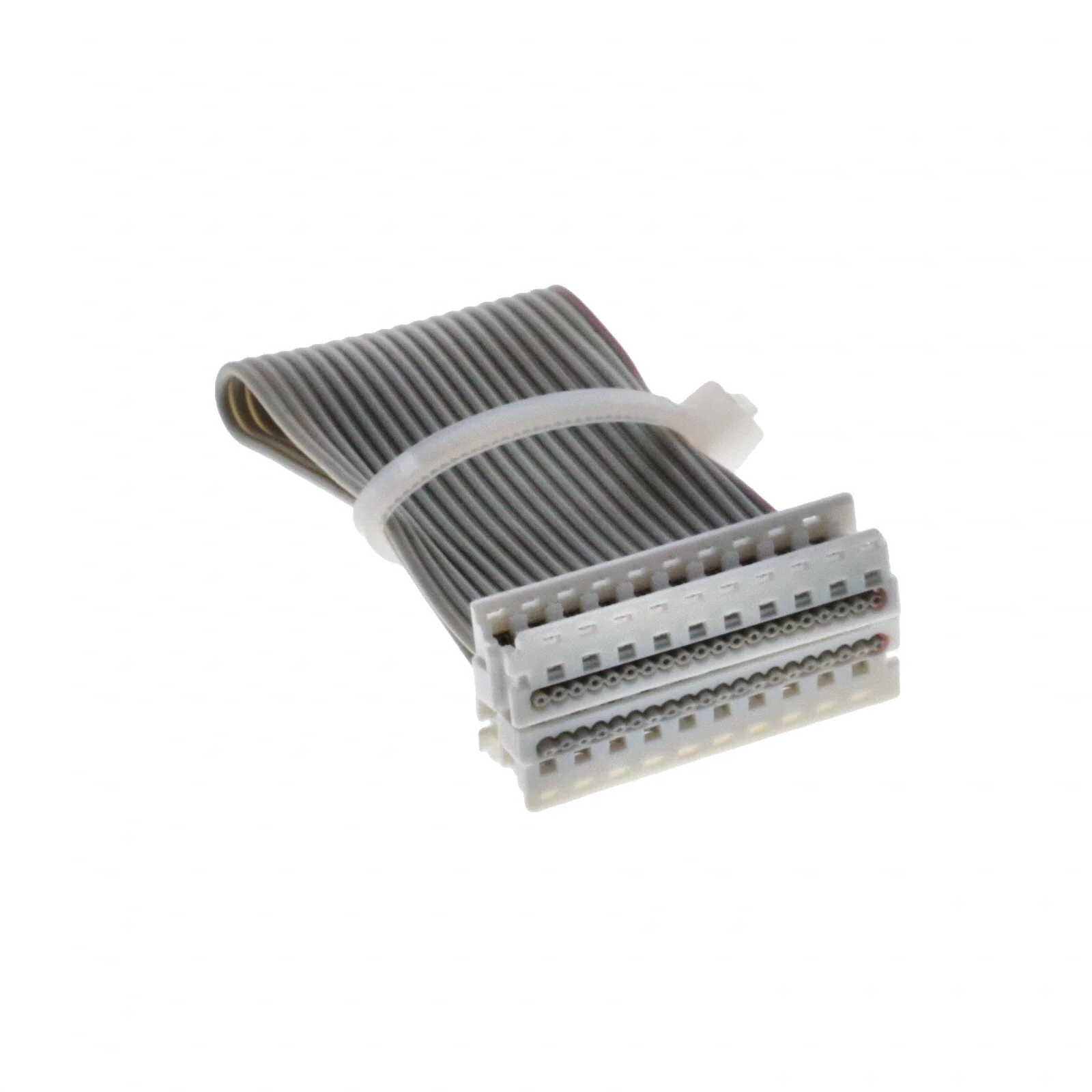

092315201020CKT PICOFLEX 100MM LONG |
1,085 |
|
Datasheet | Picoflex 92315 | Bag | Active | Socket to Socket | 20 | 1 | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.328' (100.00mm, 3.94") | - | Gray, Ribbon | Unshielded | - | IDC | Tin | 80.0µin (2.03µm) |
|
2147551041MICRO-FIT3.0 R-R 4 CIRCUIT 150MM |
267 |
|
Datasheet | Micro-Fit 3.0 214755 | Bag | Active | Socket to Socket | 4 | 2 | 0.118" (3.00mm) | - | 0.492' (150.00mm, 5.91") | - | Black, Individual | Unshielded | - | Crimp | Tin | 40.0µin (1.02µm) |
|
2153271023MINIFIT JR DR P-P 2 CIRCUIT 600M |
732 |
|
Datasheet | Mini-Fit Jr 215325 | Bag | Active | Plug to Plug | 2 | 2 | 0.165" (4.19mm) | - | 1.97' (600.00mm) | - | Black, Individual | Unshielded | - | Crimp | Tin | 100.0µin (2.54µm) |
|
1451320400MICRO-FIT TPA-TO-MICRO-FIT TPA O |
217 |
|
Datasheet | Micro-Fit 3.0 145132 | Bag | Active | Socket to Socket | 4 | 1 | 0.118" (3.00mm) | - | 0.246' (75.00mm, 2.95") | Latch Lock | Black, Individual | Unshielded | - | Crimp | Tin | 40.0µin (1.02µm) |
|
2177971063KK 2.54 SR R-S 6CKT 600MM DISC S |
2,438 |
|
Datasheet | KK254, 217797 | Bag | Active | Socket to Individual Wire Leads | 6 | 1 | 0.100" (2.54mm) | - | 1.97' (600.00mm) | - | Black, Individual | Unshielded | - | Crimp | Tin | 100.0µin (2.54µm) |
|
2147581062MICRO-FIT3.0 P-S 6 CIRCUIT 300MM |
1,112 |
|
Datasheet | Micro-Fit 3.0 214758 | Bag | Active | Plug to Individual Wire Leads | 6 | 2 | 0.118" (3.00mm) | - | 0.984' (300.00mm, 11.81") | - | Black, Individual | Unshielded | - | Crimp | Tin | 40.0µin (1.02µm) |
|
0151370203MINI-LOCK-TO-MINI-LOCK OFF-THE-S |
125 |
|
Datasheet | Mini-Lock 15137 | Bag | Active | Socket to Socket | 2 | 1 | 0.098" (2.50mm) | - | 0.984' (300.00mm, 11.81") | Friction Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Tin | 35.4µin (0.90µm) |
|
2153281042MINIFIT JR DR P-S 4 CIRCUIT 300M |
1,235 |
|
Datasheet | Mini-Fit Jr 215327 | Bag | Active | Plug to Cable | 4 | 2 | 0.165" (4.19mm) | - | 0.984' (300.00mm, 11.81") | - | Black, Individual | Unshielded | - | Crimp | Tin | 100.0µin (2.54µm) |
|
2153281061MINIFIT JR DR P-S 6 CIRCUIT 150M |
895 |
|
Datasheet | Mini-Fit Jr 215327 | Bag | Active | Plug to Cable | 6 | 2 | 0.165" (4.19mm) | - | 0.492' (150.00mm, 5.91") | - | Black, Individual | Unshielded | - | Crimp | Tin | 100.0µin (2.54µm) |
|
0151330506PICO-CLASP 5 CIRCUIT 600MM |
1,832 |
|
Datasheet | Pico-Clasp 15133 | Bag | Active | Socket to Socket | 5 | 1 | - | 0.039" (1.00mm) | 1.97' (600.00mm) | - | Black, Individual | - | - | Crimp | Tin | 39.4µin (1.00µm) |
