Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2153221043MINIFIT JR SR M-M 4 CIRCUIT 600M |
2,158 |
|
Datasheet | Mini-Fit Jr 215322 | Bag | Active | Plug to Plug | 4 | 1 | 0.165" (4.19mm) | - | 1.97' (600.00mm) | Latch Lock | Black, Individual | Unshielded | - | Crimp | Tin | 100.0µin (2.54µm) |
|
2153201062MINIFIT JR SR R-R 6 CIRCUIT 300M |
4,934 |
|
Datasheet | Mini-Fit Jr 215320 | Bag | Active | Socket to Socket | 6 | 1 | 0.165" (4.19mm) | - | 0.984' (300.00mm, 11.81") | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Tin | 35.0µin (0.89µm) |
|
2183101022MINI-FIT SIGMA 2CKT R-R 3 |
100 |
|
Datasheet | Mini-Fit Sigma 218310 | Bag | Active | Socket to Socket | 2 | 2 | 0.165" (4.19mm) | - | 0.984' (300.00mm, 11.81") | - | Black, Individual | Unshielded | - | Crimp | Tin | 98.4µin (2.50µm) |
|
2183221102DURA-CLIK ISL R-R 10CKT 3 |
3,964 |
|
Datasheet | DuraClik 218322 | Bag | Active | Socket to Socket | 10 | 1 | 0.079" (2.00mm) | - | 0.984' (300.00mm, 11.81") | Latch Holder | Black, Individual | Unshielded | - | Crimp | Tin | - |
|

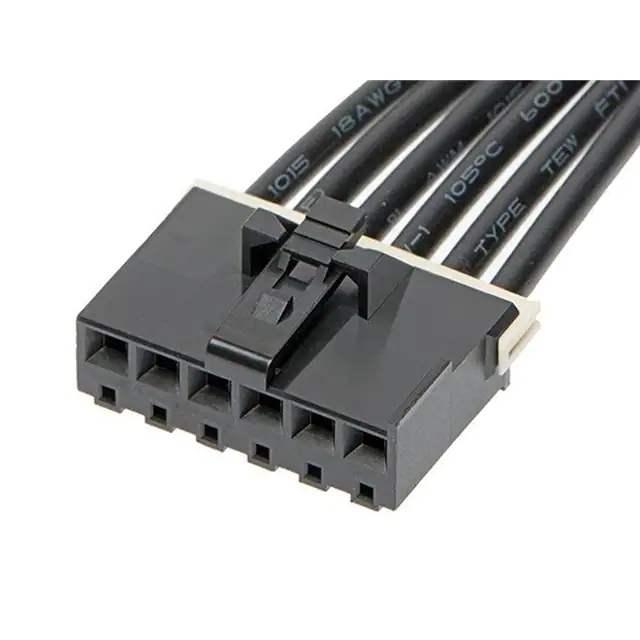

0369210603L1NK 396 6 CIRCUIT 300MM |
3,033 |
|
Datasheet | L1nk 396 36921 | Bag | Active | Socket to Socket | 6 | 1 | 0.156" (3.96mm) | - | 0.984' (300.00mm, 11.81") | Latch Lock | Black, Individual | Unshielded | - | Crimp | Tin | 200.0µin (5.08µm) |
|
2153202043MINIFIT JR SR R-R 4 CIRCUIT 600M |
3,937 |
|
Datasheet | Mini-Fit Jr 215320 | Bag | Active | Socket to Socket | 4 | 1 | 0.165" (4.19mm) | - | 1.97' (600.00mm) | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
2162831033MX150 P-S SR 3CKT 600MM SN SEALE |
2,482 |
|
Datasheet | MX150 216283 | Bag | Active | Plug to Individual Wire Leads | 3 | 1 | 0.138" (3.50mm) | - | 1.97' (600.00mm) | - | Black | - | - | Crimp | Tin | - |
|
2153231053MINIFIT JR SR M-S 5 CIRCUIT 600M |
2,443 |
|
Datasheet | Mini-Fit Jr 215323 | Bag | Active | Plug to Individual Wire Leads | 5 | 1 | 0.165" (4.19mm) | - | 1.97' (600.00mm) | Latch Lock | Black, Individual | Unshielded | - | Crimp | Tin | 100.0µin (2.54µm) |
|
2163311083EDGE LOCK R-S 8CKT 300MM SN |
3,717 |
|
Datasheet | Edgelock 216331 | Bag | Active | Socket to Individual Wire Leads | 8 | 1 | 0.079" (2.00mm) | - | 0.984' (300.00mm, 11.81") | - | Black, Individual (Round) | Unshielded | - | Crimp | Tin | 39.4µin (1.00µm) |
|
2162861042MX150 R-S DR 4CKT 300MM SN SEALE |
2,353 |
|
Datasheet | MX150 216286 | Bag | Active | Socket to Individual Wire Leads | 4 | 2 | 0.138" (3.50mm) | - | 0.984' (300.00mm, 11.81") | - | Black | - | - | Crimp | Tin | - |
