Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CABLE-PH04CABLE JST PHR-04 AWG 24, LENGTH |
2,378 |
|
Datasheet | PHR | Bulk | Active | Plug to Individual Wire Leads | 4 | 1 | 0.079" (2.00mm) | - | 0.656' (200.00mm, 7.87") | Detent Lock | Multiple, Individual | Unshielded | - | Crimp | - | - |
|

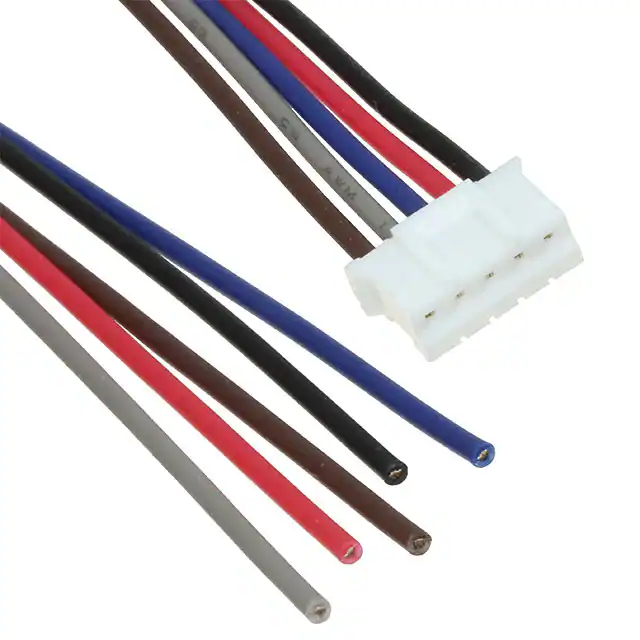

CABLE-PH05CABLE JST PHR-05 AWG 24 200MM |
304 |
|
Datasheet | PHR | Bulk | Active | Plug to Individual Wire Leads | 5 | 1 | 0.079" (2.00mm) | - | 0.656' (200.00mm, 7.87") | Detent Lock | Multiple, Individual | Unshielded | - | Crimp | - | - |
|
CABLE-EH03CABLE JST EHR-03 AWG 24, LENGTH |
342 |
|
Datasheet | EHR | Bulk | Active | Socket to Individual Wire Leads | 3 | 1 | 0.098" (2.50mm) | - | 0.656' (200.00mm, 7.87") | - | Multiple, Individual | Unshielded | - | Crimp | - | - |
|
CABLE-PH06CABLE JST PHR-06 AWG 24, LENGTH |
375 |
|
Datasheet | PHR | Bulk | Active | Socket to Individual Wire Leads | 6 | 1 | 0.079" (2.00mm) | - | 0.656' (200.00mm, 7.87") | Detent Lock | Multiple, Individual | Unshielded | - | Crimp | - | - |
|

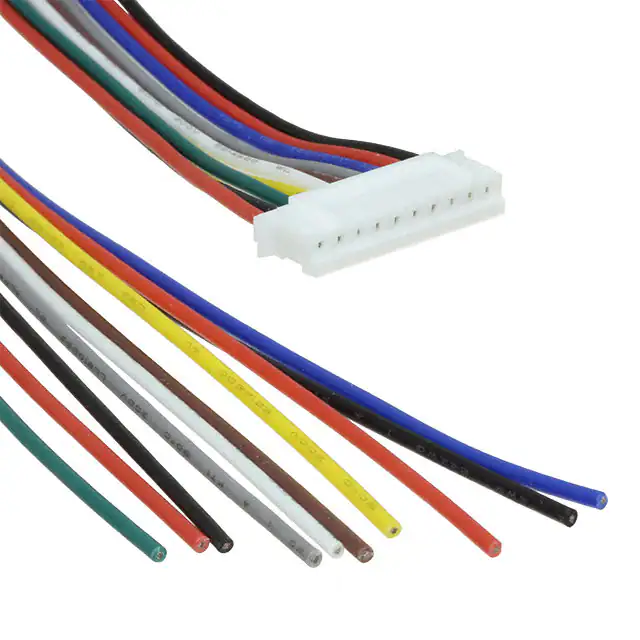

CABLE-PH10CABLE JST PHR-10 AWG 24, LENGTH |
167 |
|
Datasheet | PHR | Bulk | Active | Plug to Individual Wire Leads | 10 | 1 | 0.079" (2.00mm) | - | 0.656' (200.00mm, 7.87") | Detent Lock | Multiple, Individual | Unshielded | - | Crimp | - | - |
|

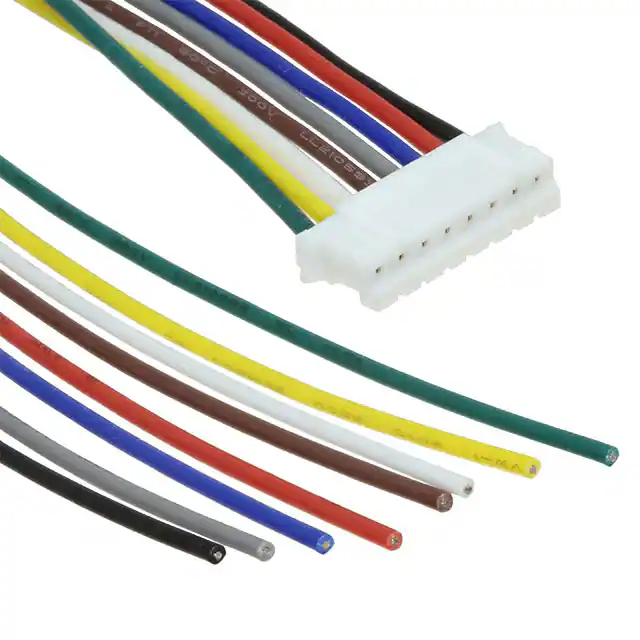

CABLE-PH08CABLE JST PHR-08 AWG 24, LENGTH |
732 |
|
Datasheet | PHR | Bulk | Active | Plug to Individual Wire Leads | 8 | 1 | 0.079" (2.00mm) | - | 0.656' (200.00mm, 7.87") | Detent Lock | Multiple, Individual | Unshielded | - | Crimp | - | - |
|
|
CABLE-EH04CABLE JST EHR-04 AWG 24, LENGTH |
3,134 |
|
Datasheet | EHR | Bulk | Active | Socket to Individual Wire Leads | 4 | 1 | 0.098" (2.50mm) | - | 0.656' (200.00mm, 7.87") | - | Multiple, Individual | Unshielded | - | Crimp | - | - |
|
CABLE-EH06CABLE JST EHR-06 AWG 24, LENGTH |
4,326 |
|
Datasheet | EHR | Bulk | Active | Socket to Individual Wire Leads | 6 | 1 | 0.098" (2.50mm) | - | 0.656' (200.00mm, 7.87") | - | Multiple, Individual | Unshielded | - | Crimp | - | - |
|

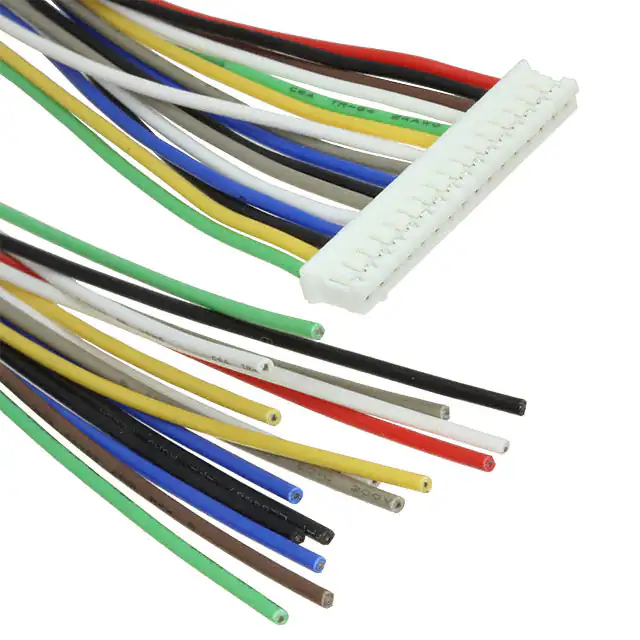

CABLE-PH16CABLE JST PHR-16 AWG 24, LENGTH |
2,963 |
|
Datasheet | PHR | Bulk | Active | Plug to Individual Wire Leads | 16 | 1 | 0.079" (2.00mm) | - | 0.656' (200.00mm, 7.87") | Detent Lock | Multiple, Individual | Unshielded | - | Crimp | - | - |
|

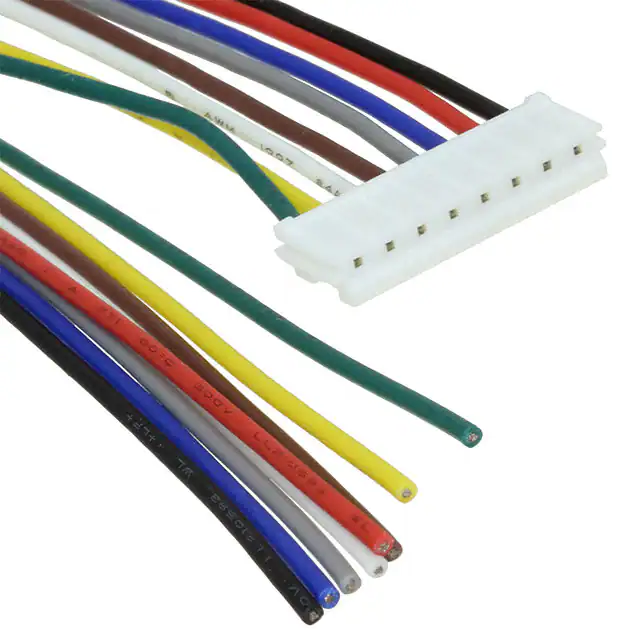

CABLE-EH08CABLE JST EHR-08 AWG 24, LENGTH |
3,866 |
|
Datasheet | EHR | Bulk | Active | Socket to Individual Wire Leads | 8 | 1 | 0.098" (2.50mm) | - | 0.656' (200.00mm, 7.87") | - | Multiple, Individual | Unshielded | - | Crimp | - | - |
