Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A16KR16KR26E102BJUMPER 16KR-6S-P - 16KR-6S-P 4" |
2,036 |
|
Datasheet | KR | Bulk | Active | Socket to Socket | 16 | 1 | 0.079" (2.00mm) | - | 0.333' (101.60mm, 4.00") | - | Blue, Individual | - | - | IDC | Tin | - |
|

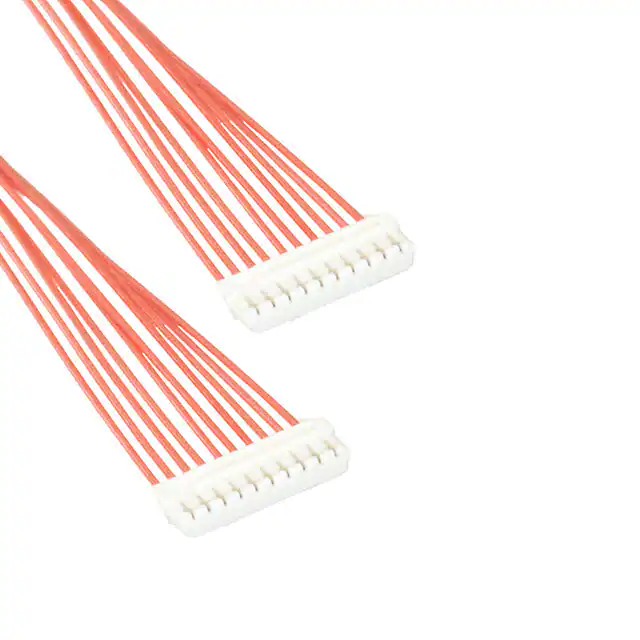

A10XSR10XSR36R152BJUMPER 10XSR-36S - 10XSR-36S 6" |
1,354 |
|
Datasheet | XSR | Bulk | Active | Socket to Socket | 10 | 1 | 0.024" (0.60mm) | - | 0.500' (152.40mm, 6.00") | - | Red, Individual | - | - | IDC | Tin | - |
|
|
A13SR13SR30K51BJUMPER 13SR-3S - 13SR-3S 2" |
4,972 |
|
Datasheet | SR | Bulk | Active | Socket to Socket | 13 | 1 | 0.039" (1.00mm) | - | 0.167' (50.80mm, 2.00") | - | Black, Individual | - | - | IDC | Tin | - |
|
|
A22SUR22SUR32W203AJUMPER 22SUR-32S - 22SUR-32S 8" |
2,000 |
|
Datasheet | SUR | Bulk | Active | Socket to Socket, Reversed | 22 | 1 | 0.031" (0.80mm) | - | 0.667' (203.20mm, 8.00") | - | White, Individual | - | - | IDC | Tin | - |
|
|
A22SUR22SUR32W203BJUMPER 22SUR-32S - 22SUR-32S 8" |
3,152 |
|
Datasheet | SUR | Bulk | Active | Socket to Socket | 22 | 1 | 0.031" (0.80mm) | - | 0.667' (203.20mm, 8.00") | - | White, Individual | - | - | IDC | Tin | - |
|
|
A20SUR20SUR32W254AJUMPER 20SUR-32S - 20SUR-32S 10" |
3,069 |
|
Datasheet | SUR | Bulk | Active | Socket to Socket, Reversed | 20 | 1 | 0.031" (0.80mm) | - | 0.833' (254.00mm, 10.00") | - | White, Individual | - | - | IDC | Tin | - |
|
|
A20SUR20SUR32W254BJUMPER 20SUR-32S - 20SUR-32S 10" |
2,362 |
|
Datasheet | SUR | Bulk | Active | Socket to Socket | 20 | 1 | 0.031" (0.80mm) | - | 0.833' (254.00mm, 10.00") | - | White, Individual | - | - | IDC | Tin | - |
|
|
A20XAF20XAF22K152AJUMPER 20XAF-2S - 20XAF-2S 6" |
3,037 |
|
Datasheet | XAF | Bulk | Active | Socket to Socket, Reversed | 20 | 1 | 0.098" (2.50mm) | - | 0.500' (152.40mm, 6.00") | - | Black, Individual | - | - | IDC | Tin | - |
|
A11ZR11ZR28H152BJUMPER 11ZR-8M-P - 11ZR-8M-P 6" |
2,376 |
|
Datasheet | ZR | Bulk | Active | Socket to Socket | 11 | 1 | 0.059" (1.50mm) | - | 0.500' (152.40mm, 6.00") | - | Gray, Individual | - | - | IDC | Tin | - |
|
|
A12ZR12ZR28H305BJUMPER 12ZR-8M-P - 12ZR-8M-P 12" |
1,602 |
|
Datasheet | ZR | Bulk | Active | Socket to Socket | 12 | 1 | 0.059" (1.50mm) | - | 1.00' (304.80mm) | - | Gray, Individual | - | - | IDC | Tin | - |
