Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A02SYR22KR254SSJUMPER SYR-02T RCY CONN 10" |
4,006 |
|
Datasheet | RCY | Bulk | Active | Socket to Individual Wire Leads | 2 | 1 | 0.098" (2.50mm) | - | 0.833' (254.00mm, 10.00") | - | Black, Red, Individual | - | - | Crimp | Tin | - |
|
|
A02SYP22KR152SSJUMPER SYP-02T-1 RCY CONN 6" |
2,963 |
|
Datasheet | RCY | Bulk | Active | Plug to Individual Wire Leads | 2 | 1 | 0.098" (2.50mm) | - | 0.500' (152.40mm, 6.00") | - | Black, Red, Individual | - | - | Crimp | Tin | - |
|
A05SR05SR30K203BJUMPER 05SR-3S - 05SR-3S 8" |
1,054 |
|
Datasheet | SR | Bulk | Active | Socket to Socket | 5 | 1 | 0.039" (1.00mm) | - | 0.667' (203.20mm, 8.00") | - | Black, Individual | - | - | IDC | Tin | - |
|
|
A06KR06DA28W254BJUMPER 06DA-8M - 06KR-8M-P 10" |
3,006 |
|
Datasheet | DA, KR | Bulk | Obsolete | Socket to Plug | 6 | 1 | 0.079" (2.00mm) | - | 0.833' (254.00mm, 10.00") | - | White, Individual | - | - | IDC | Tin | - |
|
A03XAF03XAF22K254BJUMPER 03XAF-2S - 03XAF-2S 10" |
4,323 |
|
Datasheet | XAF | Bulk | Active | Socket to Socket | 3 | 1 | 0.098" (2.50mm) | - | 0.833' (254.00mm, 10.00") | - | Black, Individual | - | - | IDC | Tin | - |
|

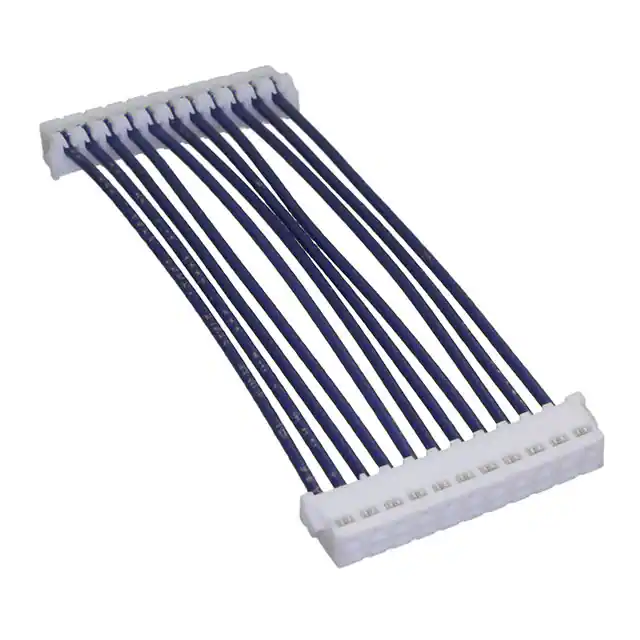

A11KR11KR26E51AJUMPER 11KR-6S-P - 11KR-6S-P 2" |
4,011 |
|
Datasheet | KR | Bulk | Active | Socket to Socket, Reversed | 11 | 1 | 0.079" (2.00mm) | - | 0.167' (50.80mm, 2.00") | - | Blue, Individual | - | - | IDC | Tin | - |
|
A11KR11KR26E51BJUMPER 11KR-6S-P - 11KR-6S-P 2" |
2,089 |
|
Datasheet | KR | Bulk | Active | Socket to Socket | 11 | 1 | 0.079" (2.00mm) | - | 0.167' (50.80mm, 2.00") | - | Blue, Individual | - | - | IDC | Tin | - |
|
|
A07KR07DA28W102BJUMPER 07DA-8M - 07KR-8M-P 4" |
1,412 |
|
Datasheet | DA, KR | Bulk | Obsolete | Socket to Plug | 7 | 1 | 0.079" (2.00mm) | - | 0.333' (101.60mm, 4.00") | - | White, Individual | - | - | IDC | Tin | - |
|
|
A08KR08DA28W102BJUMPER 08DA-8M - 08KR-8M-P 4" |
3,793 |
|
Datasheet | DA, KR | Bulk | Obsolete | Socket to Plug | 8 | 1 | 0.079" (2.00mm) | - | 0.333' (101.60mm, 4.00") | - | White, Individual | - | - | IDC | Tin | - |
|
|
A01RARSFP16K203AJUMPER RARSFP-1V-00 & RARSFC-1V |
1,730 |
|
Datasheet | RSF | Bulk | Active | Socket to Cable | 1 | 1 | - | - | 0.667' (203.20mm, 8.00") | - | Black, Individual | - | - | Crimp | Brass | - |
