Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

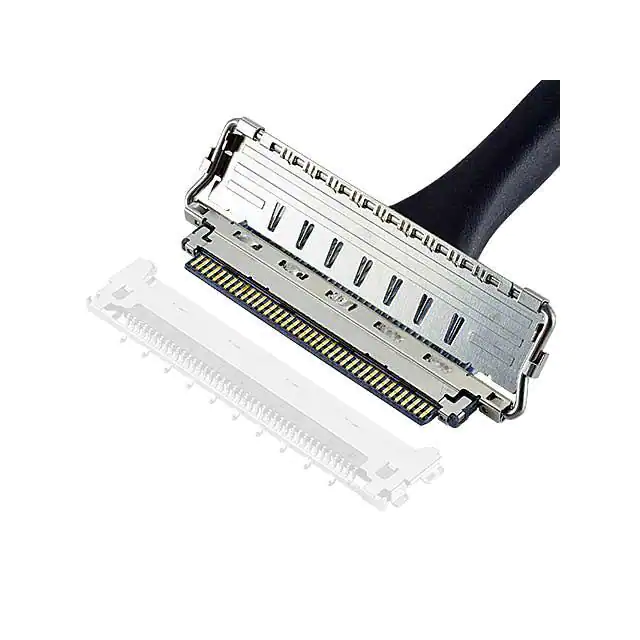

81461-100B-02-DCBL ASSY PLUG - PLUG 30POS 200MM |
1,644 |
|
Datasheet | CABLINE®-CA II | Bag | Active | Plug to Plug | 30 | 1 | 0.016" (0.40mm) | - | 0.656' (200.00mm, 7.87") | Latch Holder | Blue, Individual | Shielded | - | Solder | Gold | Flash |
|
|
81462-100B-02-DCBL ASSY PLUG - PLUG 40POS 200MM |
2,438 |
|
Datasheet | CABLINE®-CA II | Bag | Active | Plug to Plug | 40 | 1 | 0.016" (0.40mm) | - | 0.656' (200.00mm, 7.87") | Latch Holder | Blue, Individual | Shielded | - | Solder | Gold | Flash |
|
81466-100B-02-DCBL ASSY PLUG - PLUG 40POS 200MM |
3,314 |
|
Datasheet | CABLINE®-UM | Bag | Active | Plug to Plug | 40 | 1 | 0.016" (0.40mm) | - | 0.656' (200.00mm, 7.87") | Latch Holder | Blue, Individual | Shielded | - | Solder | Gold | Flash |
|
81424-100B-02-DCBL ASSY PLUG - PLUG 40POS 200MM |
3,324 |
|
Datasheet | CABLINE®-CA | Bag | Active | Plug to Plug | 40 | 1 | 0.016" (0.40mm) | - | 0.656' (200.00mm, 7.87") | Latch Holder | Blue, Individual | Shielded | - | Solder | Gold | Flash |
|
81458-100B-02-DCBL ASSY PLUG - PLUG 40POS 200MM |
4,721 |
|
- |
CABLINE®-VS II | Bag | Active | Plug to Plug | 40 | 1 | 0.020" (0.50mm) | - | 0.656' (200.00mm, 7.87") | Latch Holder | Blue, Individual | Shielded | - | Solder | Gold | Flash |
|
|
81426-100B-03-DCABLINE-UY HARNESS 5P 100MM |
1,930 |
|
Datasheet | CABLINE®-UY | Bag | Active | Plug to Plug | 5 | 1 | 0.014" (0.35mm) | - | 0.328' (100.00mm, 3.94") | - | Blue, Individual | Shielded | - | Solder | Gold | Flash |
|
|
81426-100B-02-DCABLINE-UY HARNESS 5P 200MM |
2,158 |
|
Datasheet | CABLINE®-UY | Bag | Active | Plug to Plug | 5 | 1 | 0.014" (0.35mm) | - | 0.656' (200.00mm, 7.87") | - | Blue, Individual | Shielded | - | Solder | Gold | Flash |
|
|
81787-100B-02-DCABLINE-UY HARNESS 10P 200MM |
3,724 |
|
Datasheet | CABLINE®-UY | Bag | Active | Plug to Plug | 10 | 1 | 0.014" (0.35mm) | - | 0.656' (200.00mm, 7.87") | - | Blue, Individual | Shielded | - | Solder | Gold | Flash |
|
|
81787-100B-03-DCABLINE-UY HARNESS 10P 100MM |
1,163 |
|
Datasheet | CABLINE®-UY | Bag | Active | Plug to Plug | 10 | 1 | 0.014" (0.35mm) | - | 0.328' (100.00mm, 3.94") | - | Blue, Individual | Shielded | - | Solder | Gold | Flash |
|
|
81463-100B-02-DCBL ASSY PLUG - PLUG 30POS 200MM |
3,434 |
|
Datasheet | CABLINE®-SS | Bag | Active | Plug to Plug | 30 | 1 | 0.016" (0.40mm) | - | 0.656' (200.00mm, 7.87") | - | Blue, Individual | Shielded | - | Solder | Gold | Flash |
