Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4731A06UUSWITCH PUSHBUTTON SPST 6A 125V |
2,386 |
|
Datasheet | 4700 | Bulk | Active | Panel Mount, Rear | Standard | SPST | On-Off | 6A (AC) | 125 V | - | Round, Plunger | No Marking | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 12.20mm Dia | -20°C ~ 65°C |
|
|
TP11SHV3QELinear IC's |
3,030 |
|
Datasheet | TP | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | - | - | - | - | PC Pin | - | - | Circular - 4.95mm Dia | -30°C ~ 85°C |
|

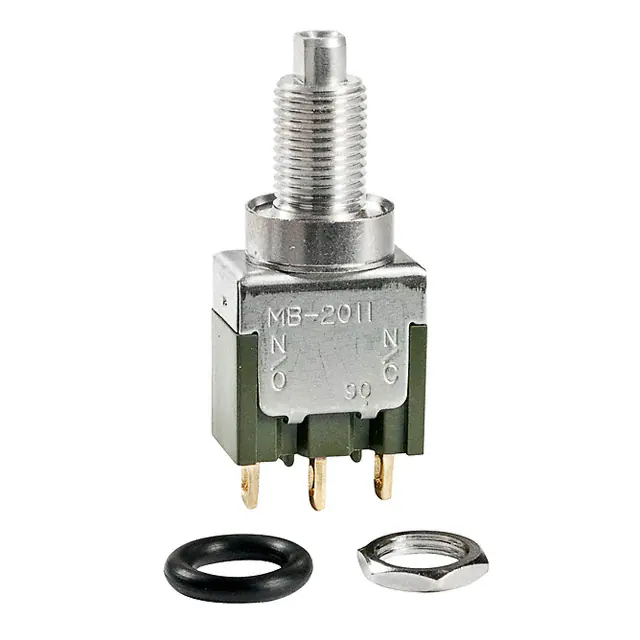

MB2011SD3G01SWITCH PUSH SPDT 0.4VA 28V |
2,995 |
|
Datasheet | MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
FHNBSBBNSWITCH PB SPST 2A 48V |
4,886 |
|
Datasheet | FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 3.3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
|
FHNBSBGNSWITCH PB SPST 2A 48V |
2,445 |
|
Datasheet | FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Green | 3.3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
|
FHLBBBRSWITCH PB SPST 2A 48V |
4,567 |
|
Datasheet | FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | On-Off | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Black | LED, Red | 2.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
|
LP11OA1TBSRGBSWITCH PB SPST-NO 0.1A 12V |
2,500 |
|
Datasheet | LP11 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | - | Clear | LED, Blue/Green/Red | 2.1, 3.2, 3.2 VDC | PC Pin | - | - | - | -40°C ~ 85°C |
|
|
9633NZ1ABPUSHBUTTON SWITCH 9100 METAL |
1,801 |
|
- |
9000 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (DC) | - | 30 V | Round, Plunger | - | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 6.50mm Dia | -30°C ~ 65°C |
|
|
3.13.005.001/0000SWITCH PUSH SPST-NO 0.1A 42V |
4,504 |
|
- |
RS76 | Tube | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 42 V | Plunger for Cap | No Marking | Pink | - | - | PC Pin | IP40 | Epoxy Sealed Terminals | - | -25°C ~ 70°C |
|
8125MD9ABESWITCH PUSH SPDT 0.4VA 20V |
4,119 |
|
Datasheet | 8020 | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|
|
30-3-ESWITCH PUSH SPST-NO 1A 115V |
3,382 |
|
Datasheet | 30 | Bulk | Discontinued at Digi-Key | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC) | 115 V | - | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.75mm Dia | -40°C ~ 85°C |
|
|
3MS-WSP7-P1-B4-M7RESWITCH |
2,081 |
|
- |
3S | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | - | Black | - | - | PC Pin | IP67 - Dust Tight, Waterproof | - | - | -30°C ~ 85°C |
|
|
8168SHCQE3Linear IC's |
1,050 |
|
Datasheet | 8020 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC/DC) | 120 V | 28 V | Round, Button | - | Red | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
EP12SD1AVPESWITCH PUSH SPDT 0.4VA 20V |
2,009 |
|
Datasheet | EP | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
8168J81ZQE92SWITCH PUSHBUTTON SPDT 6A 120V |
1,892 |
|
Datasheet | 8060 | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 6A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Gray | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 65°C |
|
|
G3B25AH-R-YCSWITCH PUSHBUTTON DPDT 0.4VA 28V |
2,436 |
|
Datasheet | G3B | Bulk | Active | Surface Mount, Right Angle | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|
|
0041.9160.5127SWITCH PUSHBUTTON SPST-NO |
1,505 |
|
Datasheet | - | - | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
|
1977298-1SWITCH PUSH SPST-NO 0.4VA 20V |
3,215 |
|
Datasheet | TSP | Bulk | Active | Surface Mount, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | - | - | - | Gull Wing | - | - | - | -30°C ~ 85°C |
|
SW19STL255SWITCH PB TAG LAT RING BL 110V |
2,562 |
|
Datasheet | SW19ST | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 110 VAC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -40°C ~ 80°C |
|
|
1XNE18 2A EESWITCH PUSHBUTTON |
2,166 |
|
Datasheet | 1X | Bulk | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
