Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

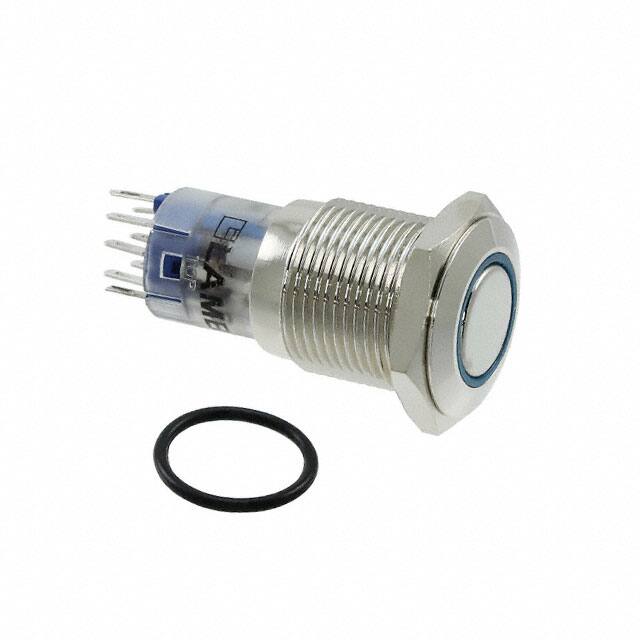

PV3F2H0NN-344SWITCH PUSHBUTTON DPDT 2A 48V |
1,852 |
|
Datasheet | PV3, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Solder Lug | IP40 | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
PVB3H2B0SS3R1ANTI-VANDAL, 2A, SPDT, ON-(ON) |
3,542 |
|
Datasheet | PVB3 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 500mA (AC), 2A (DC) | 220 V | 24 V | Round, Button | - | Silver | LED, Blue/Green/Red | 1.8, 2.8, 2.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
PVB3F2B0SS3R5ANTI-VANDAL, 2A, SPDT, ON-(ON) |
2,970 |
|
Datasheet | PVB3 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 500mA (AC), 2A (DC) | 220 V | 24 V | Round, Button, Flush | - | Silver | LED, Blue/Green/Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
PV7F2Y0SS-344-M10SWITCH PB DPST-NO/NC 2A 48V |
2,907 |
|
Datasheet | PV7, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | - | Silver | LED, Blue | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
|
PVB3F230113R1ANTI-VANDAL, 2A, SPDT, ON-ON |
4,945 |
|
Datasheet | PVB3 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 500mA (AC), 2A (DC) | 220 V | 24 V | Round, Button, Flush | - | Black | LED, Blue/Green/Red | 1.8, 2.8, 2.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
PVHC7F23SSANTI-VANDAL, 20A, SPST, OFF-ON, |
4,588 |
|
Datasheet | * | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ULV7F2BSS345Switches |
4,783 |
|
Datasheet | ULV7 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Blue | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
|
ULV8F2BSS304SWITCH PUSHBUTTON SPDT 3A 125V |
1,901 |
|
Datasheet | ULV8 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, White | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.00mm Dia | -20°C ~ 55°C |
|
|
ULV7F2GSS647SWITCH PUSHBUTTON DPDT 3A 125V |
100 |
|
Datasheet | ULV7 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Blue | 220 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
PV4F23011-341SWITCH PUSHBUTTON SPDT 2A 24V |
4,277 |
|
Datasheet | PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Black | LED, Blue | 2.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
