Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SV4FW3SS-641SWITCH PB SPST 2A 36V |
2,053 |
|
Datasheet | SV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 3.1 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -20°C ~ 70°C |
|

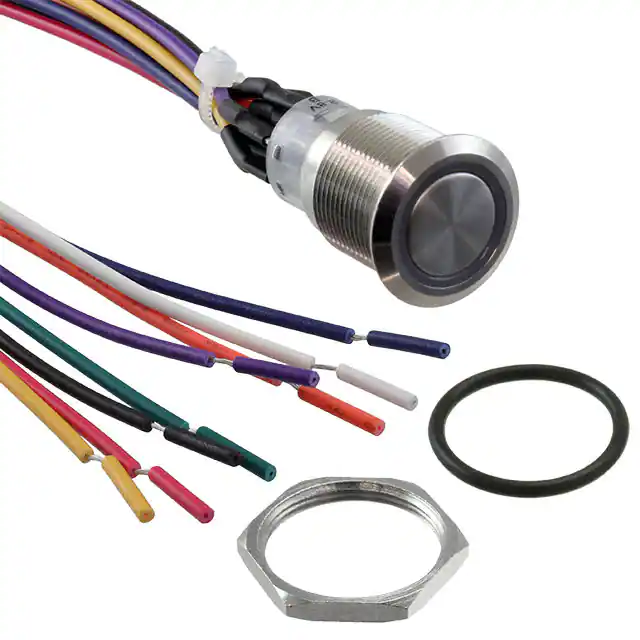

PV3FWH0SS-341SWITCH PB DPDT 2A 48V |
2,787 |
|
Datasheet | PV3, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 2.8 VDC | Wire Leads | IP40 | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|

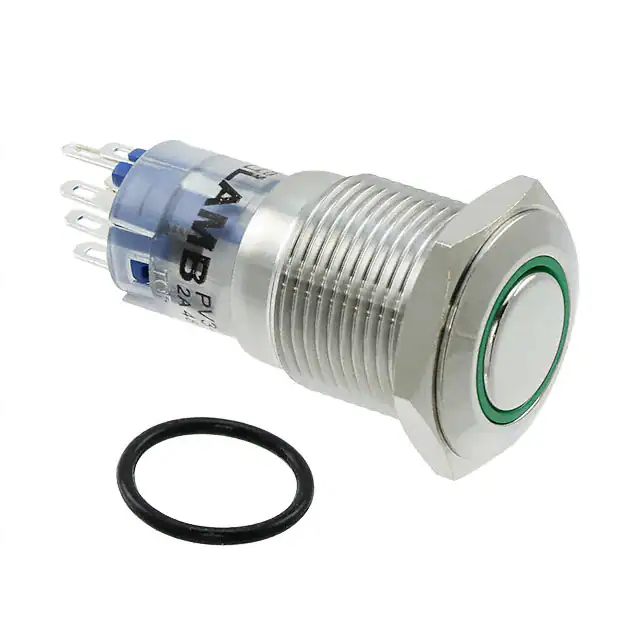

PV3F2H0SS-335SWITCH PUSHBUTTON DPDT 2A 48V |
3,996 |
|
Datasheet | PV3, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Green | 24 VDC | Solder Lug | IP40 | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
PV3F2H0SS-315SWITCH PUSHBUTTON DPDT 2A 48V |
3,245 |
|
Datasheet | PV3, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VDC | Solder Lug | IP40 | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
PV4H230NNSWITCH PUSHBUTTON SPDT 2A 24V |
1,837 |
|
Datasheet | PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-On | 2A (DC) | - | 24 V | Round, Button | No Marking | Silver | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
011-311.jpg)
|
PV4F2H011-311SWITCH PUSHBUTTON DPDT 2A 24V |
2,355 |
|
Datasheet | PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Black | LED, Red | 1.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
PV7F2Y0SS-321SWITCH PUSHBUTTON SPDT 2A 48V |
4,650 |
|
Datasheet | PV7, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom, Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Orange | 1.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
ULV4FPBSS544SWITCH PB SPDT 3A 125V |
4,296 |
|
Datasheet | ULV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Wire Leads with Connector | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
SV7FW3SS-631SWITCH PB SPST 2A 36V |
3,812 |
|
Datasheet | SV7 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | Power Symbol | Silver | LED, Green | 3.1 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 70°C |
|
PVT4FS4SS311SWITCH PB SPST-NO 50MA 24V |
2,045 |
|
Datasheet | PVT4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Red | 1.8 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.00mm Dia | -25°C ~ 55°C |
