Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

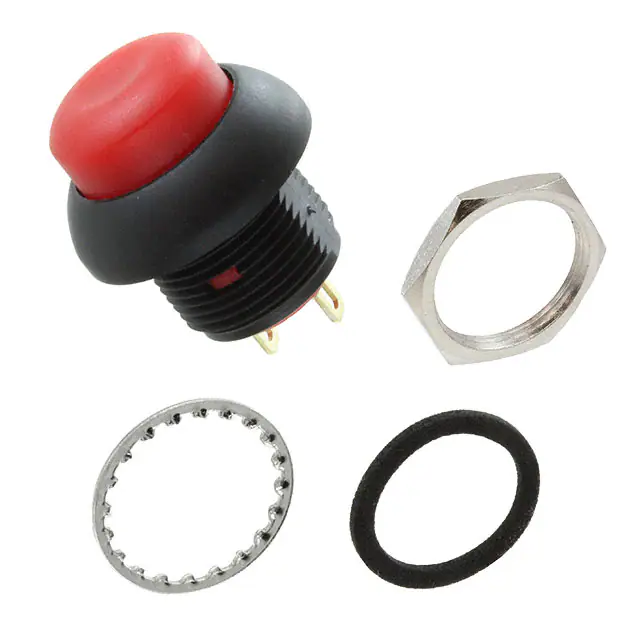

RP8101B2M1CEBLKREDNILSWITCH PUSH SPST-NO 0.125A 125V |
2,372 |
|
Datasheet | RP8100 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|

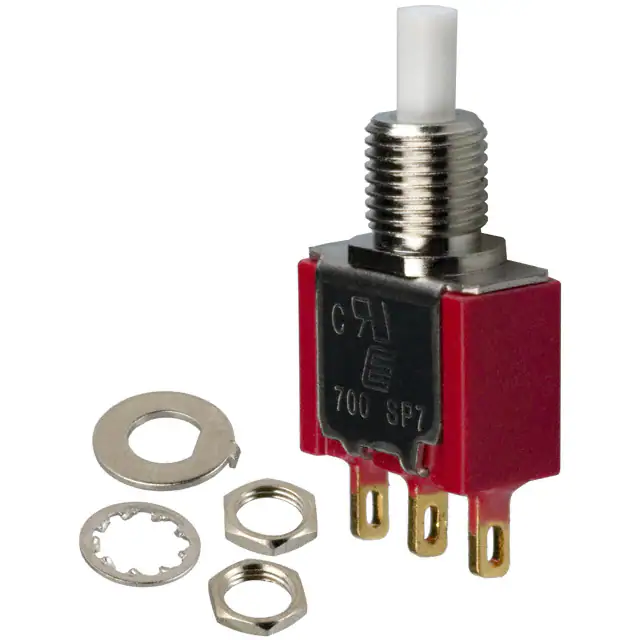

700SP7B10M1REHSWITCH PUSH SPDT 0.4VA 20V |
3,487 |
|
Datasheet | 700 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
RP8100B1M1CEBLKBLKBLUSWITCH PB SPST-NO 0.125A 125V |
4,554 |
|
Datasheet | RP8100 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Black | LED, Blue | 2.8 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
700SP7B10M7QEHSWITCH PUSHBUTTON SPDT 3A 120V |
1,673 |
|
Datasheet | 700 | Bulk | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
PV5S24012GSWITCH PB SPST-NO 2A 36V |
2,229 |
|
Datasheet | PV5, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | - | White | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
700SP7M1QEAP2BLKBLKSWITCH PUSHBUTTON SPDT 3A 120V |
4,939 |
|
Datasheet | 700 | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | - | Rectangular - 15.70mm x 12.70mm | -30°C ~ 85°C |
|
PV1H640NNSWITCH PUSHBUTTON SPST-NO 2A 48V |
4,670 |
|
Datasheet | PV1, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Silver | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
|
PV2F640BBSWITCH PUSHBUTTON SPST 2A 48V |
2,647 |
|
Datasheet | PV2, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
FS5700SPLT2B2M1QEHSWITCH PUSHBUTTON SPDT 1A 9V |
1,962 |
|
Datasheet | FS5700 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 1A (DC) | - | 9 V | Round, Button | No Marking | Silver | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.20mm Dia | -10°C ~ 70°C |
|
|
FS5700DPMT2B2M1QEHSWITCH PUSHBUTTON DPDT 1A 9V |
3,121 |
|
Datasheet | FS5700 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 1A (DC) | - | 9 V | Round, Button | No Marking | Silver | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.20mm Dia | -10°C ~ 70°C |
