Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

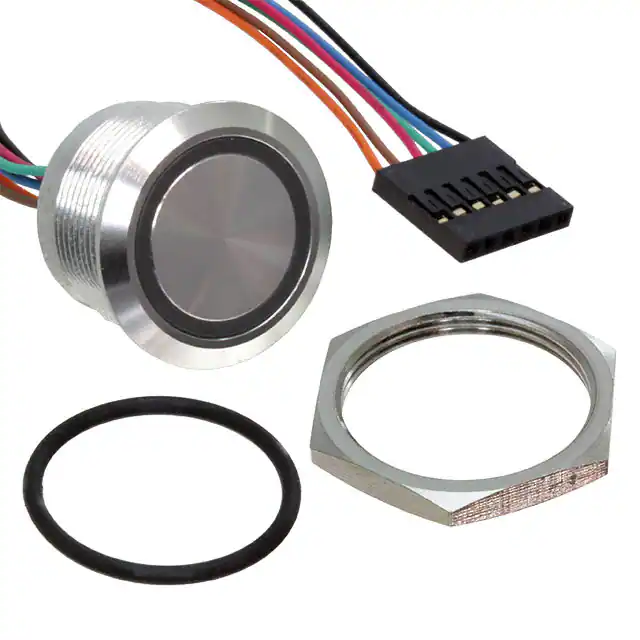

CS7L2FRSWITCH PB SPST 1A 24V |
2,048 |
|
Datasheet | CS | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST-NO | Off-On | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | - | - | Circular - 22.20mm Dia | -20°C ~ 65°C |
|

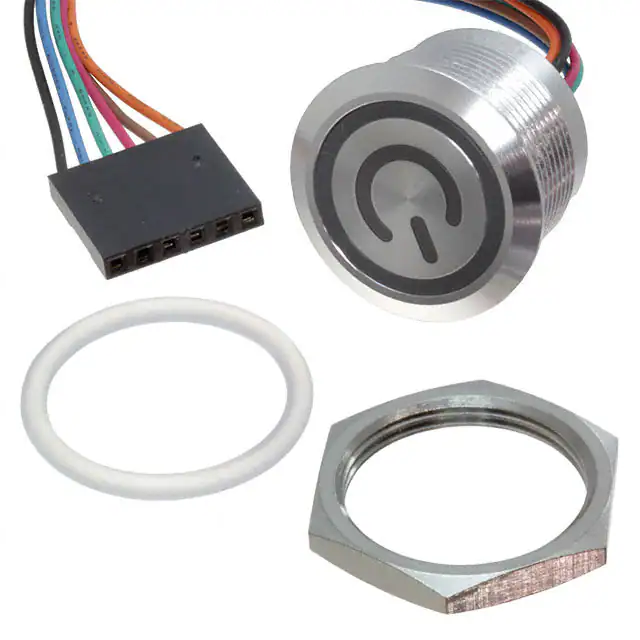

CS4M2FPSWITCH PB SPST 1A 24V |
2,741 |
|
Datasheet | CS | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 1A (DC) | - | 24 V | Round, Button, Flush | Power Symbol | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | - | - | Circular - 19.20mm Dia | -20°C ~ 65°C |
|
5500STDBODY2SWITCH PB SPDT 12MA 24V |
500 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 12mA (DC) | - | 24 V | Plunger for Cap | No Marking | - | LED, Green | 2.2 VDC | PC Pin | - | - | - | - |
|
TL2205EEBPBBSWITCH PUSH DPDT 0.1A 30V |
296 |
|
Datasheet | TL2205 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 100mA (DC) | - | 30 V | Oval, Button | No Marking | Black (White Window) | LED, Blue | 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
TL2205OABPBBSWITCH PUSH DPDT 0.1A 30V |
549 |
|
Datasheet | TL2205 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Oval, Button | No Marking | Black (White Window) | LED, Blue | 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
800SP9B9M1QESWITCH PUSH SPST-NO 3A 120V |
867 |
|
Datasheet | 800 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
700SP7B11M7QESWITCH PUSHBUTTON SPDT 3A 120V |
186 |
|
Datasheet | 700 | Bulk | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
5511MWHTXSWITCH PUSH SPDT 0.03A 12V |
793 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | White | - | - | PC Pin | - | - | - | -25°C ~ 65°C |
|
|
RP8100B2M1CEBLKBLKNIL-PSSWITCH PB SPST-NO 125MA 125V |
331 |
|
Datasheet | RP8100 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | - | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
800SP8B9M6REHSWITCH PUSH SPDT 0.4VA 20V |
196 |
|
Datasheet | 800 | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
