Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PV4F2Y011-345SWITCH PUSHBUTTON DPST 2A 24V |
3,580 |
|
Datasheet | PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Black | LED, Blue | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
PV4F2Y011-351SWITCH PUSHBUTTON DPST 2A 24V |
4,184 |
|
Datasheet | PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Black | LED, Yellow | 1.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|

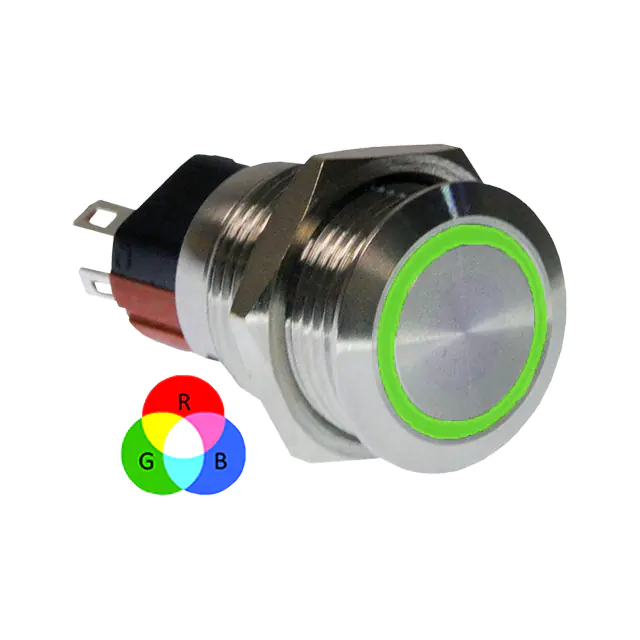

PVA3F2B0SS3R1SWITCH PB SPST 2A 36V |
1,106 |
|
Datasheet | PVA3 | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | 1.8, 2.8 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
PV4F2Y0SSG-3G1SWITCH PUSHBUTTON DPST 2A 24V |
1,349 |
|
Datasheet | PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 1.8, 2.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
PV8F2Y0SS-3K1-M11SWITCH PB SPDT 2A 48V |
4,747 |
|
Datasheet | PV8, LAMB | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom, Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | - | Silver | LED, Green/Orange | 1.8, 2.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.00mm Dia | -20°C ~ 55°C |
|
|
PV4F6Y011-333-M01SWITCH PB DPST-NO/NC 2A 24V |
2,192 |
|
Datasheet | PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | - | Black | LED, Green | 6 VDC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
|
D16EES12JREDREDSWITCH PUSHBUTTON DPDT 8A 125V |
1,312 |
|
Datasheet | D16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 8A (AC), 6A (DC) | 125 V | 24 V | Square, Button | No Marking | Red | LED, Red | 12 VDC | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
D16EER12KYELYELSWITCH PUSHBUTTON DPDT 8A 125V |
4,877 |
|
Datasheet | D16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 8A (AC), 6A (DC) | 125 V | 24 V | Round, Button | No Marking | Yellow | LED, Yellow | 24 VDC | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
D16EES12HGRNGRNSWITCH PUSHBUTTON DPDT 8A 125V |
3,452 |
|
Datasheet | D16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 8A (AC), 6A (DC) | 125 V | 24 V | Square, Button | No Marking | Green | LED, Green | 6 VDC | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
D16EES12JGRNGRNSWITCH PUSHBUTTON DPDT 8A 125V |
1,627 |
|
Datasheet | D16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 8A (AC), 6A (DC) | 125 V | 24 V | Square, Button | No Marking | Green | LED, Green | 12 VDC | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
