Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

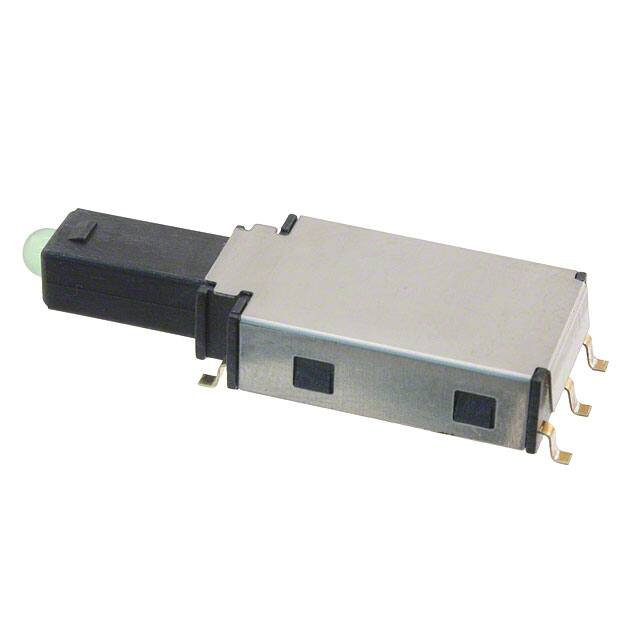

LP37OACGGSWITCH PUSH SPDT 0.25A 50V |
4,039 |
|
Datasheet | LP37 | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard, Illuminated | SPDT | On-Mom | 250mA (DC) | - | 50 V | Plunger for Cap | No Marking | Black | LED, Green | 2.2 VDC | Gull Wing | - | - | - | -30°C ~ 85°C |
|
LP37OACGRSWITCH PUSH SPDT 0.25A 50V |
2,960 |
|
Datasheet | LP37 | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard, Illuminated | SPDT | On-Mom | 250mA (DC) | - | 50 V | Plunger for Cap | No Marking | Black | LED, Red | 2.3 VDC | Gull Wing | - | - | - | -30°C ~ 85°C |
|
LP37OACGYSWITCH PUSH SPDT 0.25A 50V |
1,684 |
|
Datasheet | LP37 | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard, Illuminated | SPDT | On-Mom | 250mA (DC) | - | 50 V | Plunger for Cap | No Marking | Black | LED, Yellow | 2.1 VDC | Gull Wing | - | - | - | -30°C ~ 85°C |
|
|
ULP12EEP1QSFCL1YELREDSWITCH PUSHBUTTON SPDT 0.5A 250V |
2,537 |
|
Datasheet | ULP | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-On | 200mA (AC), 500mA (DC) | 250 V | 25 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red/Yellow | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 70°C |
|
|
LP15R1TRARED-NSWITCH PB SPST-NO 1MA 20V |
2,637 |
|
Datasheet | LP15 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Round, Button | - | Clear | LED, Red | 1.6 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
RP8300B2M1CEBLKREDREDSWITCH PB SPST-NO 0.2A 250V |
4,573 |
|
Datasheet | RP8300 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 200mA (AC/DC) | 250 V | 50 V | Round, Button | - | Red | LED, Red | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
700SP7B10VS3RESWITCH PUSHBUTTON SPDT 0.4VA 20V |
3,770 |
|
Datasheet | 700 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
700ASP7B21M6RESWITCH PUSH SPDT 0.4VA 20V |
2,718 |
|
Datasheet | 700A | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
ULP12OAM1RPMCL1REDNILSWITCH PB SPDT 0.1A 28V |
1,688 |
|
Datasheet | ULP | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 100mA (DC) | - | 28 V | Square, Button | - | Clear (White Filter/Diffuser) | LED, Red | 1.95 VDC | Solder Lug | - | - | - | -40°C ~ 85°C |
|
|
700CSP7B60M6RESWITCH PUSH SPDT 0.4VA 20V |
3,284 |
|
Datasheet | 700C | Tray | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
