Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
700SP7B20M6REC1BLKSWITCH PUSH SPDT 0.4VA 20V |
3,338 |
|
Datasheet | 700 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
700SP7B20M6REC2BLKSWITCH PUSH SPDT 0.4VA 20V |
1,482 |
|
Datasheet | 700 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
RP8500B2M1CEBLKBLKREDSWITCH PB SPST-NO 0.125A 125V |
4,482 |
|
Datasheet | RP8500 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Square, Button | - | Black | LED, Red | 2.1 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
RP8500B2M1CEBLKBLKNILSWITCH PB SPST-NO 0.125A 125V |
3,808 |
|
Datasheet | RP8500 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Square, Button | - | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
700CSP7B60M1QEHSWITCH PUSHBUTTON SPDT 3A 120V |
2,016 |
|
Datasheet | 700C | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | Solder Lug | - | - | - | -30°C ~ 85°C |
|
|
RP8100B2M1CEBLKWHTBLUSWITCH PB SPST-NO 0.125A 125V |
1,396 |
|
Datasheet | RP8100 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | White | LED, Blue | 2.8 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
700DP7B10VS2REC1BLKSWITCH PUSH DPDT 0.4VA 20V |
3,931 |
|
Datasheet | 700 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
700SP7B21M7REC2BLKSWITCH PUSH SPDT 0.4VA 20V |
2,467 |
|
Datasheet | 700 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|

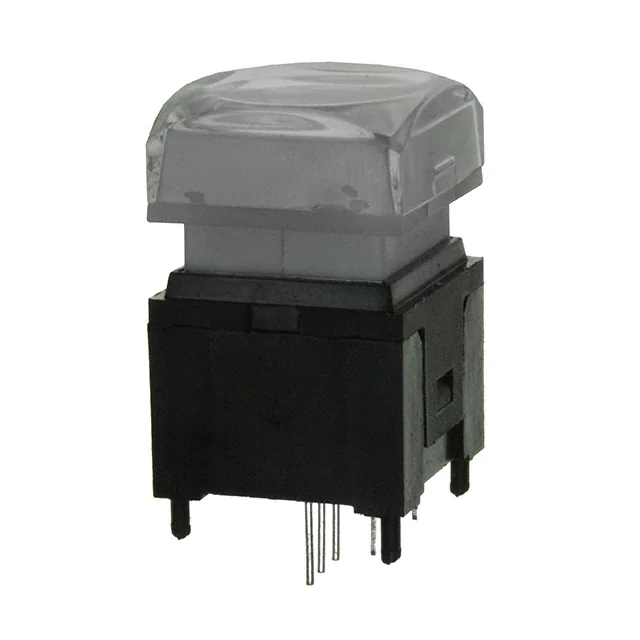

LP11OA1TBSRRSWITCH PUSH SPST-NO 0.1A 12V |
1,225 |
|
Datasheet | LP11 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear | LED, Red/Red | 2.2 VDC | PC Pin | - | Tactile Feedback | - | -20°C ~ 70°C |
|
LP11OA1TBSYYSWITCH PUSH SPST-NO 0.1A 12V |
3,968 |
|
Datasheet | LP11 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear | LED, Yellow/Yellow | 2.2 VDC | PC Pin | - | Tactile Feedback | - | -20°C ~ 70°C |
