Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

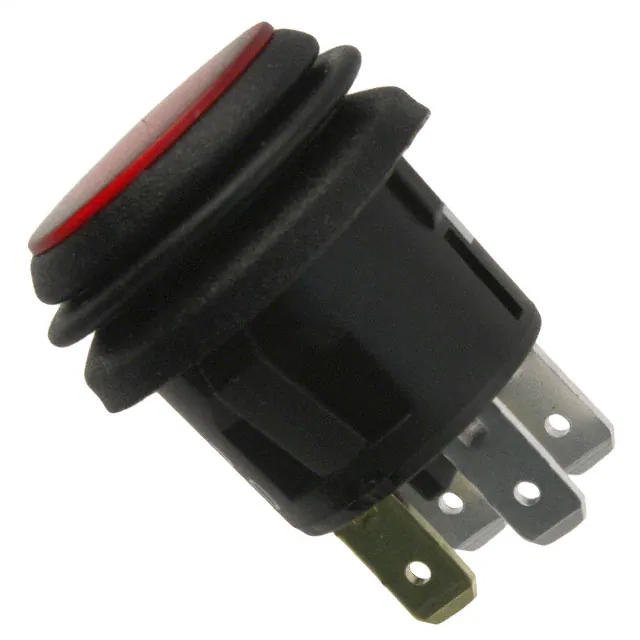

GPB527D2L02BR1SWITCH PUSHBUTTON SPST 10A 125V |
549 |
|
Datasheet | GPB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST | Off-On | 10A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | Red | LED, Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
GPB548DL05BRSWITCH PUSH |
562 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
GPB527B202BBSWITCH PUSH DPST 10A 125V |
4,475 |
|
Datasheet | GPB | Bulk | Active | Panel Mount, Snap-In | Standard | DPST | Off-On | 10A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
GPB527A2L02BR1SWITCH PUSH DPST-NO 10A 125V |
3,822 |
|
Datasheet | GPB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST-NO | Off-Mom | 10A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | Red | LED, Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|

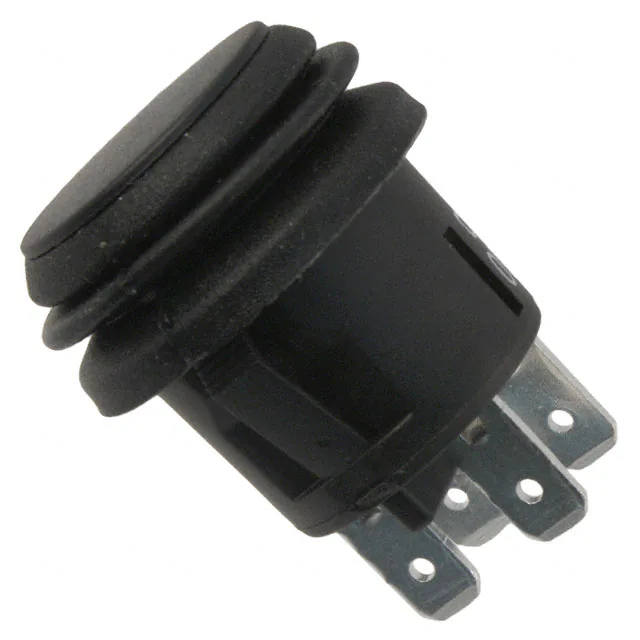

GPB527A202BBSWITCH PUSH DPST-NO 10A 125V |
4,764 |
|
Datasheet | GPB | Bulk | Active | Panel Mount, Snap-In | Standard | DPST-NO | Off-Mom | 10A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
|
GC-536A-0105SWITCH PUSHBUTTON SPDT 3A 14V |
1,127 |
|
Datasheet | GC-536 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 3A (AC), 1A (DC) | 125 V | 14 V | Plunger for Cap | No Marking | Gray | - | - | Quick Connect - 0.110" (2.8mm) | - | - | - | - |
|
|
GC-536A-0114SWITCH PUSHBUTTON SPDT 3A 14V |
3,897 |
|
Datasheet | GC-536 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 3A (AC), 1A (DC) | 125 V | 14 V | Round, Plunger | No Marking | Gray | - | - | Quick Connect - 0.110" (2.8mm) | - | - | - | - |
|

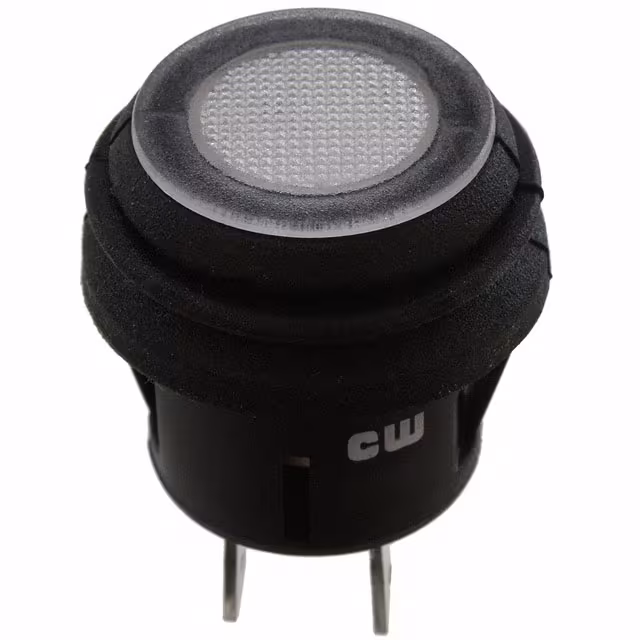

GPB527A202BWSWITCH PUSH DPST-NO 10A 125V |
1,944 |
|
Datasheet | GPB | Bulk | Active | Panel Mount, Snap-In | Standard | DPST-NO | Off-Mom | 10A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | White | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|

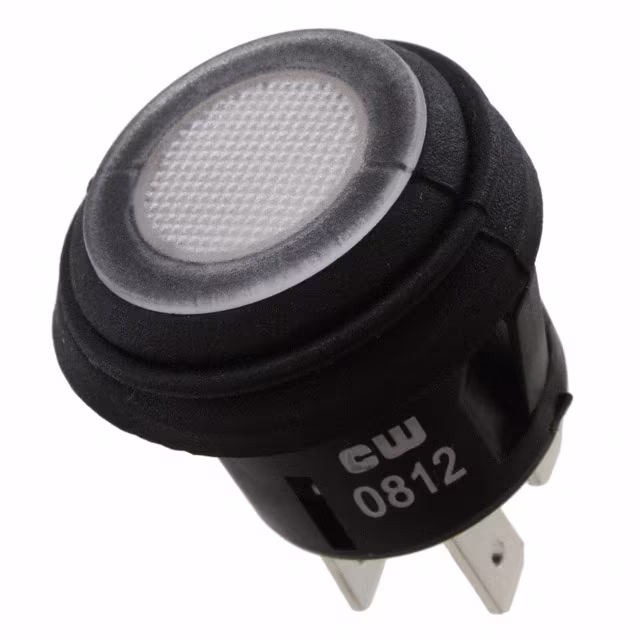

GPB527B202BWSWITCH PUSHBUTTON DPST 10A 125V |
1,705 |
|
Datasheet | GPB | Bulk | Active | Panel Mount, Snap-In | Standard | DPST | Off-On | 10A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | White | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
.jpg)
|
GPB554DL05BRSWITCH PUSHBUTTON SPST 6A 14V |
4,521 |
|
Datasheet | GPB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPST | Off-On | 6A (DC) | - | 14 V | Square, Button | No Marking | Red | LED, Red | - | Solder Lug | - | - | Circular - 12.10mm Dia | 0°C ~ 55°C |
