Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YB216CWSKW01SWITCH PUSHBUTTON SPDT 3A 125V |
4,464 |
|
Datasheet | YB2 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 70°C |
|
3-145-768SWITCH PUSHBUTTON DPDT 5A 125V |
1,774 |
|
Datasheet | MSM II | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Green | - | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 19.10mm Dia | -40°C ~ 85°C |
|
WB15S-DASWITCH PUSHBUTTON SPDT 6A 125V |
4,569 |
|
Datasheet | WB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 12.50mm Dia | -30°C ~ 70°C |
|
|
19-289.015SWITCH PB SPST-NO 0.8A 50V |
3,501 |
|
Datasheet | 19 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 800mA (AC) | 50 V | - | Square, Button (Not Included) | No Marking | - | - | - | Solder, Quick Connect - 0.079" (2.0mm) | IP40 | - | Circular - 8.00mm Dia | -25°C ~ 65°C |
|
PV7F2Y0SS-333SWITCH PUSHBUTTON SPDT 2A 48V |
1,705 |
|
Datasheet | PV7, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom, Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Green | 6 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
|
LB15WKG01-5F-JFSWITCH PUSHBUTTON SPDT 0.4VA 28V |
1,485 |
|
Datasheet | LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.1 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|

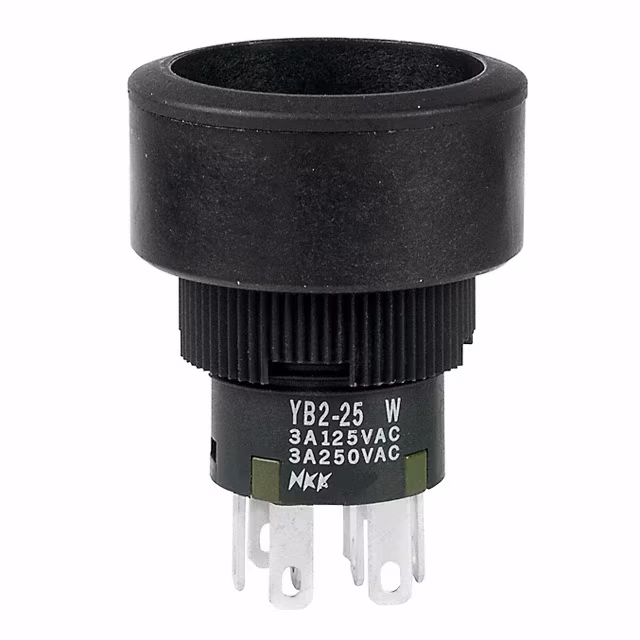

YB225CWCKW01SWITCH PUSHBUTTON DPDT 3A 125V |
100 |
|
Datasheet | YB2 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
YB15SKW01-5F-JFSWITCH PUSHBUTTON SPDT 3A 125V |
4,300 |
|
Datasheet | YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
LB16SKG01-6F-JBSWITCH PUSHBUTTON SPDT 0.4VA 28V |
1,691 |
|
Datasheet | LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
82-4551.2113SWITCH PB SPDT 5A 120V |
2,080 |
|
Datasheet | 82 | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 5A (AC), 1A (DC) | 120 V | 24 V | Round, Button, Flush | - | Silver | LED, Red | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 16.00mm Dia | -30°C ~ 70°C |
|
82-4172.1000SWITCH PB SPDT 5A 120V |
1,567 |
|
Datasheet | 82 | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (AC), 1A (DC) | 120 V | 24 V | Round, Button, Flush | - | Silver | - | - | Screw Terminal | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 16.00mm Dia | -30°C ~ 70°C |
|
82-4551.1123SWITCH PB SPDT 5A 120V |
2,637 |
|
Datasheet | 82 | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 5A (AC), 1A (DC) | 120 V | 24 V | Round, Button, Flush | - | Silver | LED, Blue | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 16.00mm Dia | -30°C ~ 70°C |
|
82-4162.2000SWITCH PB SPDT 5A 120V |
2,754 |
|
Datasheet | 82 | Tray | Active | Panel Mount, Front | Standard | SPDT | On-On | 5A (AC), 1A (DC) | 120 V | 24 V | Round, Button, Flush | - | Silver | - | - | Screw Terminal | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 16.00mm Dia | -30°C ~ 70°C |
|
82-4551.1133SWITCH PB SPDT 5A 120V |
4,766 |
|
Datasheet | 82 | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 5A (AC), 1A (DC) | 120 V | 24 V | Round, Button, Flush | - | Silver | LED, Green | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 16.00mm Dia | -30°C ~ 70°C |
|
|
82-4551.2123SWITCH PB SPDT 5A 120V |
3,002 |
|
Datasheet | 82 | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 5A (AC), 1A (DC) | 120 V | 24 V | Round, Button, Flush | - | Silver | LED, Blue | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 16.00mm Dia | -30°C ~ 70°C |
|
|
82-4162.1000SWITCH PB SPDT 5A 120V |
1,809 |
|
Datasheet | 82 | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (AC), 1A (DC) | 120 V | 24 V | Round, Button, Flush | - | Silver | - | - | Screw Terminal | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 16.00mm Dia | -30°C ~ 70°C |
|
3-101-012SWITCH PUSHBUTTON DPST 16A 250V |
1,517 |
|
Datasheet | MSM LA | Bulk | Active | Panel Mount, Front | Anti-Vandal | DPST | Off-On | 16A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Silver | - | - | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 22.10mm Dia | -20°C ~ 85°C |
|
|
YB16CKW01-5F-JFSWITCH PUSHBUTTON SPDT 3A 125V |
1,714 |
|
Datasheet | YB | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
UB216SKW036CF-4JCF14SWITCH PUSHBUTTON SPDT 5A 125V |
2,482 |
|
Datasheet | UB2 | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button, Alternating Legend | OPEN/CLOSE (Alternating) | Clear | LED, Green/Red | 2.1, 3.5 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|

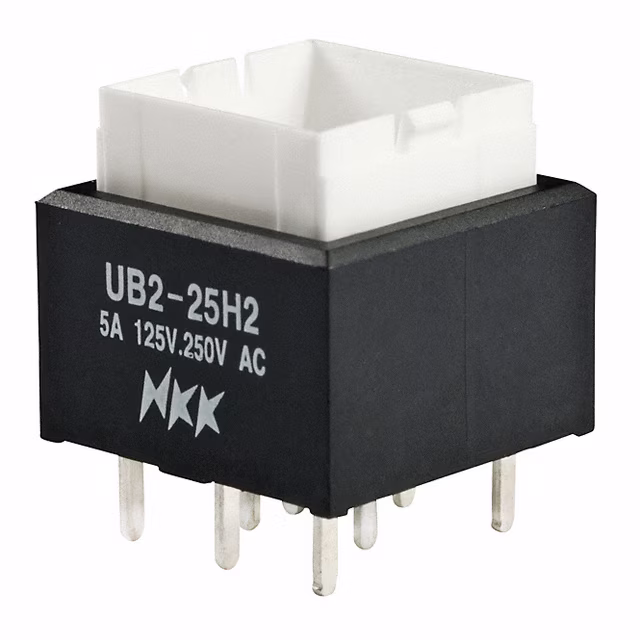

UB225SKW036CFSWITCH PUSHBUTTON DPDT 5A 125V |
4,406 |
|
Datasheet | UB2 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green/Red | 2.1, 3.5 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
