Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB25SKG035FSWITCH PUSH DPDT 0.4VA 28V |
1,836 |
|
Datasheet | UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | PC Pin | - | Spot LED | - | -25°C ~ 50°C |
|

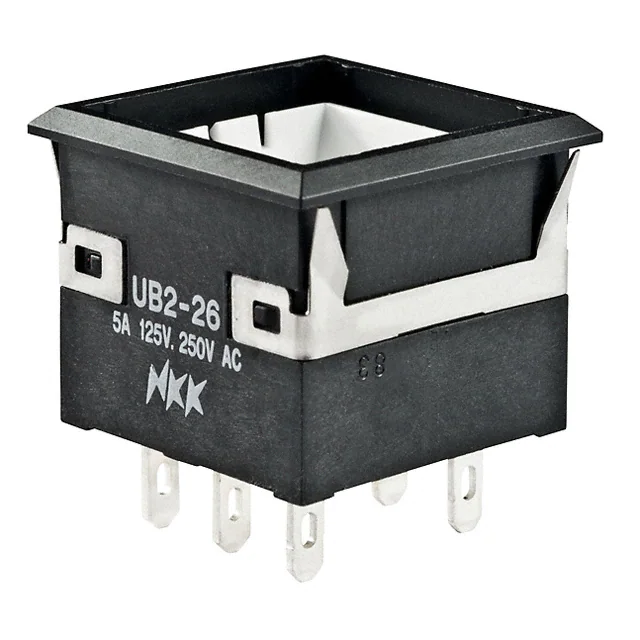

UB226KKW01NSWITCH PUSHBUTTON DPDT 5A 125V |
3,066 |
|
Datasheet | UB2 | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 70°C |
|

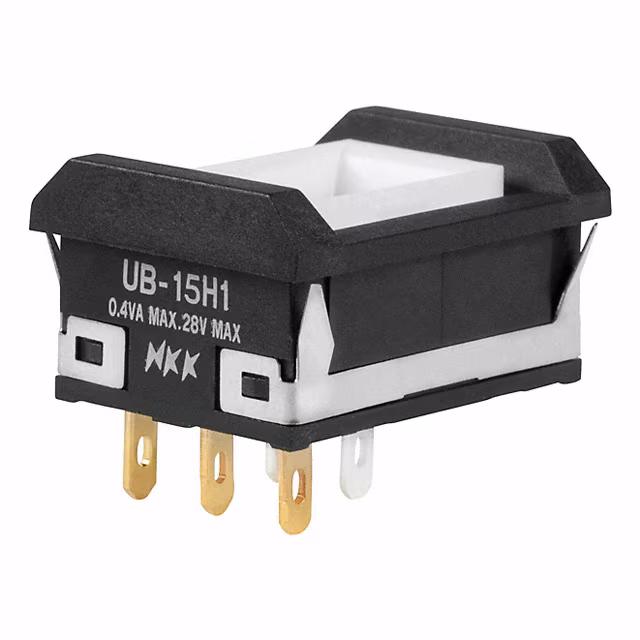

UB15NBKG015FSWITCH PUSH SPDT 0.4VA 28V |
2,949 |
|
Datasheet | UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
SPM1A9M9-BSWITCH PB SPST-NO 10A 250VAC |
4,431 |
|
Datasheet | S | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 125 V | 14 V | Square, Button | - | Black | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.94mm x 22.35mm | - |
|
|
ULV7F2BSS355SWITCH PB ON-MOM YELLOW |
4,502 |
|
Datasheet | ULV7 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Yellow | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
|
ULV7F2BSS315SWITCH PB ON-MOM RED |
3,771 |
|
Datasheet | ULV7 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
|
CP24B-M2E01G22MM/GN/MOMENTARY/1NC |
4,395 |
|
Datasheet | - | Box | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 8A (AC), 2.5A (DC) | 120 V | 30 V | Round, Button | - | Green | - | - | Spring Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
CP24B-A2E01G22MM/GN/MAINTAINED/1NC |
2,932 |
|
Datasheet | - | Box | Active | Panel Mount, Front | Standard | SPST-NC | On-Off | 8A (AC), 2.5A (DC) | 120 V | 30 V | Round, Button | - | Green | - | - | Spring Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
CP24B-A2E02Y22MM/YL/MAINTAINED/2NC |
4,475 |
|
Datasheet | - | Box | Active | Panel Mount, Front | Standard | DPST-NC | On-Off | 8A (AC), 2.5A (DC) | 120 V | 30 V | Round, Button | - | Yellow | - | - | Spring Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
MBN12SB1W01-DALARGE BUSHING MINIATURE PUSHBUTT |
4,579 |
|
Datasheet | MB2000 | Bulk | Active | Panel Mount | Standard | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Black | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
GHLDUBXSWITCH PB SPDT 2A 48VDC |
3,382 |
|
Datasheet | GH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST | On-On | 2A (DC) | - | 48 V | Round, Button | - | Blue | - | - | Solder Lug | IP40 | - | Circular - 10.00mm Dia | -25°C ~ 55°C |
|
|
GHLDGBXSWITCH PB SPDT 2A 48VDC |
2,346 |
|
Datasheet | GH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST | On-On | 2A (DC) | - | 48 V | Round, Button | - | Green | - | - | Solder Lug | IP40 | - | Circular - 10.00mm Dia | -25°C ~ 55°C |
|
|
GHLDRBXSWITCH PB SPDT 2A 48VDC |
1,311 |
|
Datasheet | GH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST | On-On | 2A (DC) | - | 48 V | Round, Button | - | Red | - | - | Solder Lug | IP40 | - | Circular - 10.00mm Dia | -25°C ~ 55°C |
|
LB26SKW01SWITCH PUSHBUTTON DPDT 3A 125V |
1,319 |
|
Datasheet | LB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 70°C |
|
|
ULV7F2BSS615SWITCH PB ON-MOM RED |
1,588 |
|
Datasheet | ULV7 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
|
ULV7F2BSS635SWITCH PB ON-MOM GRN |
1,434 |
|
Datasheet | ULV7 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
KP0115ANBKG03CJBSWITCH PUSH SPST-NO 0.1A 12V |
3,542 |
|
Datasheet | KP | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 2 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
|
A22NN-MNM-NRA-G100-NNSWITCH PUSH SPST-NO 10A 120V |
1,661 |
|
Datasheet | A22NN | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | Red | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
PVB3H230SS3R1ANTI-VANDAL, 2A, SPDT, ON-ON |
4,747 |
|
Datasheet | PVB3 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 500mA (AC), 2A (DC) | 220 V | 24 V | Round, Button | - | Silver | LED, Blue/Green/Red | 1.8, 2.8, 2.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
YB15RKW01-EBSWITCH PUSHBUTTON SPDT 3A 125V |
4,472 |
|
Datasheet | YB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Yellow (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
