Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CH2LEBRG12SSWITCH PB DPDT 1A 125VAC |
4,117 |
|
Datasheet | CH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 1A (AC/DC) | 125 V | 24 V | Round, Button | - | Black | LED, Green/Red | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
AH1NASXTSWITCH PB DPST-NO/NC 1A 125V |
1,944 |
|
Datasheet | AH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST-NO + SPST-NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | - | - | Screw Terminal | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1NABXTSWITCH PB DPST-NO/NC 1A 125V |
1,808 |
|
Datasheet | AH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST-NO + SPST-NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Black | - | - | Screw Terminal | IP67 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
DHU251NAGXZBSWITCH PB SPDT 16A 125V |
1,273 |
|
Datasheet | DHU | Tray | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Green | - | - | Quick Connect - 0.110"/0.250" | IP67 - Dust Tight, Waterproof | - | Circular - 25.00mm Dia | -40°C ~ 85°C |
|
|
DHU251NARXZBSWITCH PB SPDT 16A 125V |
2,371 |
|
Datasheet | DHU | Tray | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Red | - | - | Quick Connect - 0.110"/0.250" | IP67 - Dust Tight, Waterproof | - | Circular - 25.00mm Dia | -40°C ~ 85°C |
|

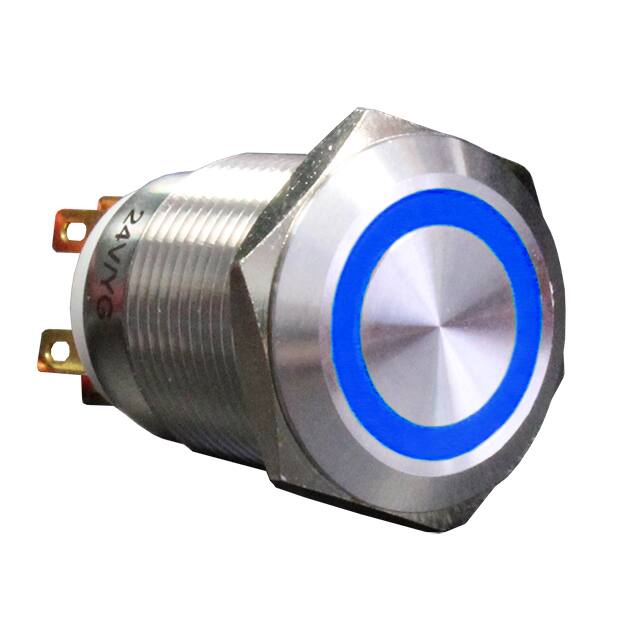

AH1NBSB24SWITCH PB DPST-NO/NC 1A 125V |
2,490 |
|
Datasheet | AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -25°C ~ 70°C |
|

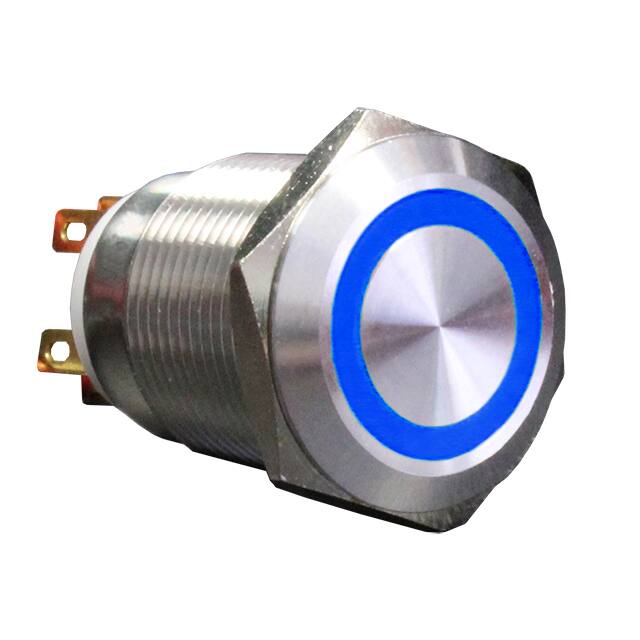

AH1NBSB12SWITCH PB DPST-NO/NC 1A 125V |
1,021 |
|
Datasheet | AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1NBBRNSWITCH PB DPST-NO/NC 1A 125V |
4,635 |
|
Datasheet | AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Black | LED, Red | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1NBBGNSWITCH PB DPST-NO/NC 1A 125V |
3,115 |
|
Datasheet | AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Black | LED, Green | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
BH16NLBBRGBSWITCH PB SPST 1A 125VAC |
4,049 |
|
Datasheet | BH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button | - | Black | LED, Blue/Green/Red | 2.1, 3.3, 3.3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
