Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AVH22LSSFE16121604SWITCH PUSHBUTTON SPDT 16A 125V |
1,420 |
|
Datasheet | AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Green | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -25°C ~ 85°C |
|

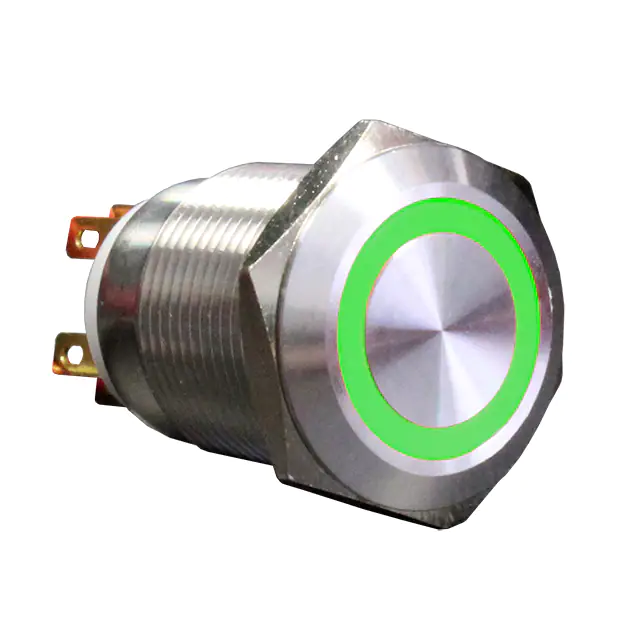

AH1NBSGNSWITCH PB DPST-NO/NC 1A 125V |
2,700 |
|
Datasheet | AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -25°C ~ 70°C |
|

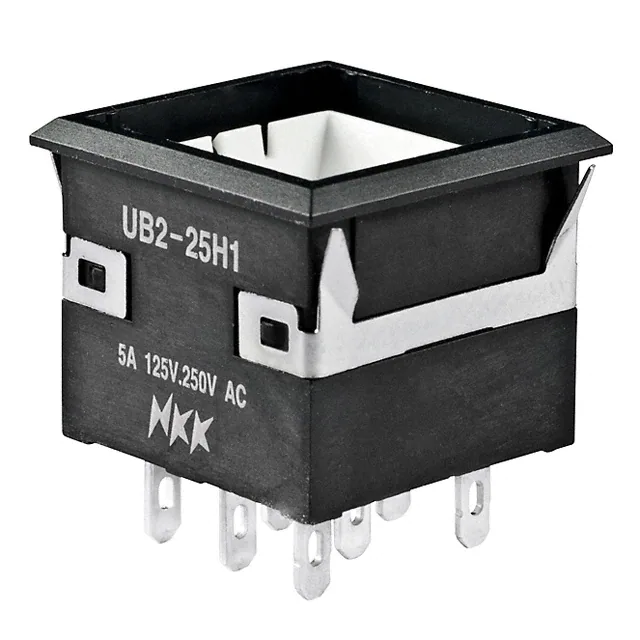

UB225KKW015CSWITCH PUSHBUTTON DPDT 5A 125V |
2,764 |
|
Datasheet | UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
AV2520E112Q04SWITCH PUSHBUTTON DPDT 3A 250V |
2,502 |
|
Datasheet | AV25 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, White | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
.jpg)
|
AV2520M624Q04SWITCH PUSHBUTTON DPDT 3A 250V |
4,999 |
|
Datasheet | AV25 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Moving LED Ring, Power Symbol | Circular - 25.20mm Dia | -20°C ~ 55°C |
|

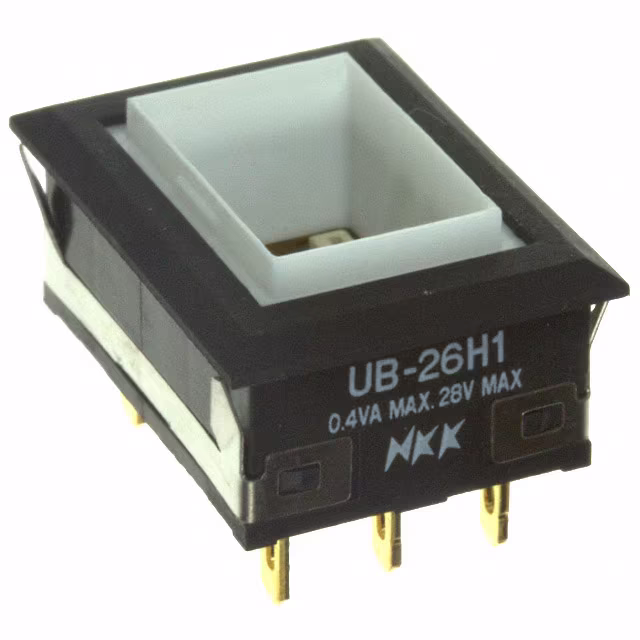

UB26NKG015DSWITCH PUSH DPDT 0.4VA 28V |
2,245 |
|
Datasheet | UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Amber | 2 VDC | Solder Lug | - | Stainless Steel | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
PV4F2B0SS-343-M26SWITCH PB SPDT 2A 24V |
3,275 |
|
Datasheet | PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | - | Silver | LED, Blue | 6 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
|
D16OAT120WHTSWITCH PUSHBUTTON DPDT 8A 125V |
2,413 |
|
Datasheet | D16 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 8A (AC), 6A (DC) | 125 V | 24 V | Rectangular, Button | No Marking | White | - | - | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
AVH19MSFE7122604SWITCH PUSHBUTTON SPDT 26A 125V |
100 |
|
Datasheet | AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 26A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
1-2364571-9SWITCH PUSHBUTTON SPDT 26A 125V |
100 |
|
Datasheet | AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 26A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
|
UB25NBKG015C-CCSWITCH PUSHBUTTON DPDT 0.4VA 28V |
2,793 |
|
Datasheet | UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Red | LED, Red | 1.85 VDC | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
1.15.210.001/0101LUMOSTAST 16 PB NON-ILLUMINABLE |
3,022 |
|
Datasheet | LUMOTAST 16 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 100mA (AC/DC) | 35 V | 35 V | Round, Button, Flush | No Marking | Black | - | - | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 70°C |
|
AV1920P112Q04SWITCH PUSHBUTTON DPDT 3A 250V |
3,385 |
|
Datasheet | AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Silver | LED, White | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
UB26NBKG015CSWITCH PUSH DPDT 0.4VA 28V |
1,593 |
|
Datasheet | UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
SW-PB10-BAA2QE-4HIGH PERFORMANCE SEALED PUSHBUTT |
1,428 |
|
Datasheet | SW | Tray | Active | Panel Mount, Rear | Standard | DPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | IP68 - Dust Tight, Waterproof | - | - | -30°C ~ 85°C |
|
|
8436WCDBSWITCH PUSH SPDT 0.4VA 20V |
4,757 |
|
Datasheet | 8000 | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | Silver | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -40°C ~ 85°C |
|
1241.2820SWITCH PUSH SPST-NO 125MA 48V |
4,923 |
|
Datasheet | MCS | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | - | - | PC Pin | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 19.00mm Dia | -25°C ~ 60°C |
|
UB225KKG015FSWITCH PUSHBUTTON DPDT 0.4VA 28V |
1,287 |
|
Datasheet | UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
AVH25MSSFO001604SWITCH PUSHBUTTON SPDT 16A 125V |
2,901 |
|
Datasheet | AVH | Box | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | - | - | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 85°C |
|
AVH19MSFE3121604SWITCH PUSHBUTTON SPDT 16A 125V |
2,107 |
|
Datasheet | AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
