Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

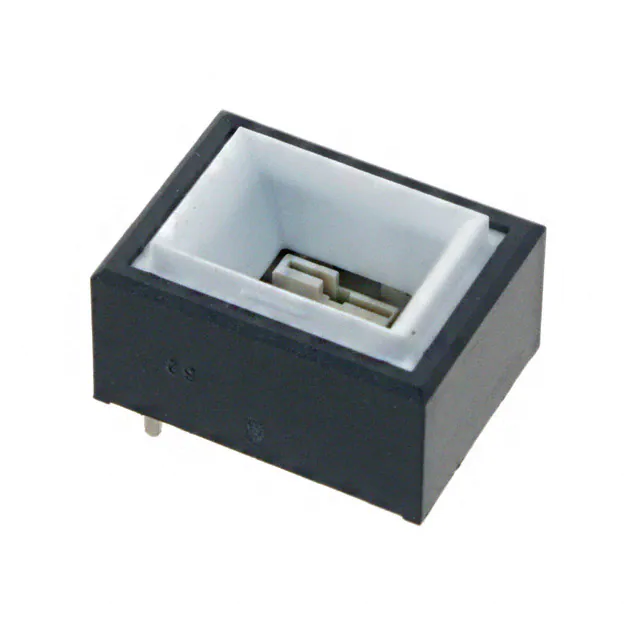

UB15RKW03NSWITCH PUSHBUTTON SPDT 5A 125V |
3,551 |
|
Datasheet | UB | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -20°C ~ 70°C |
|

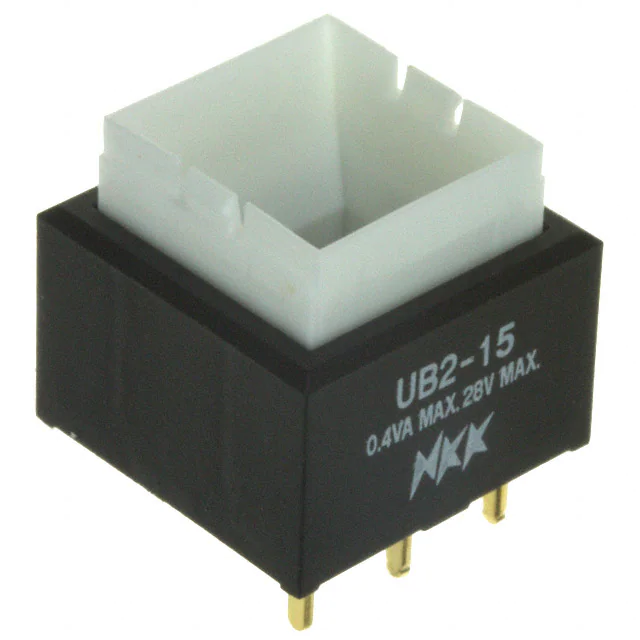

UB215SKG03NSWITCH PUSH SPDT 0.4VA 28V |
4,010 |
|
Datasheet | UB2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Sealed - Fully | - | -25°C ~ 70°C |
|
EH12NLSSBBSWITCH PB SPST-NO 2A 48V |
4,572 |
|
Datasheet | EH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Silver | LED, Blue | 3.3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 12.00mm Dia | -20°C ~ 70°C |
|
CTHS15CIC05ARROWSWITCH PUSH CAPACITIVE ILLUM SQ |
3,782 |
|
Datasheet | CTH | Tube | Active | Through Hole | Capacitive, Illuminated | - | Off-On | - | - | - | Square, Button | Arrow, Right | Black | LED, Green | 3.2 VDC | PC Pin | - | - | - | - |
|
UB215KKW01NSWITCH PUSHBUTTON SPDT 5A 125V |
4,514 |
|
Datasheet | UB2 | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | RTV Adhesive Sealant on Terminals | Square - 17.40mm x 17.40mm | -25°C ~ 70°C |
|
|
M2B15AA5A13SWITCH PUSHBUTTON SPDT 1A 125V |
1,434 |
|
Datasheet | M2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
GP12MSABESWITCH PUSH SPDT 0.4VA 20V |
2,588 |
|
Datasheet | GP | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | Gull Wing | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
ELUMEESAQ2C12SWITCH PUSH SPDT 0.25A 50V |
1,568 |
|
Datasheet | ELUM™ | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard, Illuminated | SPDT | On-On | 250mA (DC) | - | 50 V | Rectangular, Button | No Marking | Black | LED, Green/Red | 2 VDC | Gull Wing | - | - | - | -40°C ~ 80°C |
|
|
UB15RKG03N-FSWITCH PUSH SPDT 0.4VA 28V |
3,782 |
|
Datasheet | UB | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Green | - | - | PC Pin | - | Process Sealed | - | -20°C ~ 70°C |
|
|
UB26SKW03N-BSWITCH PUSHBUTTON DPDT 5A 125V |
1,100 |
|
Datasheet | UB | Bulk | Active | Through Hole | Standard | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | White | - | - | PC Pin | - | Stainless Steel | - | -20°C ~ 70°C |
|
|
UB25NBKW01N-BSWITCH PUSHBUTTON DPDT 5A 125V |
1,434 |
|
Datasheet | UB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | White | - | - | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -20°C ~ 70°C |
|
|
W48-E-RB-R-BK-BSWITCH PUSHBUTTON 10MA 12V |
3,271 |
|
Datasheet | W48 | Tube | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO (DM) | Off-Mom | 10mA (DC) | - | 12 V | Round, Button, Domed | - | Black | LED, Red | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 13.42mm Dia | -40°C ~ 85°C |
|
23-4SWITCH PUSH SPST-NO 0.25A 115V |
4,265 |
|
Datasheet | 23 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 250mA (AC) | 115 V | - | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | - | - | -40°C ~ 85°C |
|
|
W48-G-RB-G-BK-BSWITCH PUSHBUTTON 10MA 12V |
4,753 |
|
Datasheet | W48 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO (DM) | Off-Mom | 10mA (DC) | - | 12 V | Round, Button, Domed | - | Black | LED, Green/Red | 2.0, 3.4 VDC | PC Pin | IP67 - Dust Tight, Waterproof | - | Circular - 13.42mm Dia | -40°C ~ 85°C |
|
TP11MS9V3BESWITCH PUSH SPST-NO 0.4VA 20V |
1,365 |
|
Datasheet | TP | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
ULV4F23SLL41L17SWITCH PUSHBUTTON SPDT 3A 125V |
1,454 |
|
Datasheet | ULV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
DB2511PSWITCH PUSHBUTTON SPDT 0.4VA 28V |
1,658 |
|
Datasheet | DB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
W48-1-RMC-N-WH-BPBS 12MM SPST 0.1A 48V MOM METAL |
3,367 |
|
Datasheet | W48 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10mA (AC) | 12 V | - | Round, Button, Domed | - | White | - | - | Quick Connect - 0.110" (2.8mm), Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 13.42mm Dia | -40°C ~ 85°C |
|

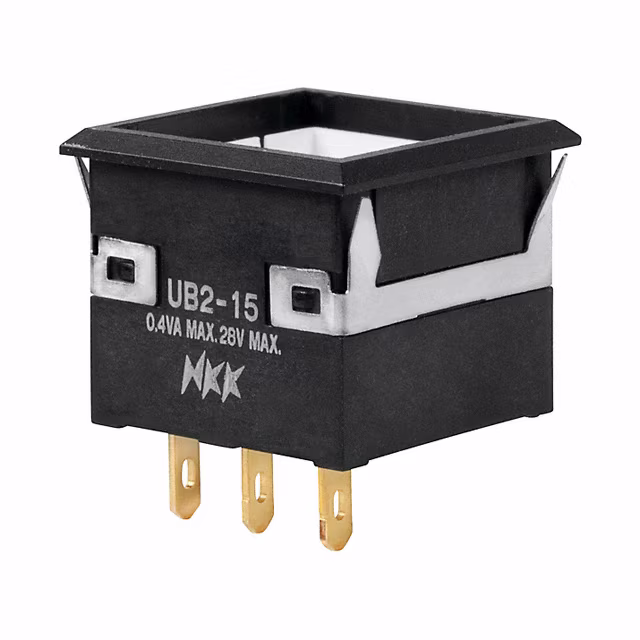

UB215KKG01NSWITCH PUSH SPDT 0.4VA 28V |
2,357 |
|
Datasheet | UB2 | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Pulse 300 ms | Square - 17.40mm x 17.40mm | -25°C ~ 70°C |
|
8168LH9AV3GE2SWITCH PUSHBUTTON SPDT 6A 120V |
3,504 |
|
Datasheet | 8060 | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 65°C |
