Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
13435CDGKSWITCH PUSH SPDT 0.1A 30V |
3,771 |
|
Datasheet | 13000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | Black | - | - | Solder Lug | Environment Sealed | - | Circular - 6.50mm Dia | -40°C ~ 85°C |
|
A165L-JYM-12D-2SWITCH PUSHBUTTON DPDT 5A 125V |
3,186 |
|
Datasheet | A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC) | 125 V | - | Rectangular, Button | No Marking | Yellow | LED, Yellow | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
IPR3FAD6L0SSWITCH PUSH SPST-NO 0.5A 48V |
1,529 |
|
Datasheet | IP | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 500mA (AC), 200mA (DC) | 48 V | 48 V | Round, Button | No Marking | Red | LED, Red | 2 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 13.60mm Dia | -40°C ~ 125°C |
|
K14-131.121101SWITCH PB DPST-NO/NC 5A 250V |
3,129 |
|
Datasheet | 14 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC/DC) | 250 V | 250 V | Round, Button, Flush | No Marking | Red | LED, Red | 24 VAC/DC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
A165L-JWA-24D-1SWITCH PUSHBUTTON SPDT 5A 125V |
1,262 |
|
Datasheet | A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 5A (AC) | 125 V | - | Rectangular, Button | No Marking | White | LED, White | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
14-132.025SWITCH PB 4PST-2NO/2NC 5A 250V |
2,742 |
|
Datasheet | 14 | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Round, Button (Not Included) | No Marking | - | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
1241.3428SWITCH PUSH SPST-NO 100MA 42V |
2,664 |
|
- |
PSE | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Silver | - | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 22.30mm Dia | -40°C ~ 85°C |
|
|
A3CA-90A0-YSWITCH PUSHBUTTON DPST 1A 125V |
4,560 |
|
Datasheet | A3C | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Yellow | - | - | Solder Lug | IP40 | - | Circular - 12.00mm Dia | -10°C ~ 55°C |
|
TS-221-GE11PUSH BUTTON SWITCHES, THREE POLE |
4,125 |
|
Datasheet | TS | Box | Active | Panel Mount, Front | Standard | 3PDT | On-Mom | 5A (DC) | - | 32 V | Round, Button | No Marking | Yellow | - | - | Connector | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 90°C |
|
A165L-AGA-24D-2SWITCH PUSHBUTTON DPDT 5A 125V |
2,260 |
|
Datasheet | A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC) | 125 V | - | Square, Button | No Marking | Green | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
01-261.022SWITCH PB DPST-NO/NC 5A 250V |
2,360 |
|
Datasheet | 01 | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Rectangular, Button (Not Included) | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
MPI002/TERM/BLSWITCH PUSH SPST-NO 0.05A 24V |
1,200 |
|
Datasheet | - | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 3.5 VDC | Screw Terminal | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
3SU11500AB101FA0PUSHBUTTON. BLACK |
3,148 |
|
Datasheet | 3SU1 | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | No Marking | Black | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

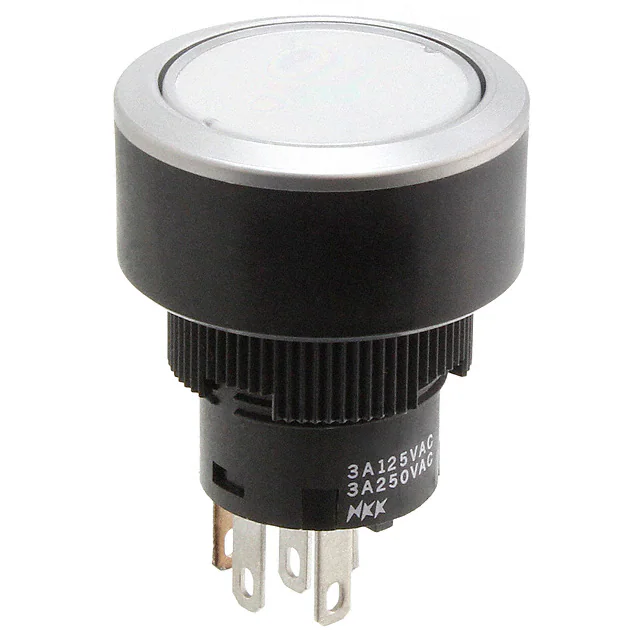

YB215CWCPW01-6F-JSSWITCH PUSHBUTTON SPDT 3A 125V |
1,526 |
|
Datasheet | YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Silver | LED, Green | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
A16L-TYM-5D-2SWITCH PUSHBUTTON DPDT 5A 125V |
2,259 |
|
Datasheet | A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button | No Marking | Yellow | LED, Yellow | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
|
YB215CWCPW01-6B-JSSWITCH PUSHBUTTON SPDT 3A 125V |
1,503 |
|
Datasheet | YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Silver | LED, White | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
PV10FWV0SS-341SWITCH PB 4PST-2NO/2NC 2A 48V |
4,743 |
|
Datasheet | PV10 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | 4PST-2NO/2NC | On-Mom, Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 2.8 VDC | Wire Leads | IP65 - Dust Tight, Water Resistant | - | Circular - 40.00mm Dia | -20°C ~ 55°C |
|
A165L-TWM-24D-2SWITCH PUSHBUTTON DPDT 5A 125V |
3,740 |
|
Datasheet | A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button | No Marking | White | LED, White | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
A165L-ARA-12D-1SWITCH PUSHBUTTON SPDT 5A 125V |
2,641 |
|
Datasheet | A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 5A (AC) | 125 V | - | Square, Button | No Marking | Red | LED, Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
1241.6824.1112000SWITCH PUSHBUTTON SPST 12A 250V |
2,700 |
|
Datasheet | MSM LA | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 12A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Silver | LED, Green | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 19.10mm Dia | -20°C ~ 85°C |
