Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C7053AFBG2DPST PUSH BUTTON SWITCH GREEN |
2,165 |
|
Datasheet | 7000 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST | On-Off | 16A (AC) | 250 V | - | Round, Button | No Marking | Green | Neon, Green | 125 VAC | Quick Connect - 0.250" (6.3mm) | IP40 | - | Circular - 25.00mm Dia | - |
|
|
A8301RPSPST PUSH BUTTON SWITCH VANDAL |
4,479 |
|
Datasheet | 8300 | Bulk | Active | Panel Mount, Snap-In | Anti-Vandal | SPST-NO | Off-Mom | 12A (AC) | 250 V | - | Round, Button | No Marking | Silver | - | - | Quick Connect - 0.187" (4.7mm) | IP66 - Dust Tight, Water Resistant | - | Circular - 19.20mm Dia | - |
|
|
MP0044/116MM SS ROBUST SWITCH |
3,631 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
|
MP0044/216MM SS ROBUST SWITCH |
4,900 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
MP0045/1D2AM012SSWITCH PB DPST MOM ILLUM AMB |
2,047 |
|
Datasheet | - | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Amber | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.20mm Dia | -20°C ~ 55°C |
|
|
MP0045/1D1AM012SWITCH PUSHBUTTON DPDT 3A 250V |
4,123 |
|
Datasheet | - | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Amber | 12 VDC | Solder Lug | - | Stainless Steel | Circular - 16.20mm Dia | -20°C ~ 55°C |
|
MP0045/1D1RD012SWITCH PUSHBUTTON DPDT 3A 250V |
2,241 |
|
Datasheet | - | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 12 VDC | Solder Lug | IP40 | Stainless Steel | Circular - 16.20mm Dia | -20°C ~ 55°C |
|
MP0045/1D2AM012SWITCH PUSHBUTTON DPDT 3A 250V |
1,836 |
|
Datasheet | - | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Amber | 12 VDC | Solder Lug | IP40 | Stainless Steel | Circular - 16.20mm Dia | -20°C ~ 55°C |
|

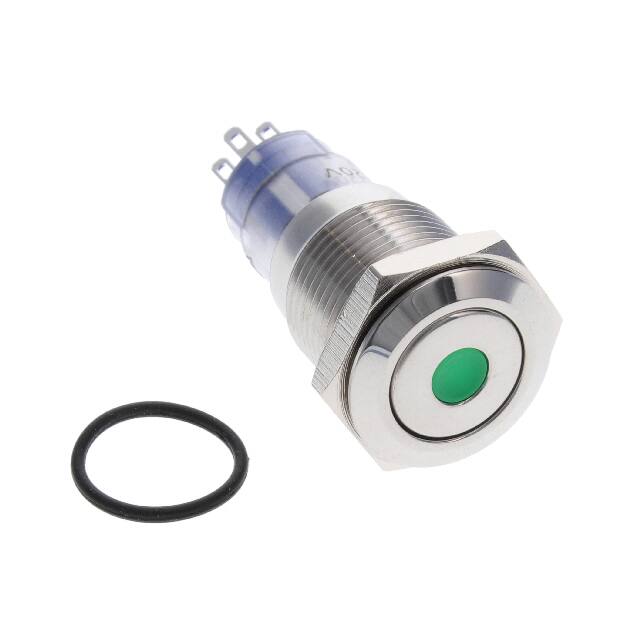

MP0045/1E1GN220SSWITCH PB DPST ON-OFF ILLUM GRN |
4,541 |
|
Datasheet | - | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 220 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.20mm Dia | -20°C ~ 55°C |
|
MP0045/1E1AM012SSWITCH PB DPST ON-OFF ILLUM AMB |
2,673 |
|
Datasheet | - | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Amber | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.20mm Dia | -20°C ~ 55°C |
