Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AVH25LSSFE16121604SWITCH PUSHBUTTON SPDT 16A 125V |
3,404 |
|
Datasheet | AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Green | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 85°C |
|
|
UB226SKG036CF-1JBSWITCH PUSH DPDT 0.4VA 28V |
2,049 |
|
Datasheet | UB2 | Tray | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.1, 3.5 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|
|
UB226KKG016CF-1JBSWITCH PUSHBUTTON DPDT 0.4VA 28V |
4,398 |
|
Datasheet | UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.1, 3.5 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
MP0045/3D0NN000SWITCH PUSHBUTTON DPDT 3A 250V |
1,795 |
|
Datasheet | - | Tray | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button | No Marking | Silver | - | - | Solder Lug | IP40 | Stainless Steel | Circular - 16.20mm Dia | -20°C ~ 55°C |
|

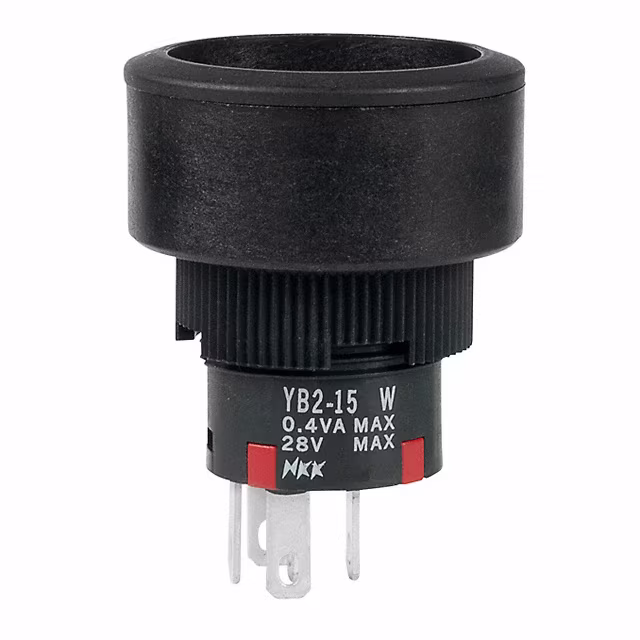

YB215CWCKG01SWITCH PUSH SPDT 0.4VA 28V |
4,272 |
|
Datasheet | YB2 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
DH301NBBRNSWITCH PB DPST-NO/NC 2A 125V |
3,334 |
|
Datasheet | DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Black | LED, Red | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 30.00mm Dia | -25°C ~ 70°C |
|
YB225CWCPW01-N-PSWITCH PUSHBUTTON DPDT 3A 125V |
1,288 |
|
Datasheet | YB2 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Brushed Chrome | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
YB15MKG01-5F12-JFSWITCH PUSH SPDT 0.4VA 28V |
3,969 |
|
Datasheet | YB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
IFS3Z1AD200SWITCH PUSH SPST-NO 0.4A 32V |
4,567 |
|
Datasheet | IF | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 400mA (AC), 100mA (DC) | 32 V | 50 V | Round, Button | No Marking | Black | - | - | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 16.00mm Dia | -20°C ~ 85°C |
|
IFS3Z1AD300SWITCH PUSH SPST-NO 0.4A 32V |
4,145 |
|
Datasheet | IF | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 400mA (AC), 100mA (DC) | 32 V | 50 V | Round, Button | No Marking | Green | - | - | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 16.00mm Dia | -20°C ~ 85°C |
|
|
DH251LGURBNSWITCH PB DPST-NO/NC 2A 125V |
3,624 |
|
Datasheet | DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT (DB/DM) | On-On | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | Standby Symbol | Blue | LED, Blue/Red | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.00mm Dia | -25°C ~ 70°C |
|

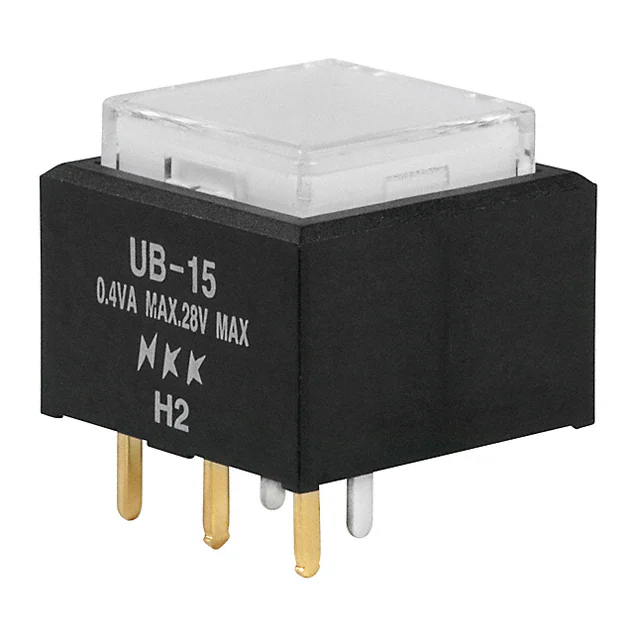

UB15SKG036G-JBSWITCH PUSH SPDT 0.4VA 28V |
3,013 |
|
Datasheet | UB | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 2.9 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
30-252 REDSWITCH PUSH SPST-NC 1A 115V |
4,378 |
|
Datasheet | 30 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 1A (AC) | 115 V | - | Round, Button | No Marking | Red | - | - | Solder Lug | - | Sealed - Fully | Circular - 6.75mm Dia | -40°C ~ 85°C |
|
|
PV9F2Y0SS-315SWITCH PB DPST-NO/NC 2A 48V |
2,844 |
|
Datasheet | PV9, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | - | Silver | LED, Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Water Resistant | - | Circular - 28.00mm Dia | -20°C ~ 55°C |
|
|
DH301NBSB12SWITCH PB DPST-NO/NC 2A 125V |
4,013 |
|
Datasheet | DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 30.00mm Dia | -25°C ~ 70°C |
|
ILR3SAD2L0WSWITCH PUSHBUTTON SPST-NO 2A 24V |
1,766 |
|
Datasheet | IL | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 24 V | Round, Button, Domed | No Marking | Black | LED, White | 3.35 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
A16-JYM-1SWITCH PUSHBUTTON SPDT 5A 125V |
2,396 |
|
Datasheet | A16 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (AC) | 125 V | - | Rectangular, Button | No Marking | Yellow | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
|
YB16CKW01-5D12-JDSWITCH PUSHBUTTON SPDT 3A 125V |
2,676 |
|
Datasheet | YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
DH252LBBRGNSWITCH PB 4PST-2NO/2NC 2A 125V |
1,931 |
|
Datasheet | DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Black | LED, Green/Red | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.00mm Dia | -25°C ~ 70°C |
|
A22NL-BGM-TGA-G202-GCSWITCH PUSH DPST-NC 10A 120V |
3,564 |
|
Datasheet | A22NL | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NC | On-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button, Full Guard | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 24 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | Full Guard Bezel | Circular - 22.30mm Dia | -25°C ~ 55°C |
