Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AVH19MSFO001604SWITCH PUSHBUTTON SPDT 16A 125V |
3,696 |
|
Datasheet | AVH | Box | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | - | - | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
LP0125CCKW015CBSWITCH PUSHBUTTON DPDT 3A 125V |
3,494 |
|
Datasheet | LP01 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | White | LED, Red | 2.05 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 16.00mm Dia | -10°C ~ 50°C |
|

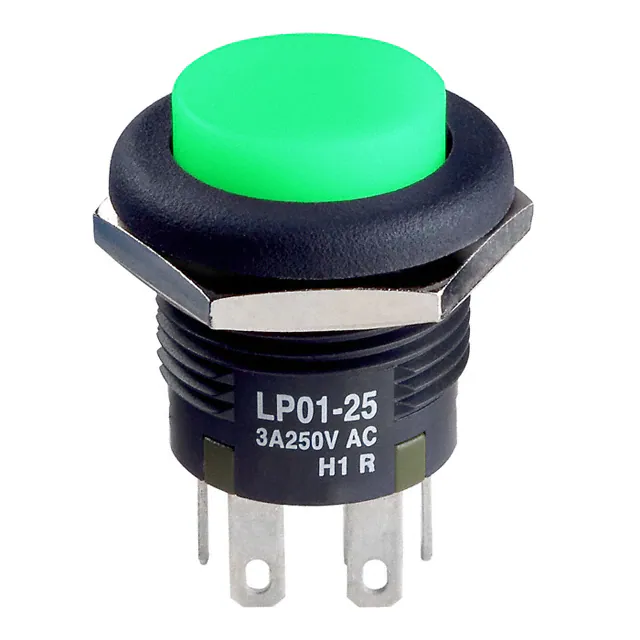

LP0125CCKW015FBSWITCH PUSHBUTTON DPDT 3A 125V |
1,292 |
|
Datasheet | LP01 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | White | LED, Green | 2.1 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 16.00mm Dia | -10°C ~ 50°C |
|
LB25CKW01-BSWITCH PUSHBUTTON DPDT 3A 125V |
2,900 |
|
Datasheet | LB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
LB25CKW01-FSWITCH PUSHBUTTON DPDT 3A 125V |
3,188 |
|
Datasheet | LB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
YB26WSKW01-EBSWITCH PUSHBUTTON DPDT 3A 125V |
1,561 |
|
Datasheet | YB | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Yellow (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
AV1911R324Q04SWITCH PUSHBUTTON SPDT 3A 250V |
1,872 |
|
Datasheet | AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Fixed LED Ring | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
1.12.000.501/0000SWITCH PUSH DPST 4A 250V |
4,050 |
|
Datasheet | KN 19 | Bulk | Active | Through Hole | Keyswitch, Illuminated | DPST | Off-On | 4A (AC/DC) | 250 V | 50 V | Square, Button | No Marking | - | - | - | PC Pin | IP40 | - | - | -25°C ~ 70°C |
|

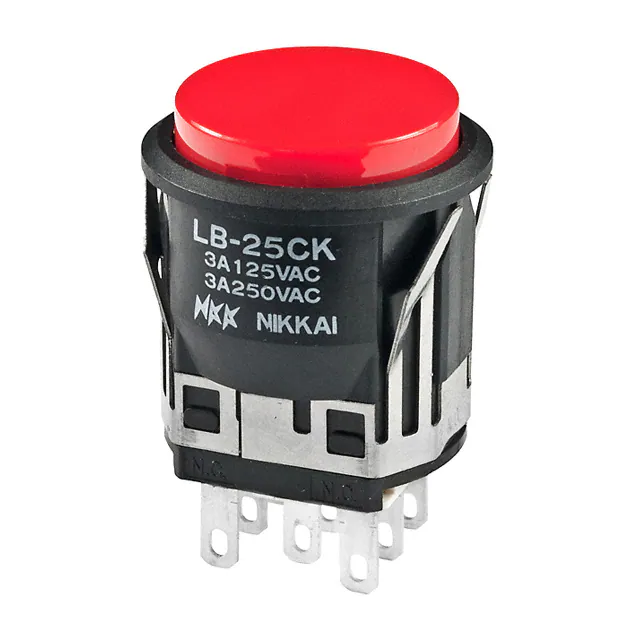

LB25CKW01-CSWITCH PUSHBUTTON DPDT 3A 125V |
1,843 |
|
Datasheet | LB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
LB26SKW01-5F-JFSWITCH PUSHBUTTON DPDT 3A 125V |
4,488 |
|
Datasheet | LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.1 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
PV4F230SS-301SWITCH PUSHBUTTON SPDT 2A 24V |
2,728 |
|
Datasheet | PV4, LAMB | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, White | 2.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|

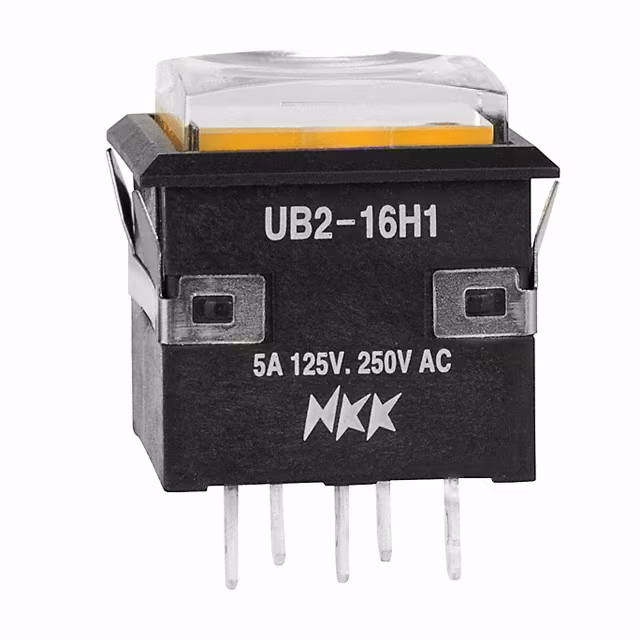

UB216KKW015D-1JDSWITCH PUSHBUTTON SPDT 5A 125V |
3,674 |
|
Datasheet | UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 2 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
.jpg)
|
AV2521M324Q04SWITCH PUSHBUTTON DPDT 3A 250V |
3,335 |
|
Datasheet | AV25 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Moving LED Ring, Power Symbol | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
AV2520E712Q04SWITCH PUSHBUTTON DPDT 3A 250V |
3,064 |
|
Datasheet | AV25 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
ULV4F23SS331SWITCH PUSHBUTTON SPDT 3A 125V |
2,477 |
|
Datasheet | ULV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 3 VDC | - | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
AH1LASXSWITCH PB DPST-NO/NC 1A 125V |
3,871 |
|
Datasheet | AH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST-NO + SPST-NC | On-Off, Off-On | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
MMP0120/NNB67/PSWITCH PUSHBUTTON SPST-NO 2A 36V |
1,958 |
|
Datasheet | MMP0120 | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Silver | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
AV2211000Q04SWITCH PUSHBUTTON SPDT 3A 250V |
3,373 |
|
Datasheet | AV22 | Tray | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
DH22U1NBSG24SWITCH PB SPDT 3A 125V |
4,010 |
|
Datasheet | DH22U | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
4743A02UUSWITCH PUSH DPST-NO 6A 125V |
4,643 |
|
Datasheet | 4700 | Bulk | Active | Panel Mount, Rear | Standard | DPST-NO | Off-Mom | 6A (AC) | 125 V | - | Round, Plunger | No Marking | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 12.20mm Dia | -20°C ~ 65°C |
