Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BH16NGSBRSWITCH PB SPST 1A 125V |
2,527 |
|
Datasheet | BH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button, Flush | No Marking | Silver | LED, Red | 2.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
4731A02UUSWITCH PUSHBUTTON SPST 6A 125V |
1,220 |
|
Datasheet | 4700 | Bulk | Active | Panel Mount, Rear | Standard | SPST | On-Off | 6A (AC) | 125 V | - | Round, Plunger | No Marking | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 12.20mm Dia | -20°C ~ 65°C |
|
SW-PB5-AA2BG112V-IP40-8INDUSTRITAL PUSHBUTTON SWITCH, 1 |
2,487 |
|
Datasheet | SW | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 110 V | 24 V | Round, Button | No Marking | Green | LED, Green | 12 VAC/DC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 17.00mm Dia | -25°C ~ 55°C |
|
SW-PB5-AA2BR112V-IP40-8INDUSTRITAL PUSHBUTTON SWITCH, 1 |
2,169 |
|
Datasheet | SW | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 110 V | 24 V | Round, Button | No Marking | Red | LED, Red | 12 VAC/DC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 17.00mm Dia | -25°C ~ 55°C |
|
|
UB15NKW01N-ASWITCH PUSHBUTTON SPDT 5A 125V |
2,813 |
|
Datasheet | UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Black | - | - | Solder Lug | - | Process Sealed | Rectangular - 22.40mm x 16.20mm | -20°C ~ 70°C |
|
|
933SWITCH PUSH SPDT 0.25A 125V |
3,270 |
|
Datasheet | 933 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 250mA (AC/DC) | 125 V | 48 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | - | - |
|
|
UB16SKW03N-CSWITCH PUSHBUTTON SPDT 5A 125V |
1,003 |
|
Datasheet | UB | Tray | Active | Through Hole | Standard | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red | - | - | PC Pin | - | Process Sealed | - | -20°C ~ 70°C |
|
|
UB16SKW03N-FSWITCH PUSHBUTTON SPDT 5A 125V |
2,457 |
|
Datasheet | UB | Bulk | Active | Through Hole | Standard | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green | - | - | PC Pin | - | Process Sealed | - | -20°C ~ 70°C |
|
39-12SWITCH PUSH SPST-NO 0.5A 115V |
4,404 |
|
Datasheet | 39 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC) | 115 V | - | Round, Plunger | No Marking | Red | - | - | Solder Lug | - | Overtravel | Circular - 4.37mm Dia | -40°C ~ 85°C |
|
|
LB22F2GQ7SWITCH PB DPDT 3A 250V |
1,580 |
|
Datasheet | LB22 | Tray | Active | Panel Mount, Front | Anti-Vandal | DPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | - | Silver | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
|
UB215SKW03N-4JBSWITCH PUSHBUTTON SPDT 5A 125V |
4,273 |
|
Datasheet | UB2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | - | - | PC Pin | - | Sealed - Fully | - | -25°C ~ 70°C |
|
|
UB215SKW03N-4JFSWITCH PUSHBUTTON SPDT 5A 125V |
4,928 |
|
Datasheet | UB2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | - | - | PC Pin | - | Sealed - Fully | - | -25°C ~ 70°C |
|
8161SHCBE2SWITCH PUSH SPDT 0.4VA 20V |
2,775 |
|
Datasheet | 8060 | Tray | Active | Panel Mount, Rear | Standard | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
PV6F240NN-331SWITCH PUSHBUTTON SPST 2A 48V |
4,660 |
|
Datasheet | PV6, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Green | 2.8 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
DB2511BSWITCH PUSHBUTTON SPDT 0.4VA 28V |
3,092 |
|
Datasheet | DB | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -10°C ~ 70°C |
|

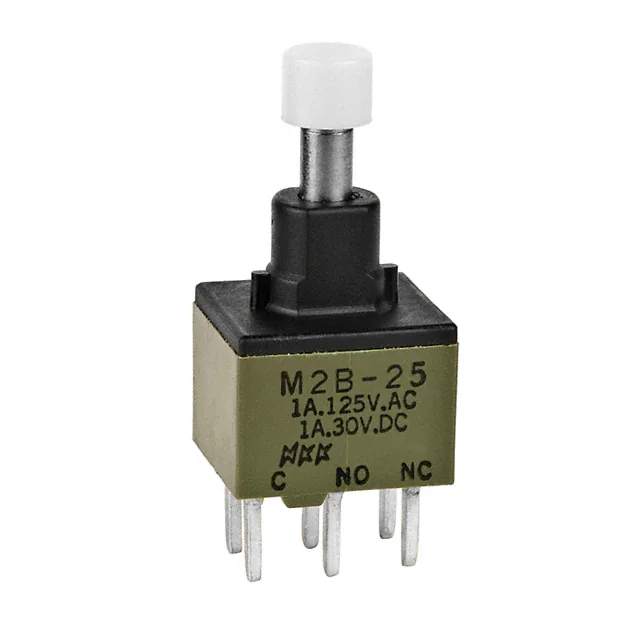

M2B25AA5W03-FBSWITCH PUSHBUTTON DPDT 1A 125V |
3,395 |
|
Datasheet | M2 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
8533TZQE2SWITCH PUSH SPST-NC 1A 120V |
1,425 |
|
Datasheet | 8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 11.91mm Dia | -30°C ~ 65°C |
|

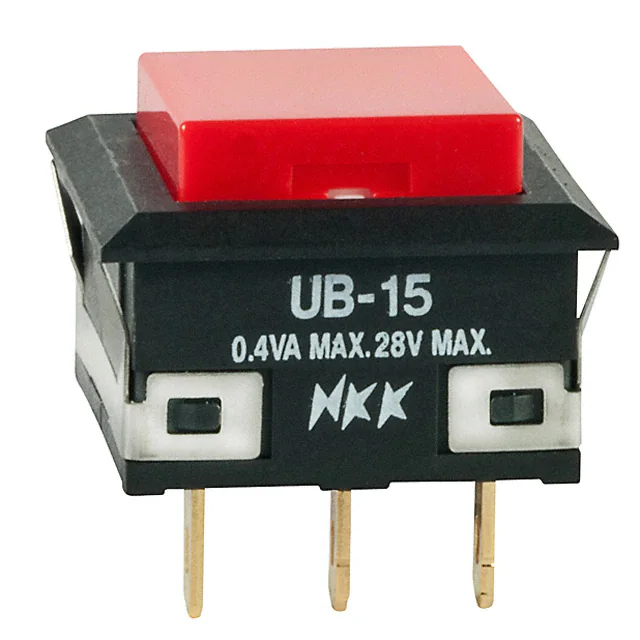

UB15KKG01N-CSWITCH PUSH SPDT 0.4VA 28V |
1,900 |
|
Datasheet | UB | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Red | - | - | Solder Lug | - | Overtravel | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|

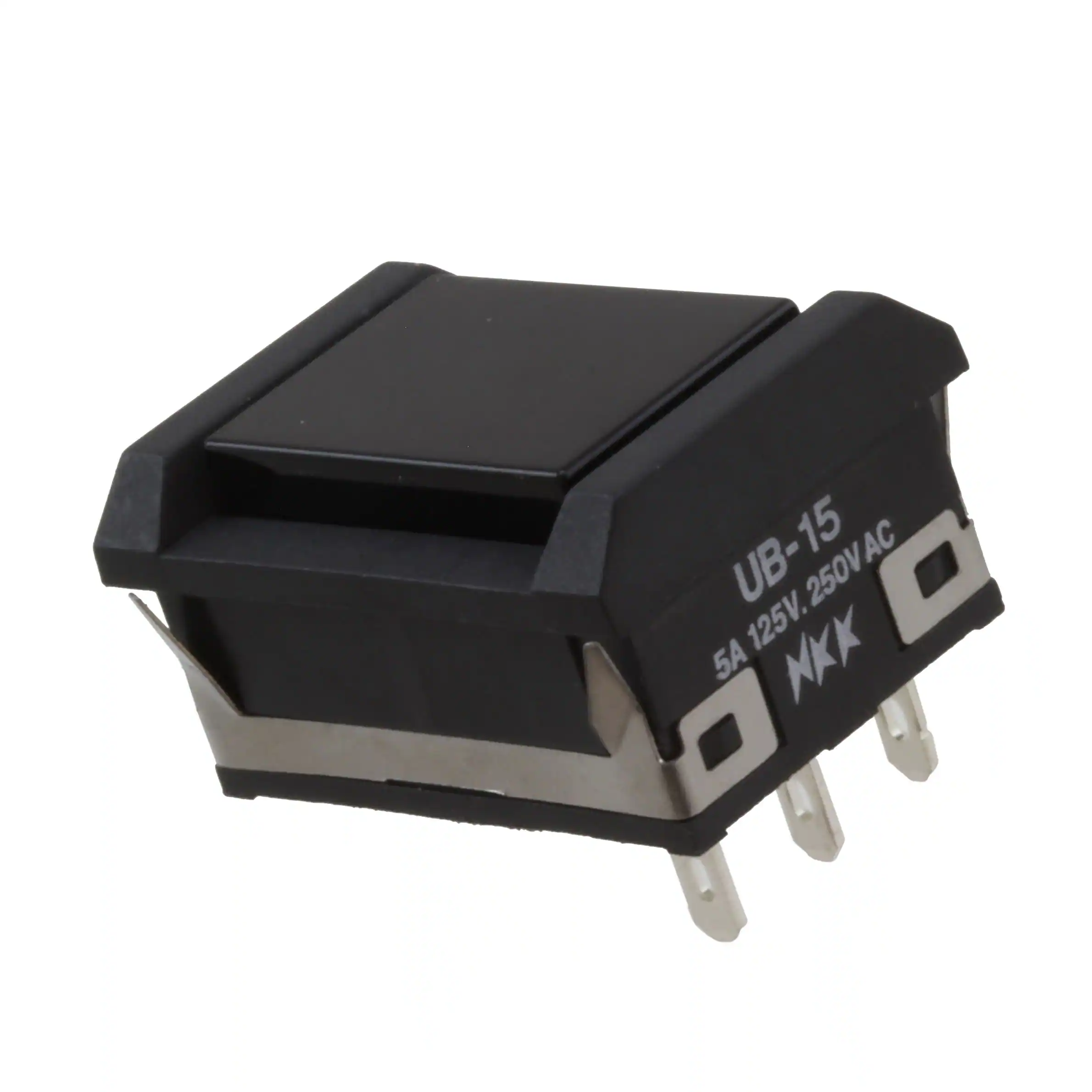

UB15NBKW01N-ASWITCH PUSHBUTTON SPDT 5A 125V |
3,031 |
|
Datasheet | UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Black | - | - | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -20°C ~ 70°C |
|

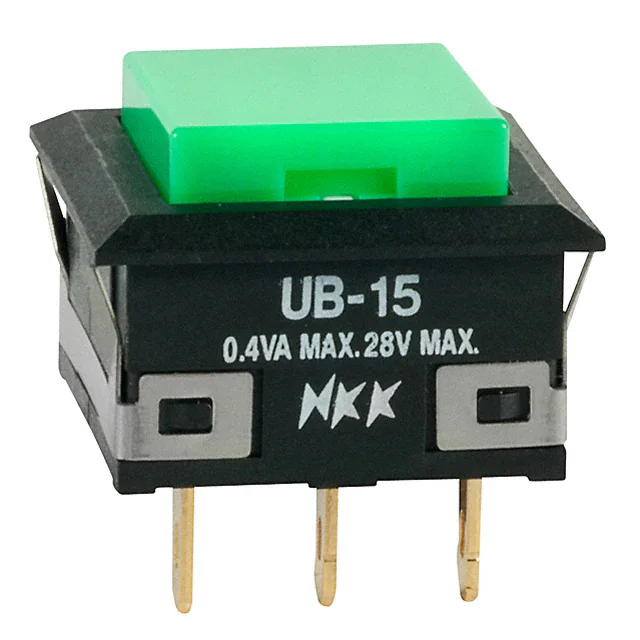

UB15KKG01N-FSWITCH PUSH SPDT 0.4VA 28V |
3,443 |
|
Datasheet | UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Green | - | - | Solder Lug | - | Overtravel, Tactile Feedback | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
