Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

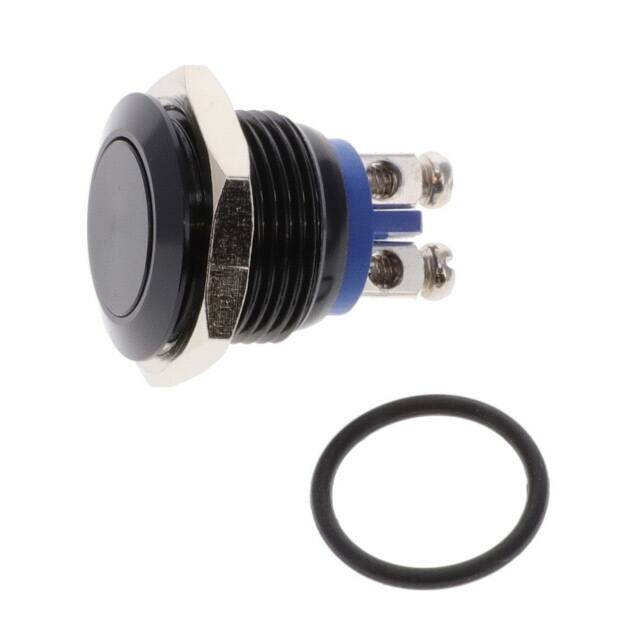

BH16NFBZXSWITCH PB SPST 1A 125V |
2,002 |
|
Datasheet | BH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button, Flush | No Marking | Black | - | - | Screw Terminal | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
EB2061GSWITCH PUSHBUTTON DPDT 0.4VA 28V |
1,195 |
|
Datasheet | EB | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
7084CSWITCH PUSH SPST-NC 15A 125V |
3,767 |
|
Datasheet | 7000 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 15A (AC) | 125 V | - | Round, Button | No Marking | Silver | - | - | Quick Connect - 0.250" (6.3mm) | - | - | - | - |
|
PB6B2RS6M1CAL00Y500SWITCH PUSH SPST-NO 125MA 125V |
100 |
|
Datasheet | PB6 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button, Domed | No Marking | Green | - | - | Wire Leads | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
1212C7/1SWITCH PUSH SPST-NC 3A 125V |
2,849 |
|
Datasheet | 1200 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Round, Plunger | No Marking | White | - | - | Solder, Quick Connect - 0.250" (6.3mm) | - | - | Circular - 12.20mm Dia | -20°C ~ 55°C |
|
PB6B2HS6M1CAL00Y500SWITCH PUSH SPST-NO 125MA 125V |
2,763 |
|
Datasheet | PB6 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Green | - | - | Wire Leads | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
PB6B2FM5M1CAL00Y500SWITCH PUSH SPST-NO 125MA 125V |
3,698 |
|
Datasheet | PB6 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Yellow | - | - | Wire Leads | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
PB7B2FM3M1CAL00Y500SWITCH PUSH SPST-NC 125MA 125V |
1,647 |
|
Datasheet | PB7 | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Red | - | - | Wire Leads | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
1213C3SWITCH PUSH SPST-NO 3A 125V |
1,133 |
|
Datasheet | 1200 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Round, Plunger | No Marking | Green | - | - | Solder, Quick Connect - 0.250" (6.3mm) | - | - | Circular - 12.20mm Dia | -20°C ~ 55°C |
|
|
PV5S240SSSWITCH PB SPST-NO 2A 36V |
1,900 |
|
Datasheet | PV5, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | - | Silver | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
|
EB2011P-BCSWITCH PUSHBUTTON SPDT 3A 125V |
1,662 |
|
Datasheet | EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
|
UB16SKG03N-CSWITCH PUSH SPDT 0.4VA 28V |
2,174 |
|
Datasheet | UB | Bulk | Active | Through Hole | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Red | - | - | PC Pin | - | Process Sealed | - | -20°C ~ 70°C |
|
BB25AB-HASWITCH PUSH DPDT 0.4VA 28V |
3,146 |
|
Datasheet | BB | Box | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
40-3355-01SWITCH PUSHBUTTON SPST 2A 14V |
1,245 |
|
Datasheet | J-188 | Bulk | Active | Panel Mount, Rear | Standard | SPST | Off-Mom-On | 2A (DC) | - | 14 V | Round, Plunger | No Marking | Black | - | - | Wire Leads | - | - | - | - |
|

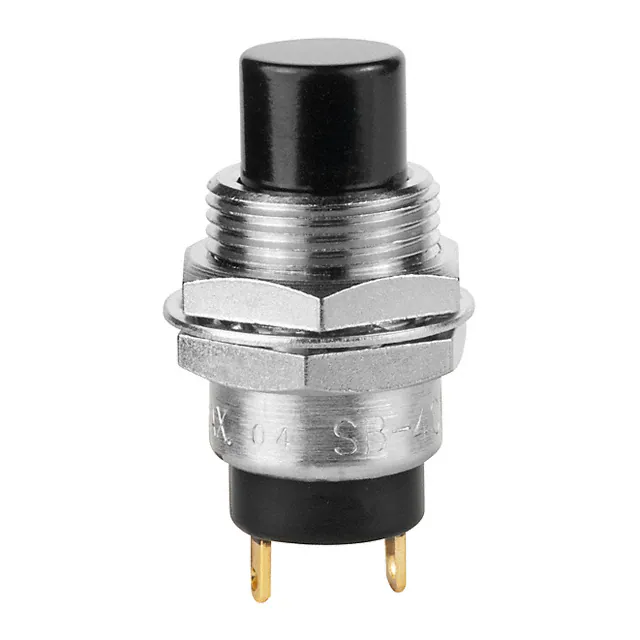

SB4011NOHGSWITCH PUSH SPST-NO 0.4VA 28V |
4,275 |
|
Datasheet | SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
TP11LT9ABESWITCH PUSH SPST-NO 0.4VA 20V |
2,208 |
|
Datasheet | TP | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
|
M2B15AA5W30-FCSWITCH PUSHBUTTON SPDT 1A 125V |
2,487 |
|
Datasheet | M2 | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
EB2061-BASWITCH PUSHBUTTON DPDT 3A 125V |
4,455 |
|
Datasheet | EB | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
W49-112PBS 12MM SPST 0.1A 48V MOM PLAST |
2,950 |
|
Datasheet | W49 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button, Domed | - | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.40mm Dia | -40°C ~ 105°C |
|
7004CSWITCH PUSH SPST 15A 125V |
2,713 |
|
Datasheet | 7000 | Bulk | Active | Panel Mount, Rear | Standard | SPST | On-Off | 15A (AC) | 125 V | - | Round, Button | No Marking | Silver | - | - | Quick Connect - 0.250" (6.3mm) | - | - | - | - |
