Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
REL BAR F3X17.5 NICKEL PLTDSWITCH PUSHBUTTON |
3,012 |
|
- |
* | Bulk | Last Time Buy | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PS-2206-F NSSWITCH PUSHBUTTON |
2,307 |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

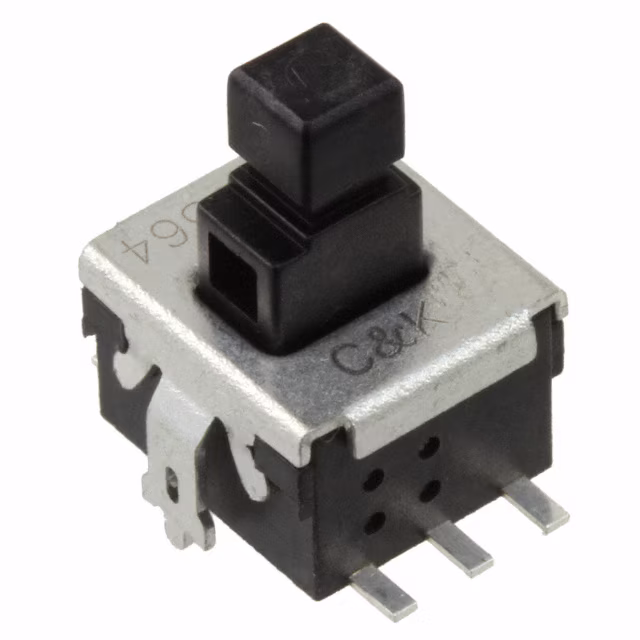

PVB6 EE 300 NS LFSSWITCH PUSHBUTTON DPDT 0.2A 14V |
4,916 |
|
Datasheet | PVB | Tape & Reel (TR) | Obsolete | Surface Mount | Standard | DPDT | On-On | 200mA (DC) | - | 14 V | Square, Plunger | No Marking | - | - | - | Gull Wing | IP40 | - | - | -40°C ~ 80°C |
|

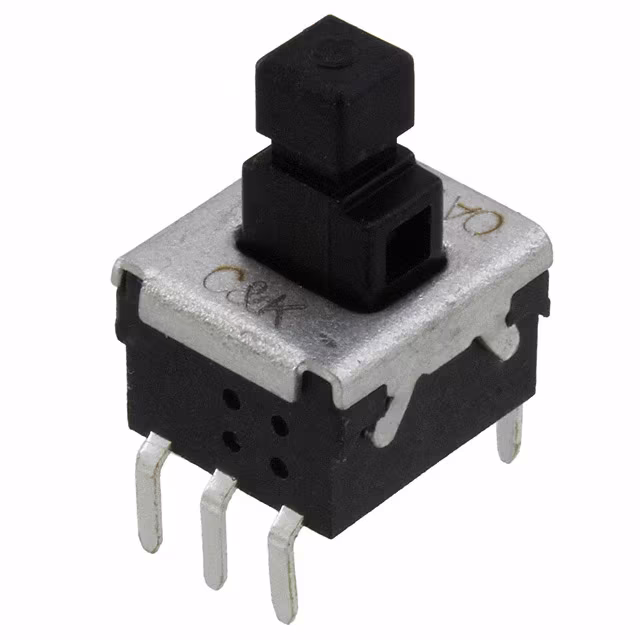

PVB6 THT EE 300 NS LFSSWITCH PUSHBUTTON DPDT 0.2A 14V |
3,733 |
|
Datasheet | PVB | Tape & Reel (TR) | Obsolete | Through Hole | Standard | DPDT | On-On | 200mA (DC) | - | 14 V | Square, Plunger | No Marking | - | - | - | PC Pin | IP40 | - | - | -40°C ~ 80°C |
|
|
PHB4UEETS1APUSHBUTTON SWITCHES 4 CHG OVERS |
3,755 |
|
Datasheet | PHB | Bulk | Active | Through Hole, Right Angle | Standard | 4PDT | On-On | 1A (DC) | - | 15 V | Plunger for Cap | - | White | - | - | PC Pin | - | - | - | -10°C ~ 60°C |
|
PN21SBNA03QESWITCH PUSH DPDT 0.2A 30V |
1,216 |
|
Datasheet | PN | Bag | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 200mA (DC) | - | 30 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -10°C ~ 60°C |
|
|
Y17P21141FPLinear IC's |
3,803 |
|
Datasheet | PVA | Tape & Reel (TR) | Active | Through Hole | Keyswitch | DPDT | On-On | 100mA (DC) | - | 32 V | Plunger for Cap | - | - | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
|
Y17P21321FPLinear IC's |
3,763 |
|
Datasheet | PVA | Tape & Reel (TR) | Active | Through Hole | Keyswitch | DPDT | On-On | 100mA (DC) | - | 32 V | Plunger for Cap | - | White | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
|
Y17P21341FPLinear IC's |
2,408 |
|
Datasheet | PVA | Tape & Reel (TR) | Active | Through Hole | Keyswitch | DPDT | On-On | 100mA (DC) | - | 32 V | Plunger for Cap | - | - | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
|
Y17P12441FPLinear IC's |
3,750 |
|
Datasheet | PVA | Tape & Reel (TR) | Active | Through Hole | Keyswitch | DPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Square, Plunger | - | Gray | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
