Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E221SD1AGESWITCH PUSHBUTTON DPDT 1A 120V |
3,879 |
|
Datasheet | E020 | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|
8321SY9V8GESWITCH PUSHBUTTON 3PDT 1A 120V |
2,403 |
|
Datasheet | 8020 | Tray | Active | Through Hole | Standard | 3PDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|
PLP1624SQ3DE6LOCK, SQUARE, IP65, ILLUMINATE P |
3,152 |
|
Datasheet | PLP16 | Tray | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC), 1A (DC) | 250 V | 30 V | Square, Button | No Marking | Red | LED, Red | 24 VAC/DC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
NP8S3L203QESWITCH PUSHBUTTON SPDT 5A 32V |
2,787 |
|
Datasheet | NP | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (DC) | - | 32 V | Round, Button, Domed | No Marking | Red | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|

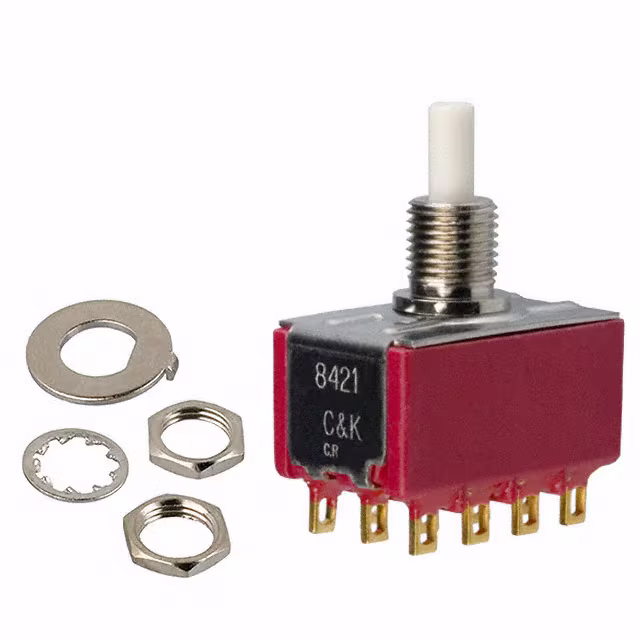

8421SHZGESWITCH PUSHBUTTON 4PDT 1A 120V |
2,161 |
|
Datasheet | 8020 | Bulk | Active | Panel Mount, Rear | Standard | 4PDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | Solder Lug | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
PVA2OAH51.7N V2SWITCH PUSH DPDT 0.1A 32V |
651 |
|
Datasheet | PVA | Bulk | Active | Through Hole | Keyswitch | DPDT | On-Mom | 100mA (DC) | - | 32 V | Square, Plunger | No Marking | - | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
E112SD1AQESWITCH PUSHBUTTON SPDT 4A 125V |
2,386 |
|
Datasheet | E010 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 4A (AC/DC) | 125 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|
E112SD1V3QESWITCH PUSHBUTTON SPDT 4A 125V |
1,308 |
|
Datasheet | E010 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 4A (AC/DC) | 125 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|
|
ZNE18 FA200 BK GN 2U EE LSWITCH PUSHBUTTON DPDT 6A 250V |
2,252 |
|
Datasheet | ZNE18 | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | DPDT | On-On | 6A (AC/DC) | 250 V | 100 V | Round, Button | No Marking | Green | - | - | PC Pin | Dust Proof | - | Circular - 14.00mm Dia | - |
|
|
APB4E07TZBE001PUSHBUTTON SWITCHES LASER-ETCH B |
3,763 |
|
Datasheet | APB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button | - | Black | LED, Blue | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 85°C |
