Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MDG LFSSWITCH PUSH SPST-NO 0.05A 100V |
2,753 |
|
Datasheet | MD | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 50mA (AC/DC) | 100 V | 100 V | Round, Button, Rubber | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | -25°C ~ 70°C |
|
|
MDP G SG LFSSWITCH PUSH SPST-NO 0.05A 100V |
121 |
|
Datasheet | MDP | Tray | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 50mA (AC/DC) | 100 V | 100 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | -25°C ~ 70°C |
|
|
K12SC L WH0 1.5 5N O LFTXSWITCH PUSH SPST-NO 0.1A 30V |
3,219 |
|
Datasheet | K12S | Tape & Reel (TR) | Active | Surface Mount | Keyswitch, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | - | LED, White | - | SMD (SMT) Tab | IP40 | - | - | -40°C ~ 85°C |
|
F2UOA01AAUSWITCH PUSH DPDT 0.04A 50V |
6,072 |
|
Datasheet | F | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 40mA (AC), 10mA (DC) | 50 V | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -40°C ~ 70°C |
|
PNP3N0D2C03QE3N, DOME BEZEL, SPST, SOLDER LUG |
380 |
|
Datasheet | PNP | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (DC) | - | 32 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
ELUMOASAQ2C22SWITCH PUSH SPDT 0.25A 50V |
195 |
|
Datasheet | ELUM™ | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard, Illuminated | SPDT | On-Mom | 250mA (DC) | - | 50 V | Plunger for Cap | No Marking | Black | LED, Green/Red | 2 VDC | Gull Wing | - | - | - | -40°C ~ 80°C |
|

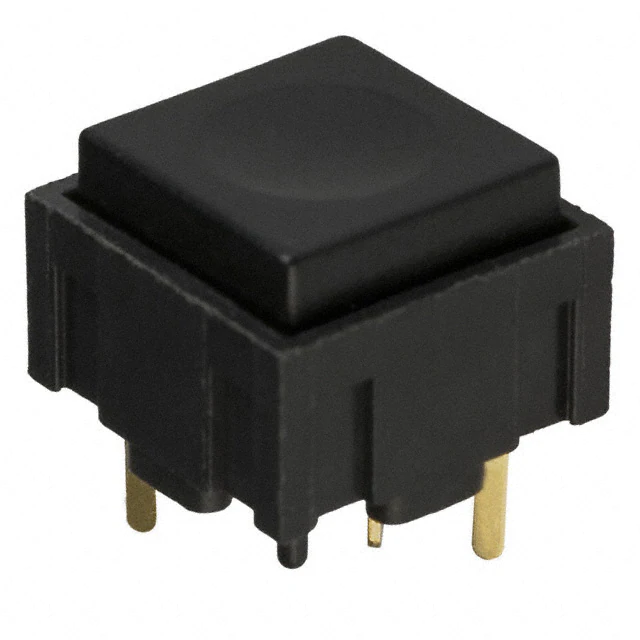

KS12R22CBESWITCH PUSH SPDT 0.4VA 20V |
2,100 |
|
Datasheet | KS | Bulk | Active | Through Hole | Keyswitch | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Square, Button | No Marking | Black | - | - | PC Pin | - | Voltage Reduction Lighting | - | -30°C ~ 65°C |
|
|
K12SB L RD0 1.5 9N O LFTXHIGH PERFORMANCE SMT KEY SW |
7,578 |
|
Datasheet | K12S | Tape & Reel (TR) | Active | Surface Mount | Keyswitch, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | - | LED, Red | - | SMD (SMT) Tab | IP67 - Dust Tight, Waterproof | - | - | -40°C ~ 85°C |
|
|
K12SB L YE0 1.5 9N O LFTXHIGH PERFORMANCE SMT KEY SW |
7,533 |
|
Datasheet | K12S | Tape & Reel (TR) | Active | Surface Mount | Keyswitch, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | - | LED, Yellow | - | SMD (SMT) Tab | IP67 - Dust Tight, Waterproof | - | - | -40°C ~ 85°C |
|
|
K12SB L GN0 1.5 9N O LFTXHIGH PERFORMANCE SMT KEY SW |
6,425 |
|
Datasheet | K12S | Tape & Reel (TR) | Active | Surface Mount | Keyswitch, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | - | LED, Green | - | SMD (SMT) Tab | IP67 - Dust Tight, Waterproof | - | - | -40°C ~ 85°C |
