Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B3J-4300SWITCH PUSH SPST-NO 0.05A 24V |
261 |
|
Datasheet | B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Yellow | LED, Green | 2.1 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|
B3J-2300SWITCH PUSH SPST-NO 0.05A 24V |
241 |
|
Datasheet | B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Yellow | LED, Red | 2 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|
B3J-2400SWITCH PUSH SPST-NO 0.05A 24V |
161 |
|
Datasheet | B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Blue | LED, Red | 2 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|
B3J-7200SWITCH PUSH SPST-NO 0.05A 24V |
4,323 |
|
Datasheet | B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Orange | LED, Green/Yellow | 2.0, 2.1 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|

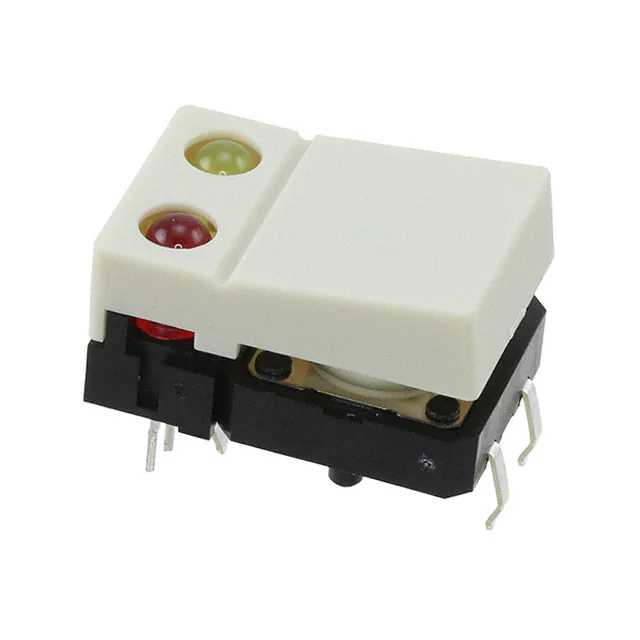

B3J-5000SWITCH PUSH SPST-NO 0.05A 24V |
1,936 |
|
Datasheet | B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Gray, Light | LED, Red/Yellow | 2 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|
B3J-6400SWITCH PUSH SPST-NO 0.05A 24V |
292 |
|
Datasheet | B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Blue | LED, Green/Red | 2.0, 2.1 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|
B3J-3300SWITCH PUSH SPST-NO 0.05A 24V |
257 |
|
Datasheet | B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Yellow | LED, Yellow | 2 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|
|
B3J-4200SWITCH PUSH SPST-NO 0.05A 24V |
249 |
|
Datasheet | B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Orange | LED, Green | 2.1 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|
|
B3J-4400SWITCH PUSH SPST-NO 0.05A 24V |
221 |
|
Datasheet | B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Blue | LED, Green | 2.1 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|
B3J-3000SWITCH PUSH SPST-NO 0.05A 24V |
116 |
|
Datasheet | B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Gray, Light | LED, Yellow | 2 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
