Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IMR7Z452075SWITCH PUSHBUTTON SPDT 3A 28V |
4,175 |
|
Datasheet | IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button, Domed | No Marking | Yellow | - | - | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|

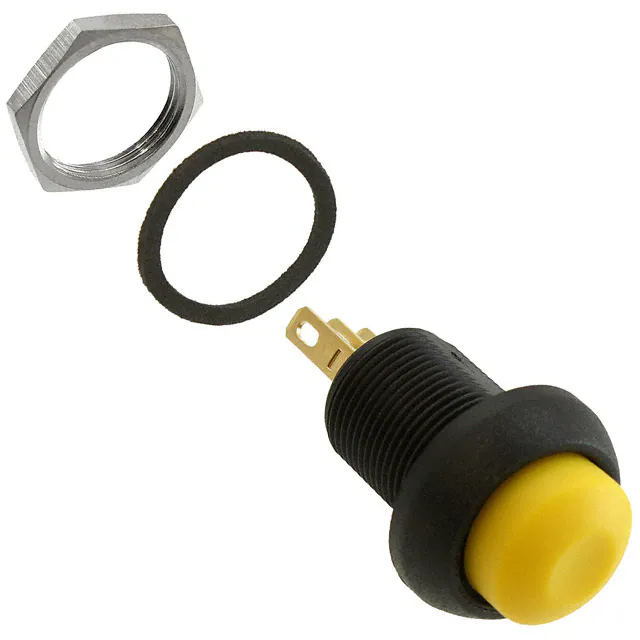

IMR7Z452104SWITCH PUSHBUTTON SPDT 3A 28V |
1,392 |
|
Datasheet | IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button, Domed | No Marking | Yellow | - | - | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|

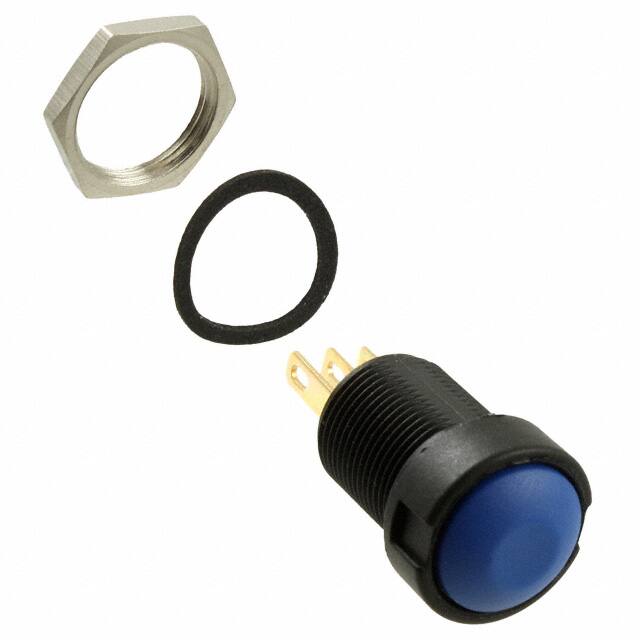

IMR7Z4B2075SWITCH PUSHBUTTON SPDT 3A 28V |
1,434 |
|
Datasheet | IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button, Domed | No Marking | Blue, Dark | - | - | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
IMR7Z462075SWITCH PUSHBUTTON SPDT 3A 28V |
1,996 |
|
Datasheet | IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button, Domed | No Marking | Red | - | - | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|

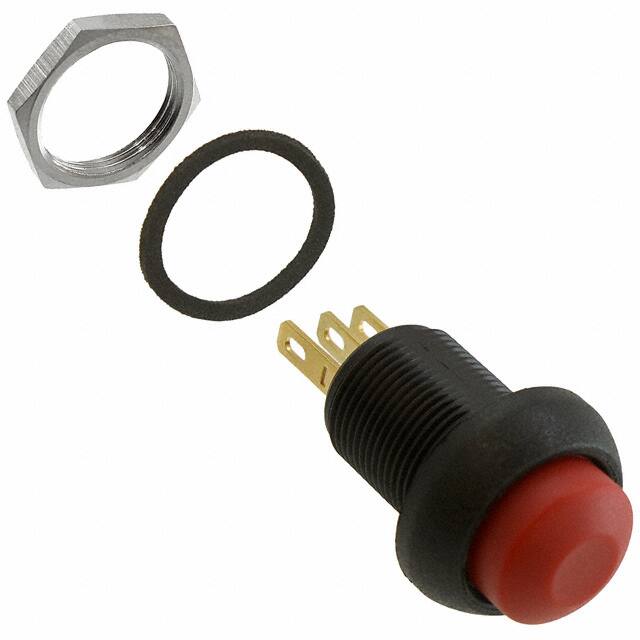

IMR7Z462104SWITCH PUSHBUTTON SPDT 3A 28V |
4,679 |
|
Datasheet | IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button, Domed | No Marking | Red | - | - | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
IMR7Z472075SWITCH PUSHBUTTON SPDT 3A 28V |
4,405 |
|
Datasheet | IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button, Domed | No Marking | White | - | - | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
IMR7Z472234SWITCH PUSHBUTTON SPDT 3A 28V |
2,991 |
|
Datasheet | IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button, Domed | No Marking | White | - | - | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
IMR7Z492075SWITCH PUSHBUTTON SPDT 3A 28V |
4,739 |
|
Datasheet | IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button, Domed | No Marking | Orange | - | - | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|

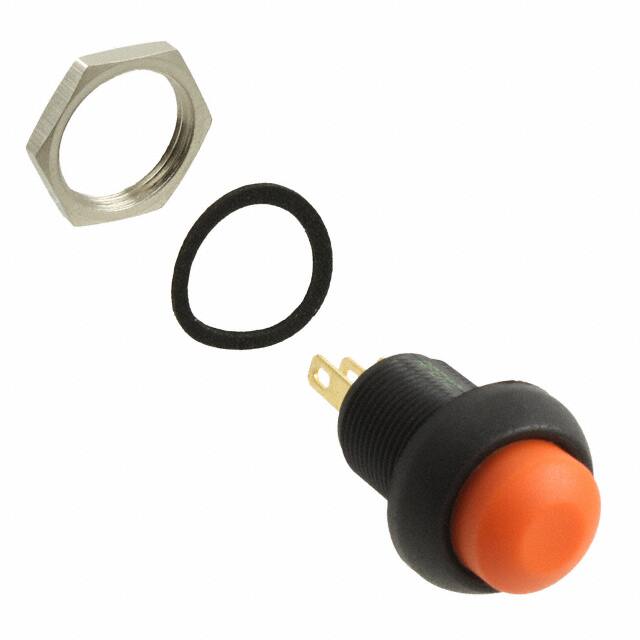

IMR7Z492104SWITCH PUSHBUTTON SPDT 3A 28V |
1,721 |
|
Datasheet | IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button, Domed | No Marking | Orange | - | - | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
IMR7Z492234SWITCH PUSHBUTTON SPDT 3A 28V |
1,390 |
|
Datasheet | IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button, Domed | No Marking | Orange | - | - | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
