Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

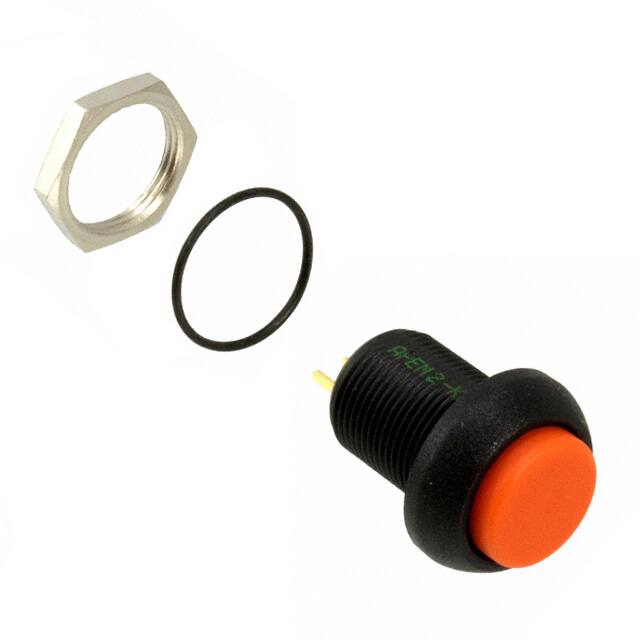

IMP7P492SWITCH PUSHBUTTON SPDT 3A 28V |
4,414 |
|
Datasheet | IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button | No Marking | Orange | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
IMP7P412SWITCH PUSHBUTTON SPDT 3A 28V |
2,054 |
|
Datasheet | IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button | No Marking | Blue | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
IMP7P452SWITCH PUSHBUTTON SPDT 3A 28V |
4,029 |
|
Datasheet | IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button | No Marking | Yellow | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
IMP7P462SWITCH PUSHBUTTON SPDT 3A 28V |
4,983 |
|
Datasheet | IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
IPR3SAD5104PUSHBUTTON SWITCH FD DBLE ICON |
2,765 |
|
Datasheet | IP | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 500mA (AC), 5A (DC) | 125 V | 28 V | Round, Button | - | Yellow | - | - | Solder Lug | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
|
8436WAPUSHBUTTON SWITCH 8000 |
1,642 |
|
- |
8000 | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | - | Silver | - | - | PC Pin | - | - | Circular - 6.50mm Dia | -40°C ~ 85°C |
|
|
8432WAPUSHBUTTON SWITCH 8000 |
3,292 |
|
- |
8000 | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | - | Silver | - | - | PC Pin | - | - | Circular - 6.50mm Dia | -40°C ~ 85°C |
|
|
IPC3SAD1/4PUSHBUTTON SWITCH FD DBLE ICON |
1,813 |
|
Datasheet | IP | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 500mA (AC), 5A (DC) | 125 V | 28 V | Square, Button | - | Blue | - | - | Solder Lug | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
IMR7Z412SWITCH PUSHBUTTON SPDT 3A 28V |
4,463 |
|
Datasheet | IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button, Domed | No Marking | Blue | - | - | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
IMR7Z462SWITCH PUSHBUTTON SPDT 3A 28V |
3,935 |
|
Datasheet | IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button, Domed | No Marking | Red | - | - | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
