Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IPC5SAD2SWITCH PUSH SPDT 0.5A 48V |
3,976 |
|
Datasheet | IP | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 500mA (AC), 200mA (DC) | 48 V | 48 V | Square, Button | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 13.60mm Dia | -40°C ~ 125°C |
|
ICR3SAD2100SWITCH PUSH SPST-NO 5A 48V |
2,242 |
|
Datasheet | IC | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 500mA (AC), 5A (DC) | 48 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|

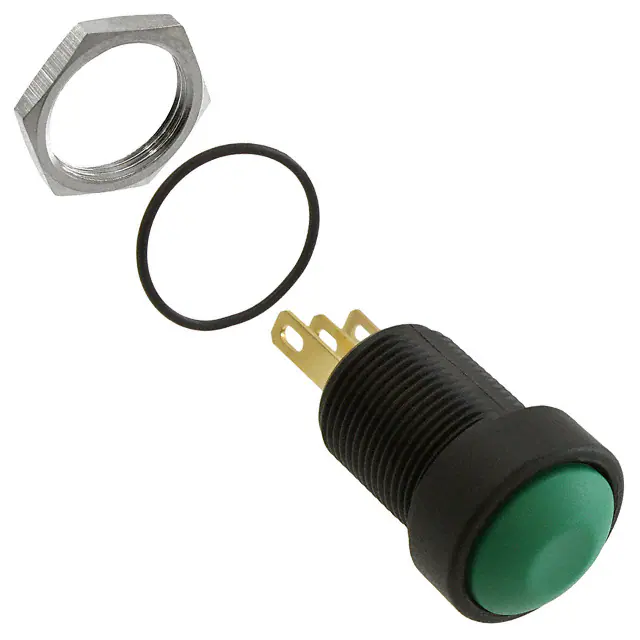

IMR7Z432234SWITCH PUSHBUTTON SPDT 3A 28V |
2,930 |
|
Datasheet | IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button, Domed | No Marking | Green | - | - | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|

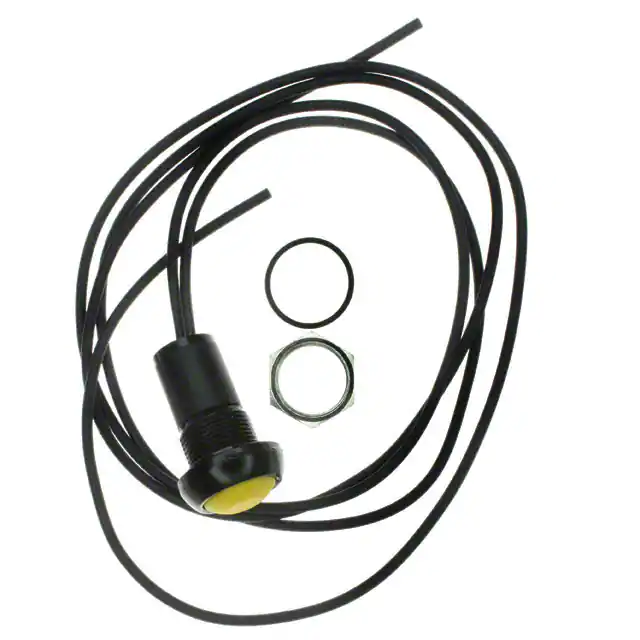

IPR3FAD5SWITCH PUSH SPST-NO 0.5A 48V |
1,580 |
|
Datasheet | IP | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 500mA (AC), 200mA (DC) | 48 V | 48 V | Round, Button | No Marking | Yellow | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 13.60mm Dia | -40°C ~ 125°C |
|
IAR5F1400SWITCH PUSHBUTTON SPDT 2A 24V |
3,036 |
|
Datasheet | IA | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 2A (DC) | - | 24 V | Round, Button | No Marking | Gray | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 16.20mm Dia | -20°C ~ 65°C |
|
IRR3F4B2SWITCH PUSH SPST-NO 0.2A 250V |
2,301 |
|
Datasheet | IR | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 200mA (AC/DC) | 250 V | 48 V | Round, Button | No Marking | Blue, Dark | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 16.20mm Dia | -40°C ~ 85°C |
|
AV09C703D200SWITCH PUSH SPST-NO 0.05A 24V |
2,498 |
|
Datasheet | AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | - | - | Solder Lug | IP54 - Dust Protected, Water Resistant | - | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
AV091003C910SWITCH PUSH SPST-NO 2A 48V |
2,127 |
|
Datasheet | AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | - | - | Screw Terminal | IP54 - Dust Protected, Water Resistant | - | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
IRR3S422L0SSWITCH PUSH SPST-NO 0.2A 250V |
2,498 |
|
Datasheet | IR | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 200mA (AC/DC) | 250 V | 48 V | Round, Button | No Marking | Black | LED, Red | 2.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 16.20mm Dia | -40°C ~ 85°C |
|
FDAP1F1482F14SWITCH PUSHBUTTON SPST 200MA 12V |
1,502 |
|
Datasheet | FD | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 200mA (DC) | - | 12 V | Round, Button | ON/OFF | Black | LED, Green/Red | 12 VDC | Solder Lug | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 24.20mm Dia | -40°C ~ 75°C |
