Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IPC1FAD6SWITCH PUSHBUTTON SPST 4A 12V |
1,003 |
|
Datasheet | IP | Bulk | Active | Panel Mount, Front | Standard | SPST | Off-On | 2A (AC), 4A (DC) | 125 V | 12 V | Square, Button | No Marking | Red | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
IPC1FAD2SWITCH PUSHBUTTON SPST 4A 12V |
1,295 |
|
Datasheet | IP | Bulk | Active | Panel Mount, Front | Standard | SPST | Off-On | 2A (AC), 4A (DC) | 125 V | 12 V | Square, Button | No Marking | Black | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
|
AV0630C940SWITCH PUSH SPST-NO 0.2A 48V |
3,772 |
|
Datasheet | AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 200mA (DC) | - | 48 V | Round, Button | No Marking | Silver | - | - | Screw Terminal | IP54 - Dust Protected, Water Resistant | - | Circular - 16.20mm Dia | -30°C ~ 70°C |
|
LPI3124G1K247XXSWITCH PUSH SPST-NO 0.05A 24V |
1,827 |
|
Datasheet | LPI | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | - | White | LED, Green | 5 VDC | Screw Terminal | IP53 - Dust Protected, Water Resistant | - | Circular - 38.10mm Dia | -20°C ~ 65°C |
|
IRR3V262000SWITCH PUSH SPST-NO 2A 250V |
3,361 |
|
Datasheet | IR | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 2A (AC), 4A (DC) | 250 V | 48 V | Round, Button | No Marking | Red | - | - | Screw Terminal | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 16.20mm Dia | -40°C ~ 85°C |
|
IPR1SAD5L0SSWITCH PUSHBUTTON SPST 4A 12V |
2,406 |
|
Datasheet | IP | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 2A (AC), 4A (DC) | 125 V | 12 V | Round, Button | No Marking | Yellow | LED, Red | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
|
PBAR1AF2000SWITCH PUSH SPST-NO 0.2A 24V |
1,468 |
|
Datasheet | PBA | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 200mA (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Black | - | - | Wire Leads | IP68 - Dust Tight, Waterproof | Low Temperature Lubricant | Circular - 16.20mm Dia | -40°C ~ 75°C |
|
IPC1SAD2L0SSWITCH PUSHBUTTON SPST 4A 12V |
1,683 |
|
Datasheet | IP | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 2A (AC), 4A (DC) | 125 V | 12 V | Square, Button | No Marking | Black | LED, Red | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|

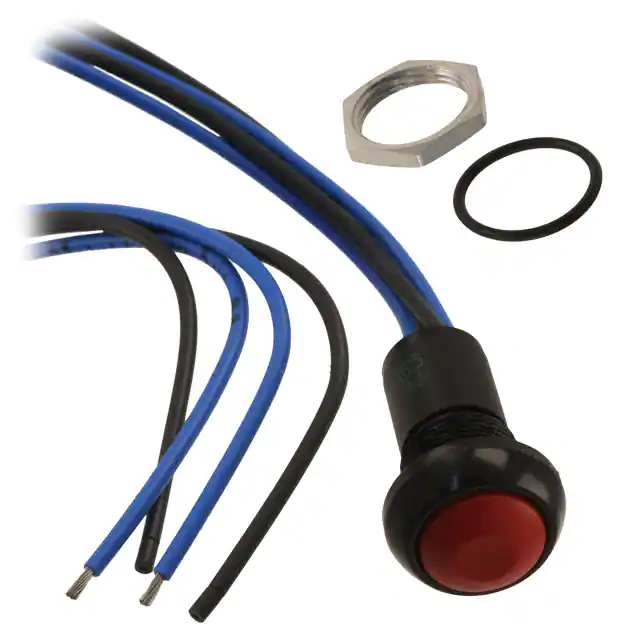

IPR5FAD6SWITCH PUSH SPDT 0.5A 48V |
1,156 |
|
Datasheet | IP | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 500mA (AC), 200mA (DC) | 48 V | 48 V | Round, Button | No Marking | Red | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 13.60mm Dia | -40°C ~ 125°C |
|
IPR3FAD3L0GSWITCH PUSH SPST-NO 0.5A 48V |
3,614 |
|
Datasheet | IP | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 500mA (AC), 200mA (DC) | 48 V | 48 V | Round, Button | No Marking | Green | LED, Green | 2 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 13.60mm Dia | -40°C ~ 125°C |
