Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AVH25LSSFE1A122604SWITCH PUSHBUTTON SPDT 26A 125V |
4,915 |
|
Datasheet | AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 26A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Green/Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 85°C |
|
AVC19LS04FE1DT5A04SWITCH PUSHBUTTON SPST 1A |
100 |
|
Datasheet | AVC | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST | Off-On | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 65°C |
|
AVC19MS04FE1DT5A04SWITCH PUSHBUTTON SPST-NO 1A |
2,776 |
|
Datasheet | AVC | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 65°C |
|

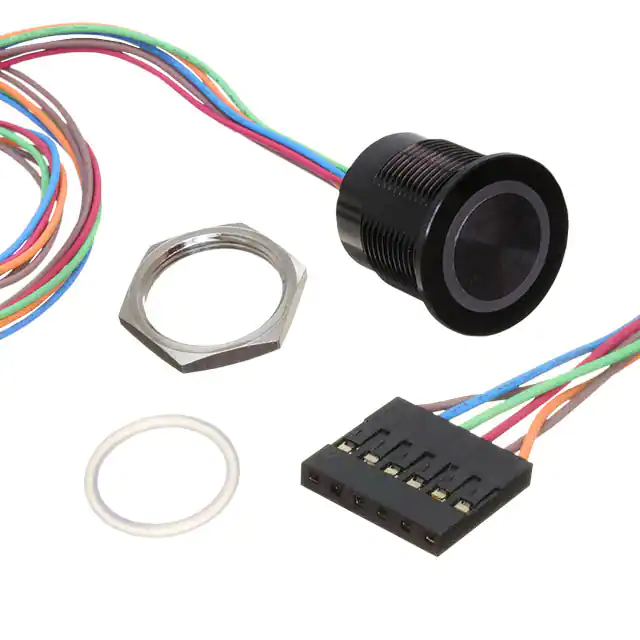

AVP19MAIBCE0DT5A04SWITCH PUSHBUTTON SPST-NO 1A 24V |
2,322 |
|
Datasheet | AVP | Bulk | Active | Panel Mount, Front | Piezo, Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 65°C |
|
AVC22LS04FE1DT5A04SWITCH PUSHBUTTON SPST 1A |
2,179 |
|
Datasheet | AVC | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST | Off-On | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 65°C |
|
AVC16LS16FE1DT5B04SWITCH PUSHBUTTON SPST 1A |
4,434 |
|
Datasheet | AVC | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST | Off-On | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 65°C |
|
AVP16MAIBH000T5B04SWITCH PUSHBUTTON SPST-NO 1A 24V |
3,414 |
|
Datasheet | AVP | Bulk | Active | Panel Mount, Front | Piezo, Anti-Vandal | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | - | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 65°C |
|
AVP16MAIOH000T5B04SWITCH PUSHBUTTON SPST-NO 1A 24V |
3,827 |
|
Datasheet | AVP | Bulk | Active | Panel Mount, Front | Piezo, Anti-Vandal | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | - | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 65°C |
|
AVP16MS04H000T5B04SWITCH PUSHBUTTON SPST-NO 1A 24V |
4,365 |
|
Datasheet | AVP | Bulk | Active | Panel Mount, Front | Piezo, Anti-Vandal | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | - | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 65°C |
|

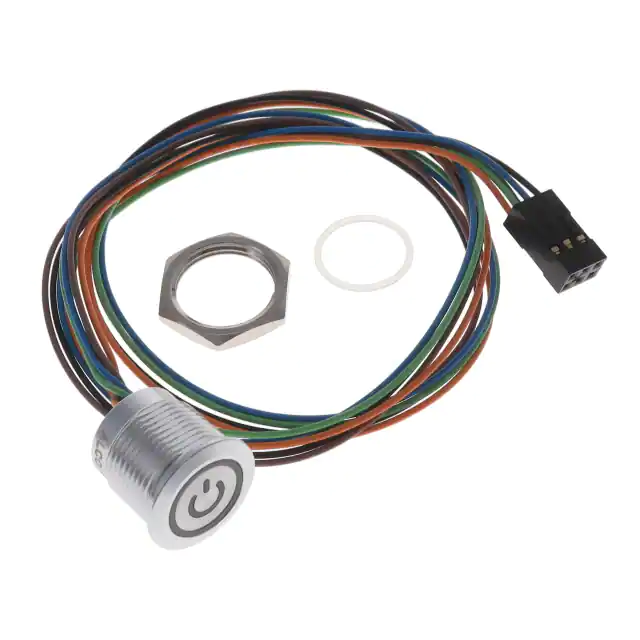

AVC16LAIOFE13T5B04SWITCH PUSHBUTTON SPST 1A |
1,023 |
|
Datasheet | AVC | Bulk | Active | Panel Mount, Front | Capacitive, Anti-Vandal, Illuminated | SPST | Off-On | 1A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 65°C |
