Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AVH25LSSFE17241604SWITCH PUSHBUTTON SPDT 16A 125V |
1,896 |
|
Datasheet | AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Blue | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 85°C |
|
AVH25MSSFEA241604SWITCH PUSHBUTTON SPDT 16A 125V |
4,348 |
|
Datasheet | AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 85°C |
|
AV1920EG12T5Q04SWITCH PUSHBUTTON DPDT 3A 250V |
100 |
|
Datasheet | AV19 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Red/Yellow | 12 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
AV1920RG12T5Q04SWITCH PUSHBUTTON DPDT 3A 250V |
4,144 |
|
Datasheet | AV19 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Red/Yellow | 12 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | Fixed LED Ring | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
AV2211EA12T5Q04SWITCH PUSHBUTTON SPDT 3A 250V |
3,938 |
|
Datasheet | AV22 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 12 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
AV1920DG12T5Q04SWITCH PUSHBUTTON DPDT 3A 250V |
100 |
|
Datasheet | AV19 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Red/Yellow | 12 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | Spot LED | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
AV1920DB12Q04SWITCH PUSHBUTTON DPDT 3A 250V |
1,759 |
|
Datasheet | AV19 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue/Red | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Spot LED | Circular - 19.20mm Dia | -20°C ~ 55°C |
|

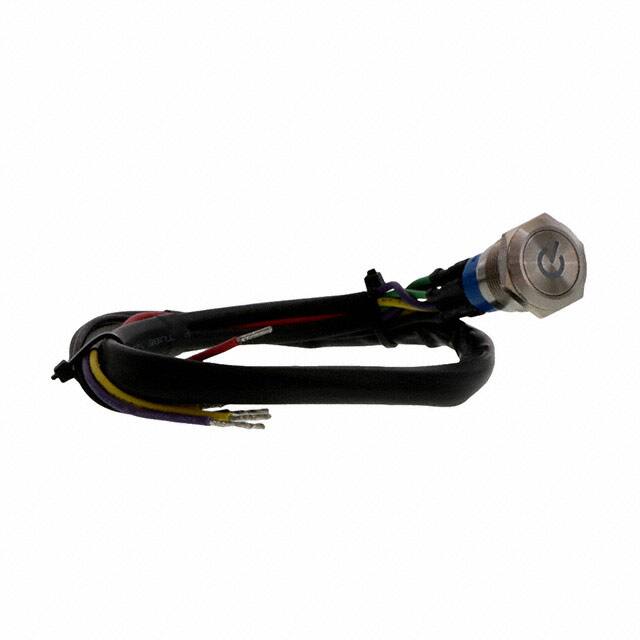

AV1920PG12T5Q04SWITCH PUSHBUTTON DPDT 3A 250V |
4,402 |
|
Datasheet | AV19 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Red/Yellow | 12 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
AV1920DA12Q04SWITCH PUSHBUTTON DPDT 3A 250V |
4,957 |
|
Datasheet | AV19 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Spot LED | Circular - 19.20mm Dia | -20°C ~ 55°C |
|

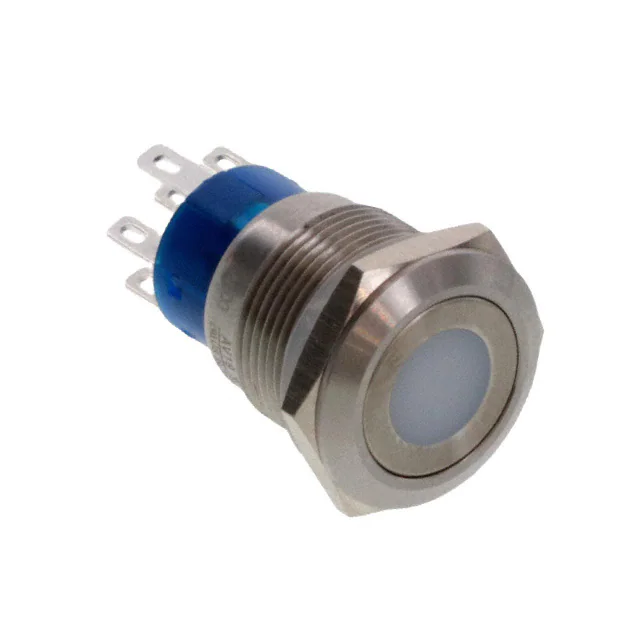

AV1920DG12Q04SWITCH PUSHBUTTON DPDT 3A 250V |
4,217 |
|
Datasheet | AV19 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Red/Yellow | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Spot LED | Circular - 19.20mm Dia | -20°C ~ 55°C |
