Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AVH22MSSFEA121604SWITCH PUSHBUTTON SPDT 16A 125V |
3,135 |
|
Datasheet | AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -25°C ~ 85°C |
|
AVH22LSSFE17121604SWITCH PUSHBUTTON SPDT 16A 125V |
1,032 |
|
Datasheet | AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Blue | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -25°C ~ 85°C |
|
AVH22LSSFO002604SWITCH PUSHBUTTON SPDT 26A 125V |
4,747 |
|
Datasheet | AVH | Box | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-On | 26A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | - | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -25°C ~ 85°C |
|
AVH19MSFP6121604SWITCH PUSHBUTTON SPDT 16A 125V |
2,818 |
|
Datasheet | AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Green | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
AVH19MSFE16241604SWITCH PUSHBUTTON SPDT 16A 125V |
2,031 |
|
Datasheet | AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Green | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
AVH19MSFEA121604SWITCH PUSHBUTTON SPDT 16A 125V |
4,700 |
|
Datasheet | AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
AVH19MSFE17121604SWITCH PUSHBUTTON SPDT 16A 125V |
4,411 |
|
Datasheet | AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Blue | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
AVH19MSFE13241604SWITCH PUSHBUTTON SPDT 16A 125V |
2,954 |
|
Datasheet | AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Red | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|

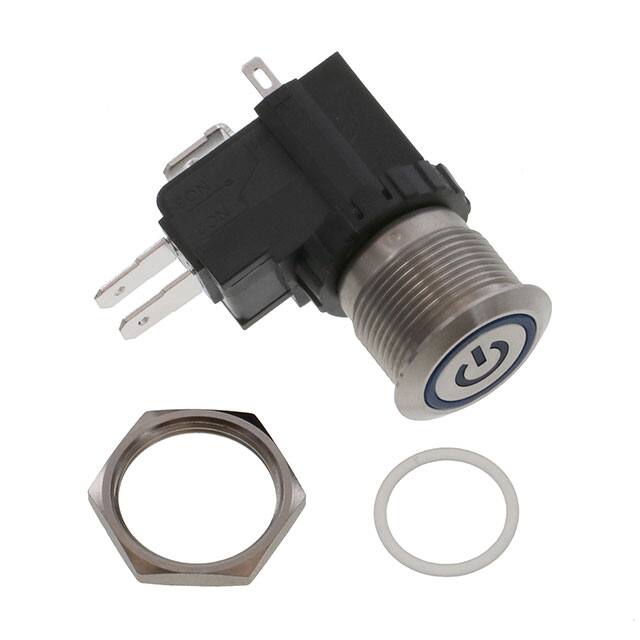

AVH19MSFE17241604SWITCH PUSHBUTTON SPDT 16A 125V |
1,907 |
|
Datasheet | AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 16A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Blue | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
AVH19LSFEB121604SWITCH PUSHBUTTON SPDT 16A 125V |
4,986 |
|
Datasheet | AVH | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 16A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue/Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
