Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PB7B2RS5M1CAL00SWITCH PUSH SPST-NC 125MA 125V |
2,171 |
|
Datasheet | PB7 | Tray | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button, Domed | No Marking | Yellow | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
PB7B2RS7M1CAL00SWITCH PUSH SPST-NC 125MA 125V |
3,085 |
|
Datasheet | PB7 | Tray | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button, Domed | No Marking | Blue | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|

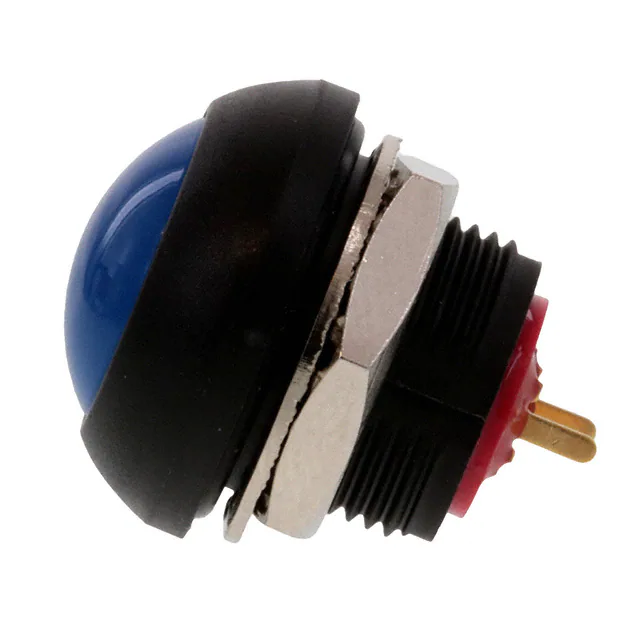

PB6B2RS7M4CAL00SWITCH PUSH SPST-NO 125MA 125V |
2,757 |
|
Datasheet | PB6 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button, Domed | No Marking | Blue | - | - | PC Pin | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
PB6B2HS7M1CAL00SWITCH PUSH SPST-NO 125MA 125V |
3,879 |
|
Datasheet | PB6 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Blue | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
PB7B2HS6M1CAL00SWITCH PUSH SPST-NC 125MA 125V |
2,011 |
|
Datasheet | PB7 | Tray | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Green | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|

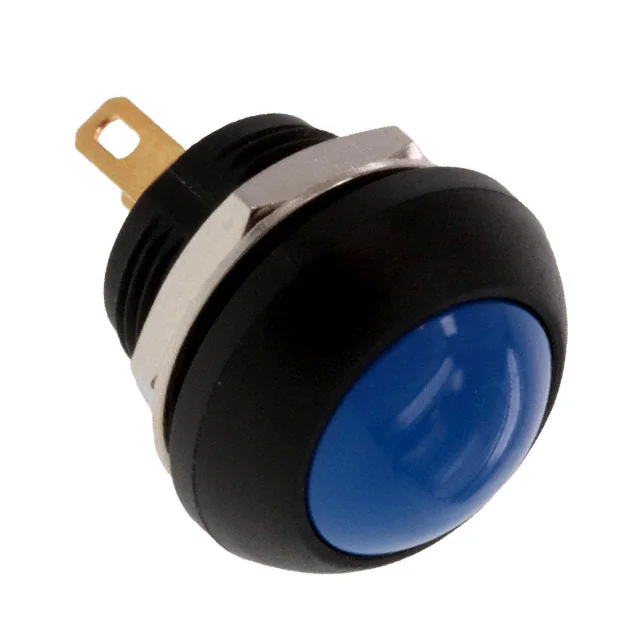

PB6B2RS7M2CAL00SWITCH PUSH SPST-NO 125MA 125V |
3,710 |
|
Datasheet | PB6 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button, Domed | No Marking | Blue | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|

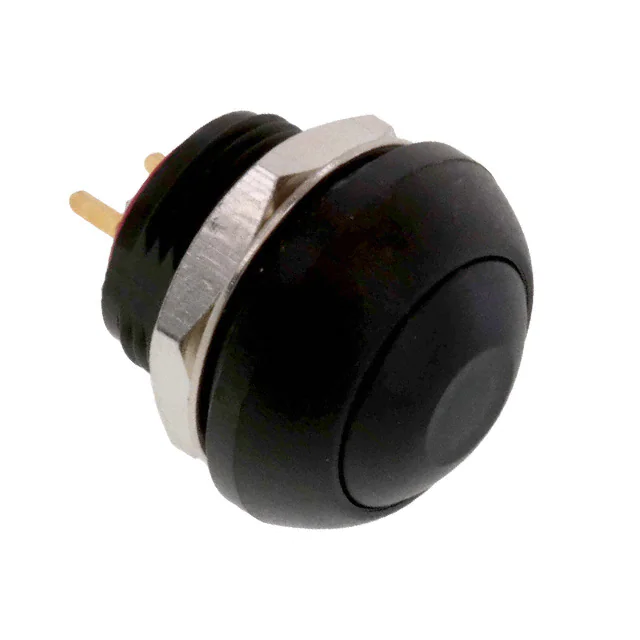

PB6B2FM2M4CAL00SWITCH PUSH SPST-NO 125MA 125V |
4,863 |
|
Datasheet | PB6 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Black | - | - | PC Pin | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|

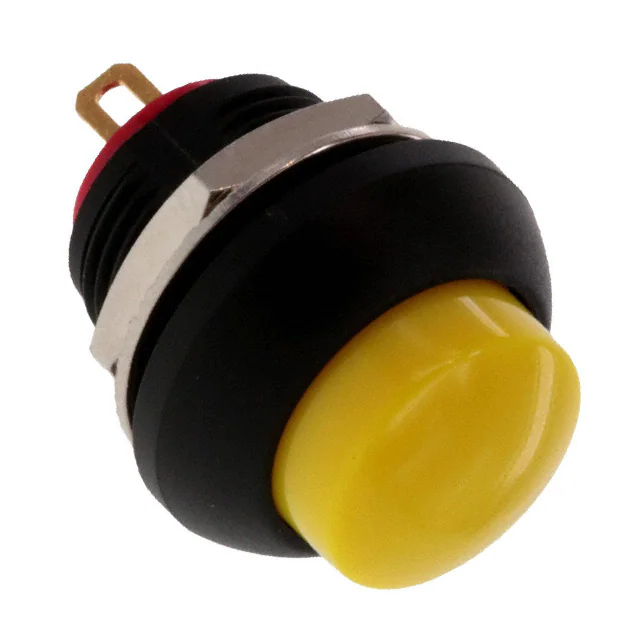

PB7B2HS5M1CAL00SWITCH PUSH SPST-NC 125MA 125V |
1,936 |
|
Datasheet | PB7 | Tray | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Yellow | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|

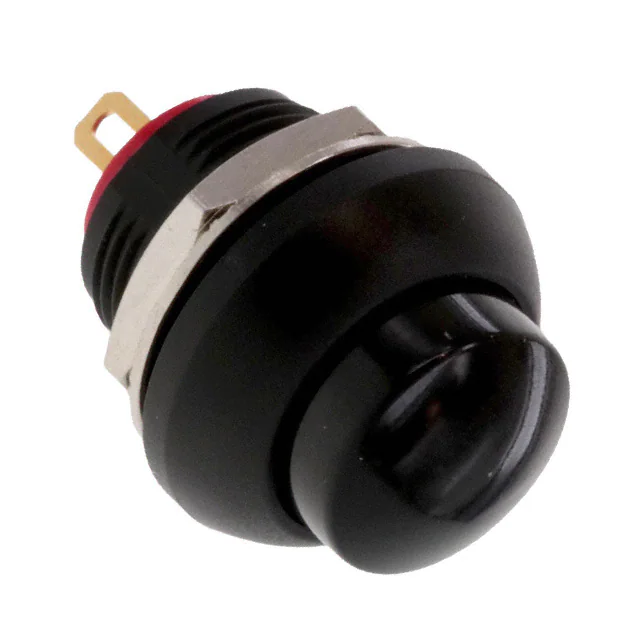

PB7B2HS2M1CAL00SWITCH PUSH SPST-NC 125MA 125V |
100 |
|
Datasheet | PB7 | Tray | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
PB6B2HS7M3CAL00SWITCH PUSH SPST-NO 125MA 125V |
3,076 |
|
Datasheet | PB6 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Blue | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
