Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AV1911EA24Q04SWITCH PUSHBUTTON SPDT 3A 250V |
4,636 |
|
Datasheet | AV19 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
AV1911EG24Q04SWITCH PUSHBUTTON SPDT 3A 250V |
4,116 |
|
Datasheet | AV19 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Red/Yellow | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
AV1910RB24Q04SWITCH PUSHBUTTON SPDT 3A 250V |
1,674 |
|
- |
AV19 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue/Red | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Fixed LED Ring | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
AV1910RG24Q04SWITCH PUSHBUTTON SPDT 3A 250V |
3,022 |
|
- |
AV19 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Red/Yellow | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Fixed LED Ring | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
AV1910EB24Q04SWITCH PUSHBUTTON SPDT 3A 250V |
1,087 |
|
Datasheet | AV19 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue/Red | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
AV1910EA24Q04SWITCH PUSHBUTTON SPDT 3A 250V |
3,370 |
|
Datasheet | AV19 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
AV1910EG24Q04SWITCH PUSHBUTTON SPDT 3A 250V |
4,589 |
|
Datasheet | AV19 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Red/Yellow | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
TPD21RGPC0SWITCH PUSHBUTTON DPDT 0.4VA 20V |
2,391 |
|
Datasheet | TP | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|

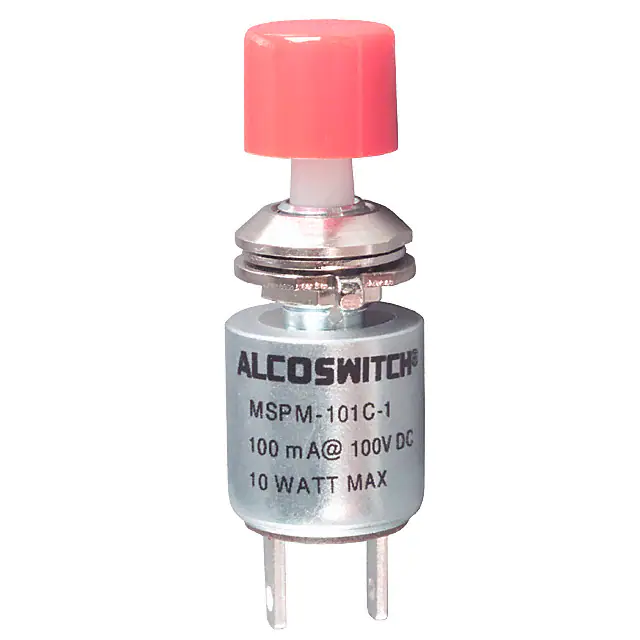

MSPM101C1SWITCH PUSHBUTTON SPST-NO 100MA |
4,941 |
|
Datasheet | MSPM | Bulk | Obsolete | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 50 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -10°C ~ 80°C |
|
AV2210E124R04SWITCH PUSHBUTTON SPDT 0.4VA 20V |
3,209 |
|
Datasheet | AV22 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button, Flush | No Marking | Silver | LED, White | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
